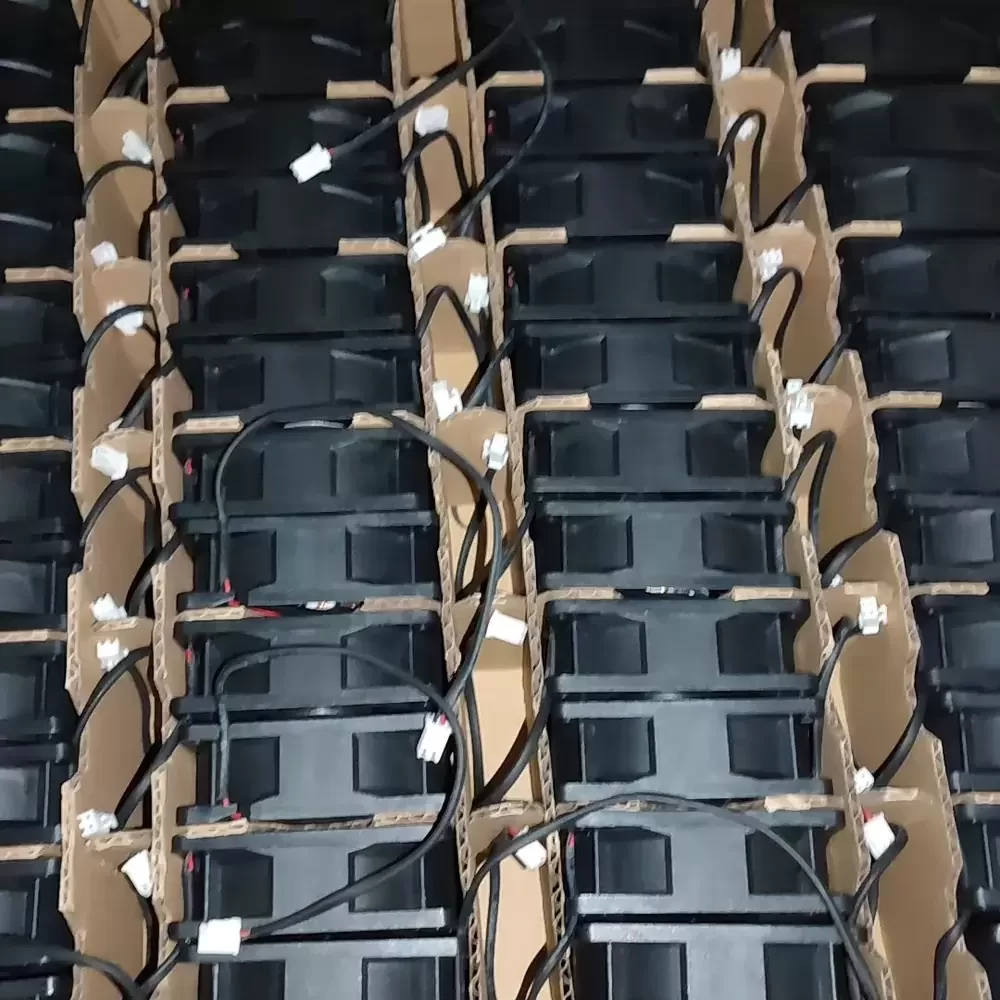

PVA070G12N-A16-AE Foxconn 12VDC 0.18A 70x70x25mm Cooling Fan

Description

Foxconn PVA070G12N-A16-AE 70 x 70 x 25 mm 12 VDC 0.18 A 20 CFM axial cooling fan is a high-performance thermal management component. The unit is constructed with a PBT plastic frame and impeller, utilizing a hydraulic bearing system to achieve a rotational speed of 3000 RPM. It features a 2-wire lead interface for direct DC power connection. The mechanical design incorporates a standard four-hole flange mount for secure attachment to compact enclosures, while the internal motor is optimized for a noise output of 28 dBA.

PVA070G12N-A16-AE Specifications
Model: PVA070G12N-A16-AE
Brand: Foxconn
Category: DC Axial Fan
Dimensions: 70 x 70 x 25 mm
Voltage: 12 VDC
Operating Voltage Range: 10.8 to 13.2 VDC
Current: 0.18 A
Power: 2.16 W
Speed: 3000 RPM
Airflow: 20 CFM
Static Pressure: 0.15 in-H2O
Noise Level: 28 dBA
Bearing Type: Hydraulic Bearing
Interface: 2-wire
Material: PBT Plastic (UL 94V-0)
Life Expectancy: 80,000 hours
Weight: 45 g
Operating Temperature: -10 to 70 °C
Storage Temperature: -40 to 75 °C

PVA070G12N-A16-AE Applications
Primary applications include integration into server chassis, desktop computer enclosures, and switch-mode power supply units. Deployed within industrial control panels, telecommunications equipment, and small-scale electronic cabinets to provide active thermal dissipation for internal components.
