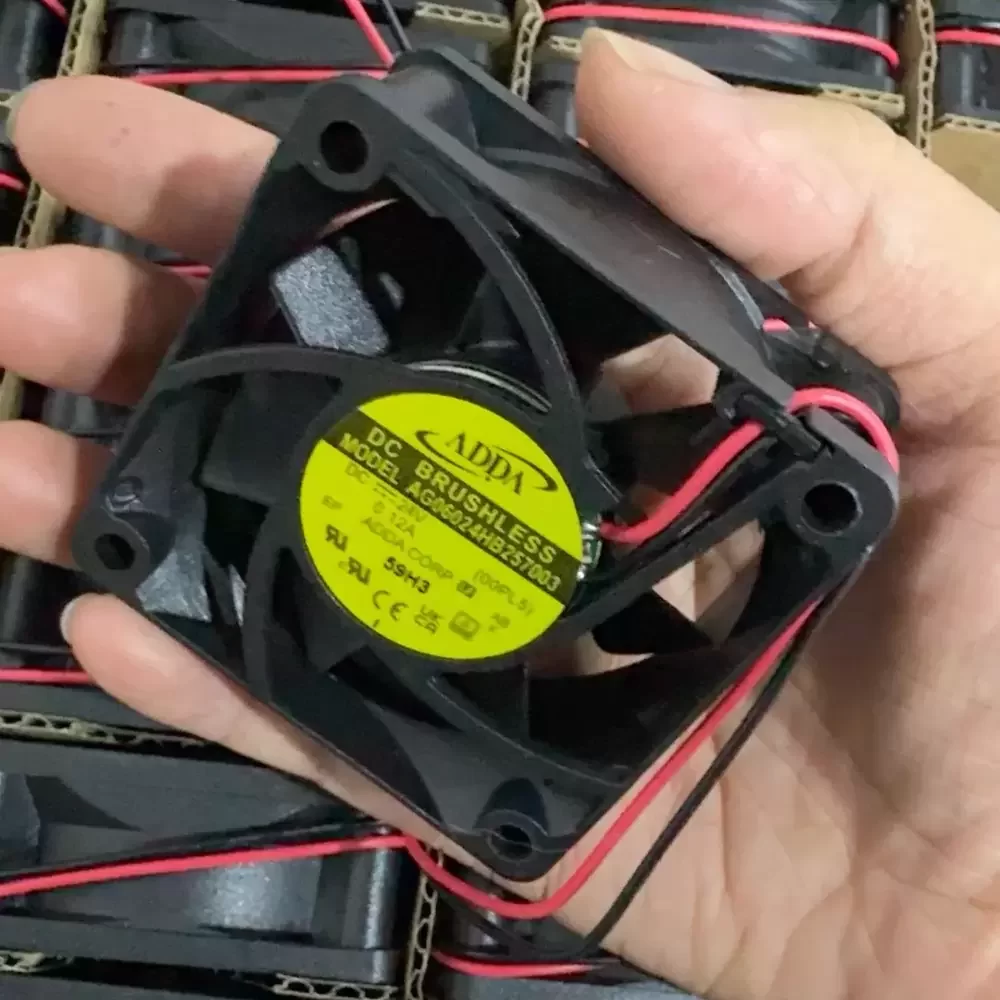

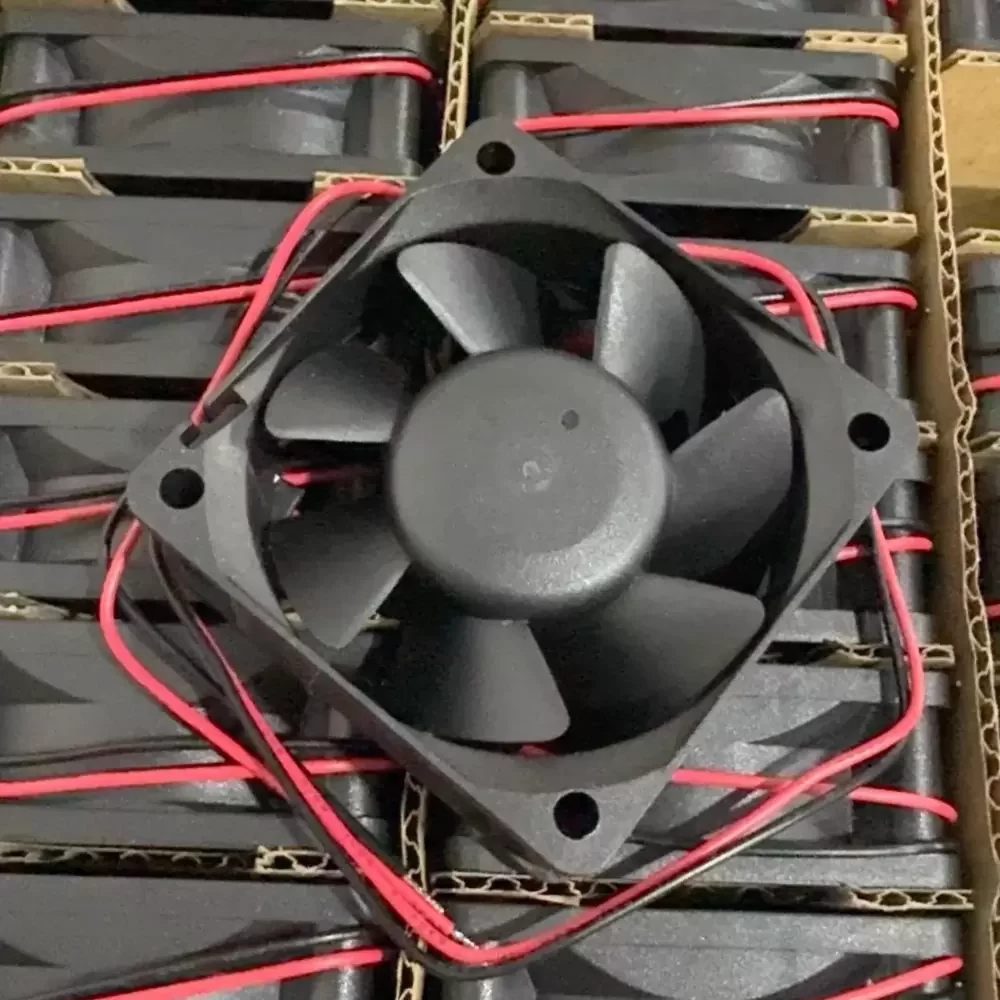

AG06024HB257003 ADDA 24V 0.12A 60x60x25mm DC Axial Fan

Description

ADDA AG06024HB257003 is a 60 x 60 x 25 mm DC axial fan operating at a nominal 24 VDC with a rated current of 0.12 A. The unit features a dual ball bearing system and a high-speed impeller design capable of delivering 28.545 CFM airflow and high static pressure. Constructed with a UL 94V-0 reinforced PBT plastic frame and blades, it incorporates a 3-wire interface providing a frequency generator (FG) signal for speed monitoring. The internal brushless motor includes polarity protection and auto-restart functionality.

AG06024HB257003 Specifications
Model: AG06024HB257003
Brand: ADDA
Frame Size: 60 x 60 x 25 mm
Voltage: 24 VDC
Current: 0.12 A
Power: 2.88 W
Speed: 5300 RPM
Airflow: 28.545 CFM
Noise Level: 39.1 dB(A)
Bearing Type: Dual Ball Bearing
Interface: 3-wire
Signal Output: FG (Tachometer)
Material: PBT Plastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Life Expectancy: 70,000 hours at 40 °C
Weight: 62 g
Safety Approvals: UL, CUL, TUV, CE

AG06024HB257003 Applications
Primary applications include integration into industrial server chassis, KEB frequency inverters, and CNC machine control cabinets. Deployed within telecommunications switching power supplies and automated laboratory instruments requiring high-static pressure thermal management.
