Description
The Ziehl-Abegg FB035-4EK.2C.V4P is a high-efficiency AC axial fan designed for robust industrial ventilation and thermal management applications. Engineered with Ziehl-Abegg’s signature external rotor motor technology, this unit features aerodynamically optimized sheet steel blades directly integrated onto the rotor, ensuring superior structural rigidity and rotational balance. The motor design minimizes thermal impedance while delivering consistent torque across the operating range. Built to withstand harsh environments, the fan includes advanced ingress protection against dust and moisture, making it suitable for continuous duty cycles. Its acoustic signature is dampened through precise blade geometry, reducing turbulence-induced noise while maintaining high volumetric flow rates essential for critical cooling systems.

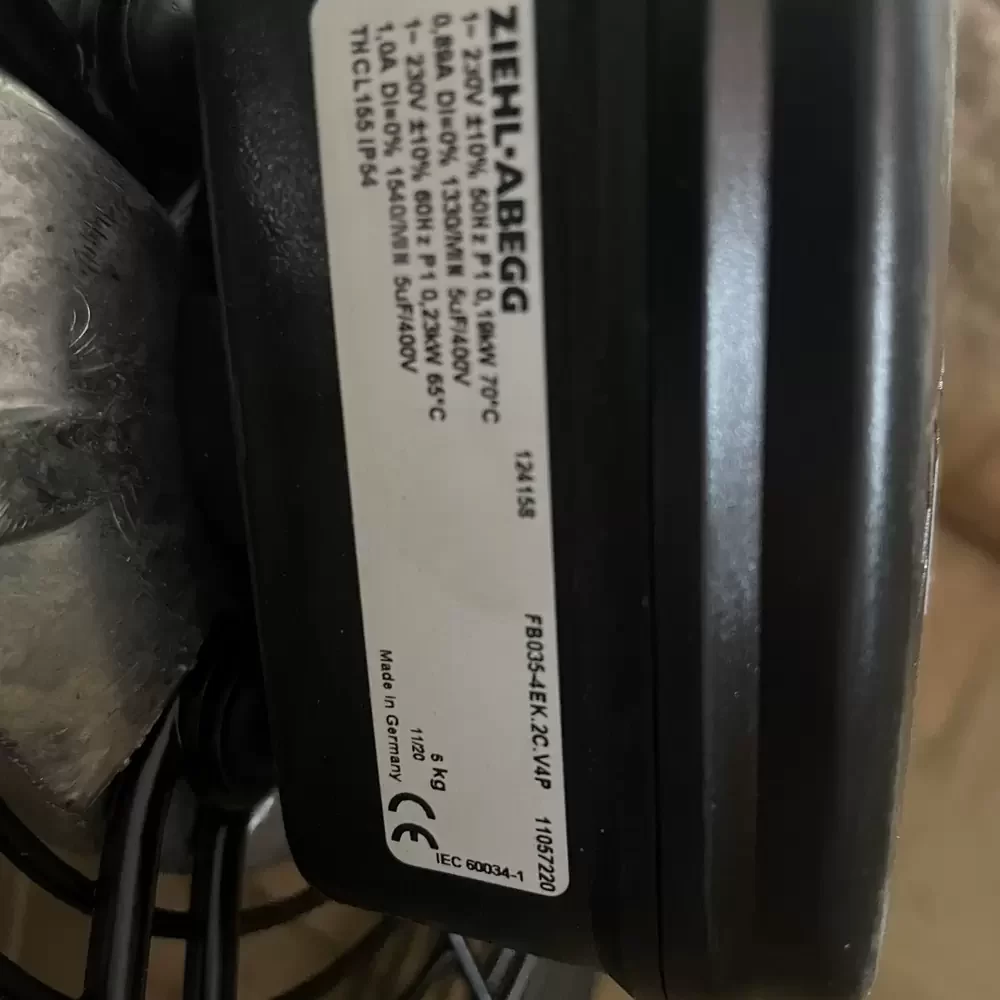

Model Number: FB035-4EK.2C.V4P
Brand: Ziehl-Abegg
Product Type: Axial Fan
Motor Technology: AC External Rotor Motor
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Phase: 1~
Voltage Range: 207 – 253 VAC
Rated Current: 0.73 A
Power Input: 165 W
Rated Speed: 1360 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 1942 CFM (3300 m³/h / 55 m³/min)
Max. Static Pressure: 0.28 inH₂O (70 Pa)
Impeller Diameter: 350mm
Number of Blades: 4
Blade Material: Sheet Steel, Coated Black
Guard Grille Material: Steel, Phosphated and Coated Black Plastic
Ingress Protection: IP54
Insulation Class: F
Motor Protection: Thermal Overload Protector (TOP) wired internally
Capacitor: 4 µF / 400 VDB
Operating Temperature: -25°C to +65°C
Mounting Orientation: Any
Weight: 5.2 kg
Life Expectancy: > 40,000 Hours (L10)
Certifications: CE, UL, CCC
Rotation Direction: Clockwise (viewed toward rotor)
The FB035-4EK.2C.V4P is extensively deployed in commercial refrigeration units, air-cooled condensers, and evaporators where reliable heat dissipation is paramount. Facility managers and OEMs frequently utilize the FB035-4EK.2C.V4P in agricultural ventilation systems, heater blowers, and general HVAC air handling units due to its rugged construction and moisture resistance. The fan is also ideal for cooling transformer arrays and industrial machinery cabinets, ensuring that the FB035-4EK.2C.V4P maintains optimal operating temperatures for sensitive electronic components in demanding factory environments.
