Description

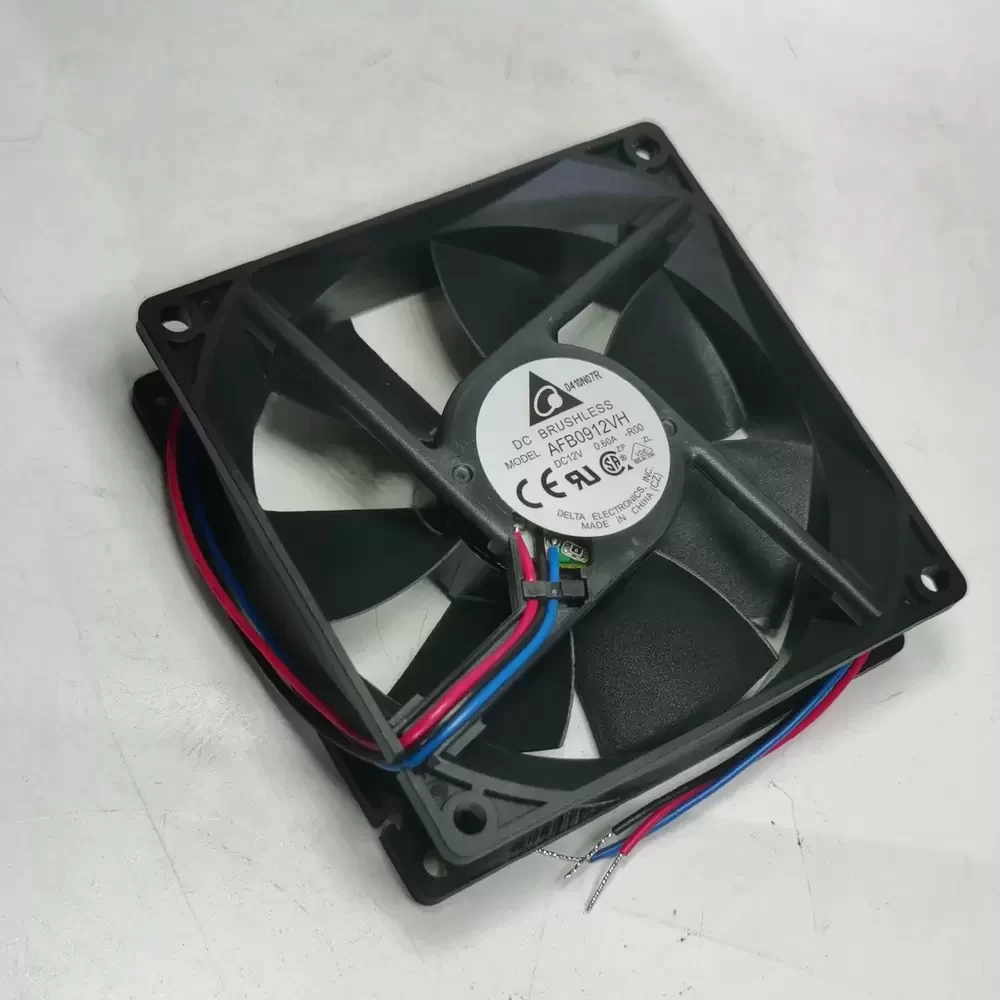

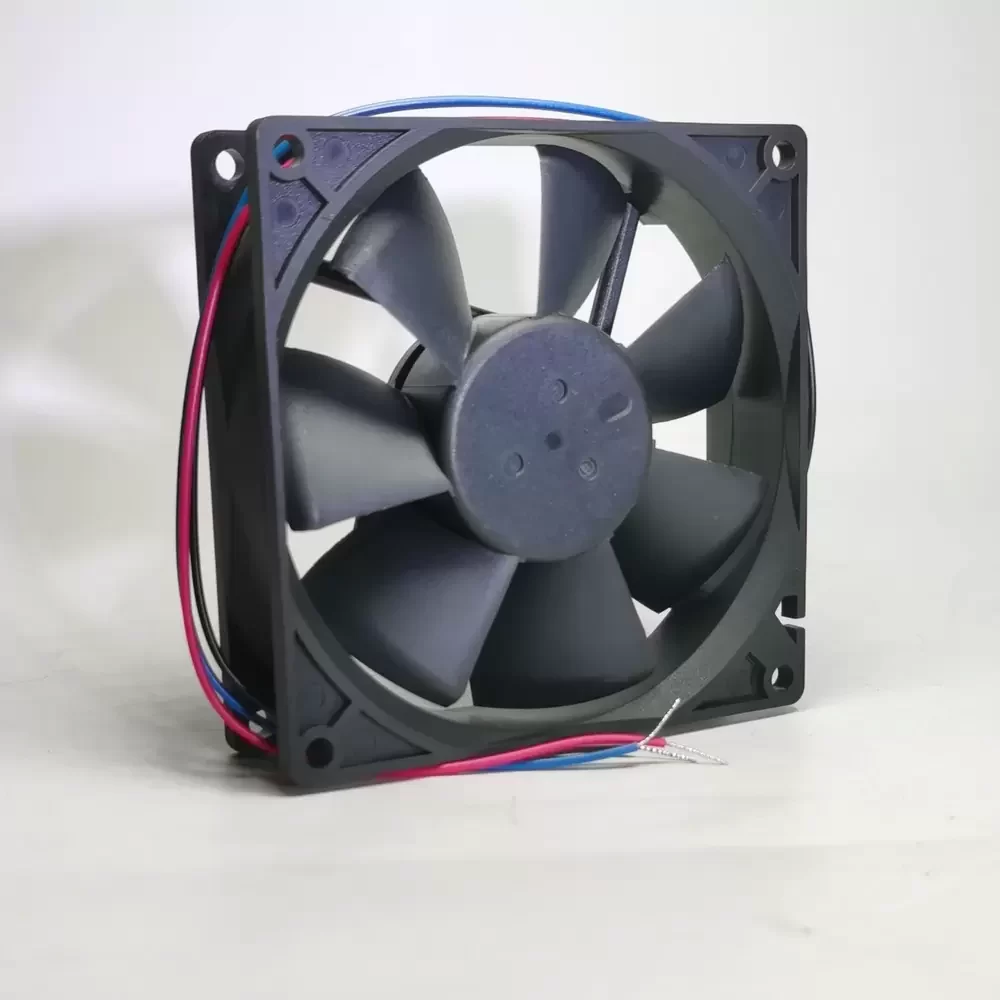

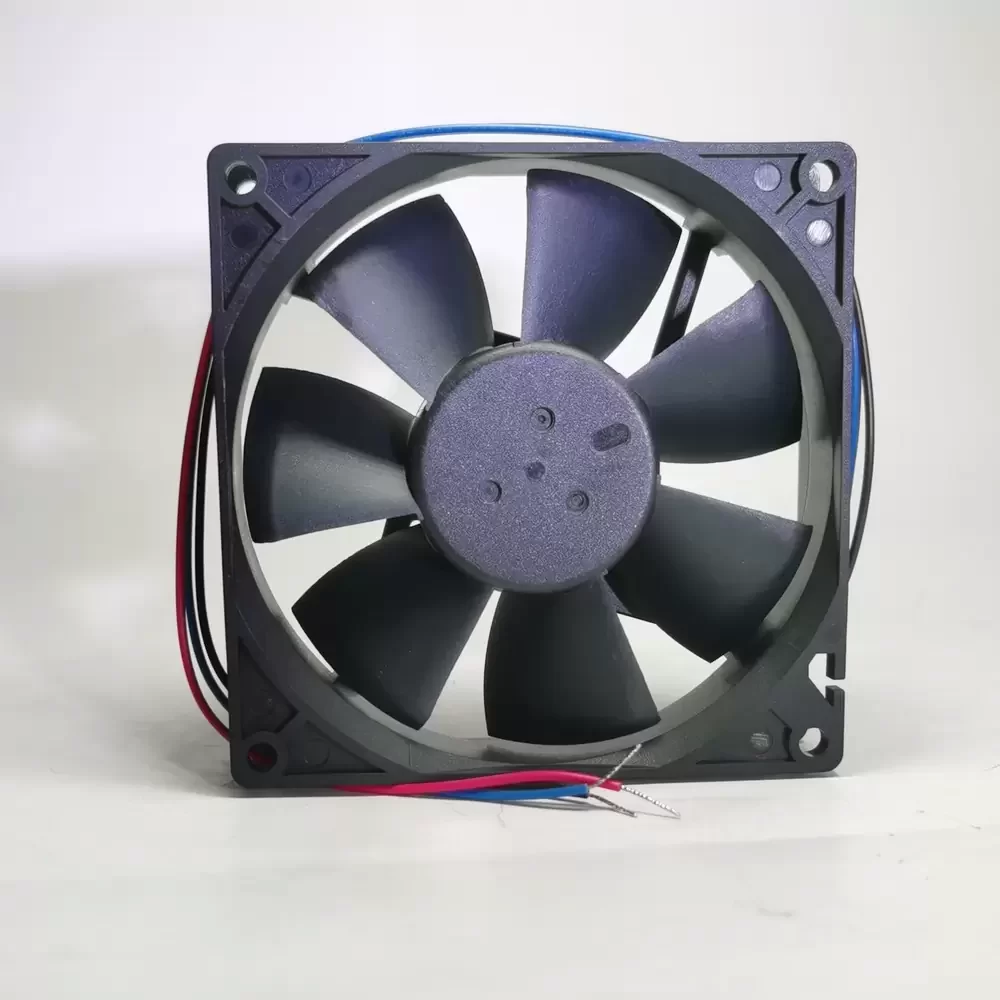

The Delta AFB0912VH-R00 is a high-performance DC Axial Fan engineered for critical thermal management in industrial environments. Utilizing a robust 2-Ball Bearing architecture, this unit ensures minimized friction and extended operational longevity under continuous load conditions. The aerodynamic impeller design optimizes airflow efficiency while maintaining structural rigidity, effectively reducing thermal impedance within high-density enclosures. Featuring a Rotation Detector (R00) sensor output, the fan provides real-time status monitoring, essential for systems requiring active feedback loops and fault detection to prevent thermal runaway.
Model Number: AFB0912VH-R00
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.60 A
Power Input: 7.20 W
Rated Speed: 3800 RPM
Bearing Type: 2-Ball Bearing
Max. Air Flow: 67.80 CFM (115.19 m³/h / 1.92 m³/min)
Max. Static Pressure: 7.67 mmH₂O (75.22 Pa / 0.30 inH₂O)
Dimensions: 92 x 92 x 25.4 mm
Weight: 99 g
Life Expectancy: 70,000 Hours (40°C)
Noise Level: 45.0 dB-A
Sensor/Output: R00 (Rotation Detector / Locked Rotor Sensor)
Housing Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Ingress Protection: IP Rating Optional (Standard IP20)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Termination: Lead Wires (UL 1007 AWG24)
Wire Configuration: Red (+), Black (-), Blue (R00)
Safety Certifications: UL, cUL, TUV, VDE, CE
The AFB0912VH-R00 is frequently deployed in precision cooling applications such as server rack ventilation, telecommunications base stations, and industrial automation control panels. Its high static pressure capabilities make the AFB0912VH-R00 ideal for forcing air through dense component arrays and heat sinks found in medical instrumentation and power supply units, ensuring reliable thermal regulation in mission-critical hardware.
