Description

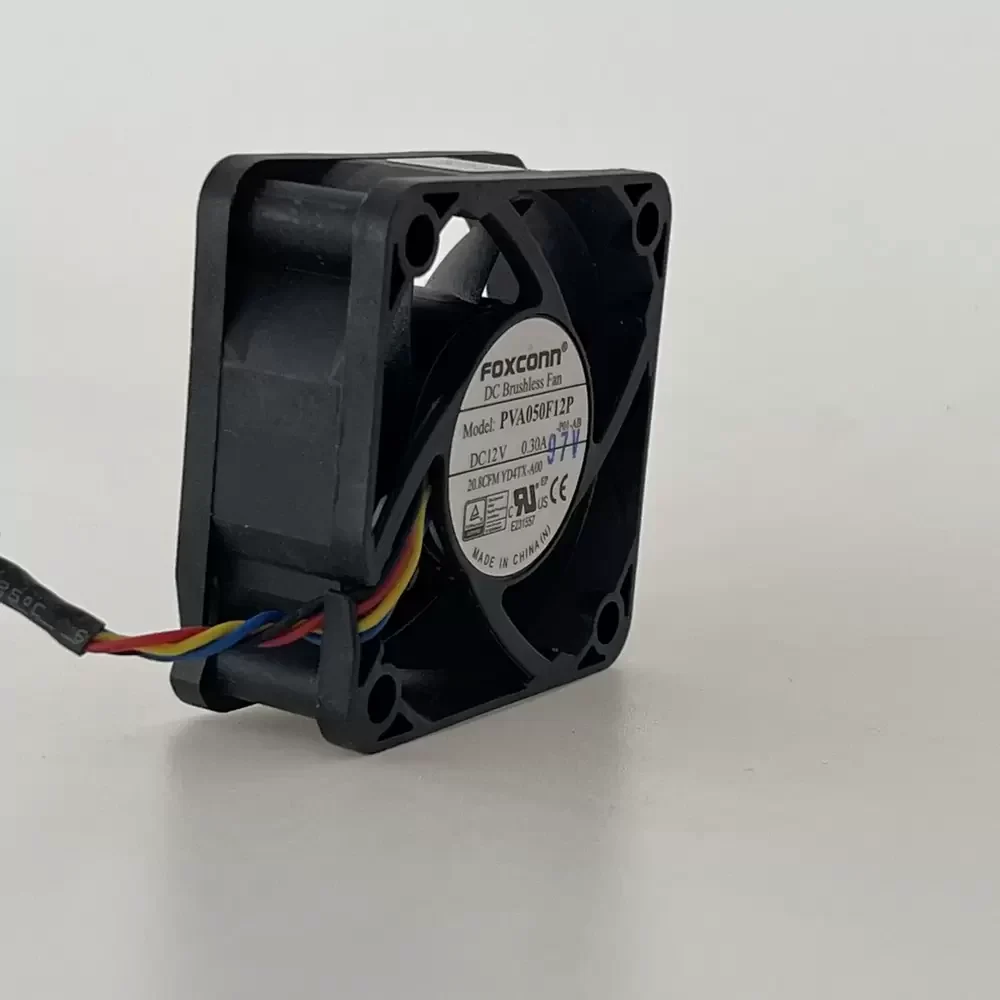

The Foxconn PVA050F12P-P01-AB is a high-efficiency DC Axial Fan engineered specifically for the rigorous thermal demands of enterprise server environments. Built with a precision Hydro Dynamic Bearing system, this unit ensures long-term reliability and reduced frictional wear, maintaining structural rigidity even at high rotational velocities. The aerodynamic impeller geometry is optimized to deliver substantial static pressure, effectively overcoming the high thermal impedance found in densely populated electronic chassis. Featuring 4-wire PWM control, the fan allows for dynamic speed modulation, enabling the system to adjust cooling performance in real-time response to thermal loads, thereby optimizing energy consumption and acoustic output.
Model Number: PVA050F12P-P01-AB
Brand: Foxconn
Product Type: DC Axial Fan

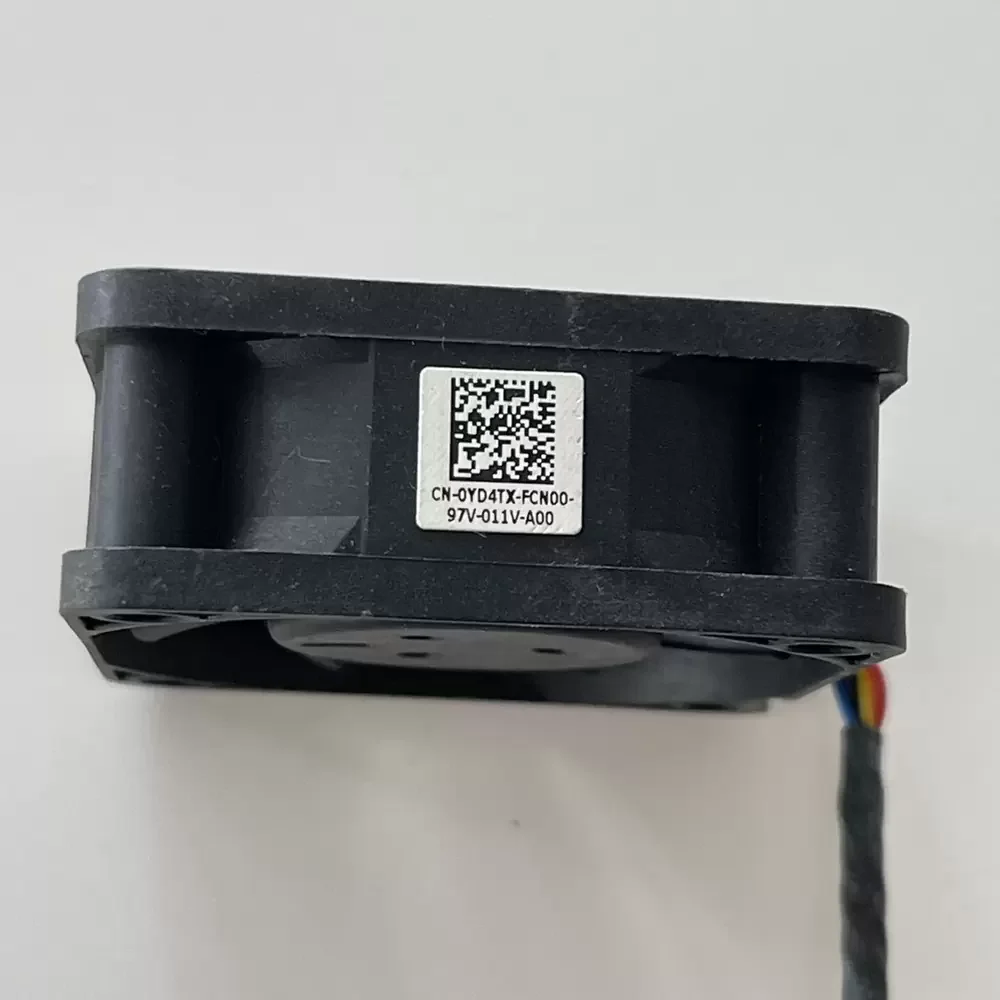

OEM Part Number: 0YD4TX (Dell)
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.30 A
Power Input: 3.60 W
Dimensions: 50 x 50 x 20 mm
Bearing Type: Hydro Dynamic Bearing
Max. Air Flow: 18.5 CFM (Approximate)
Max. Static Pressure: High Static Pressure Profile

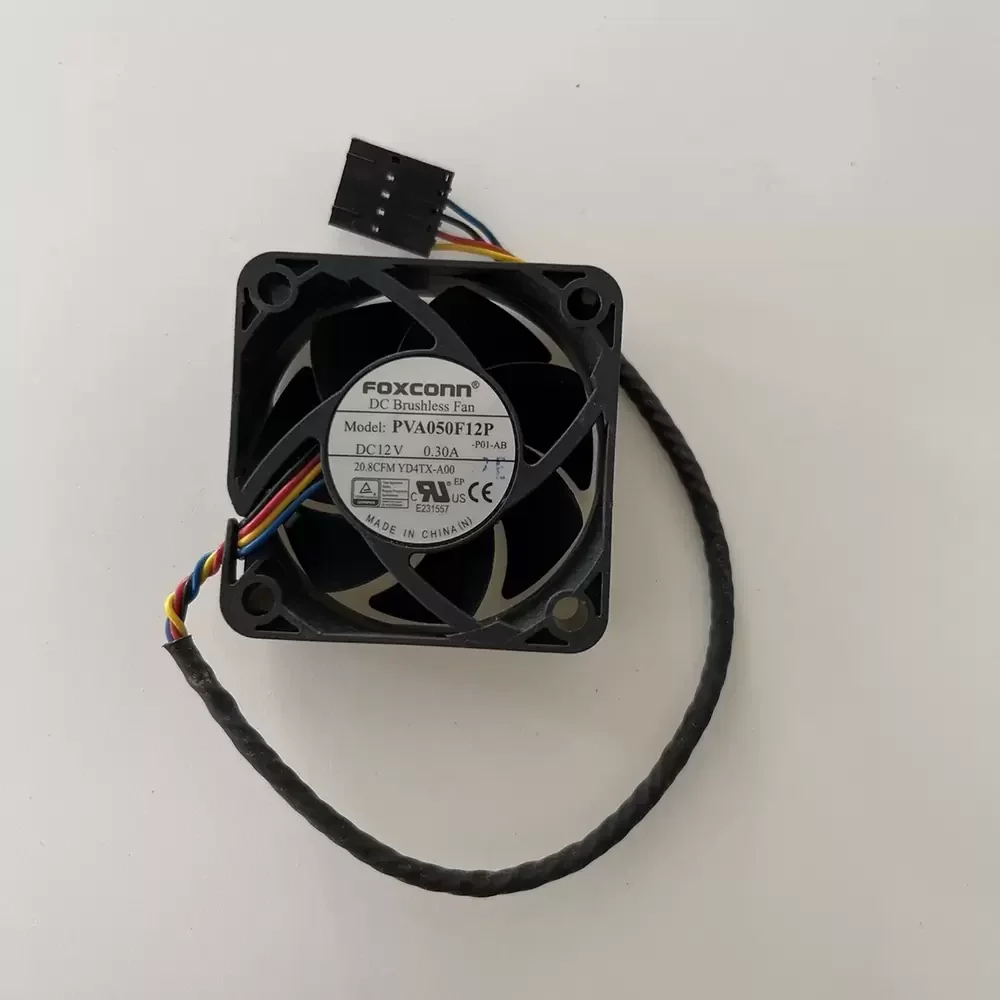

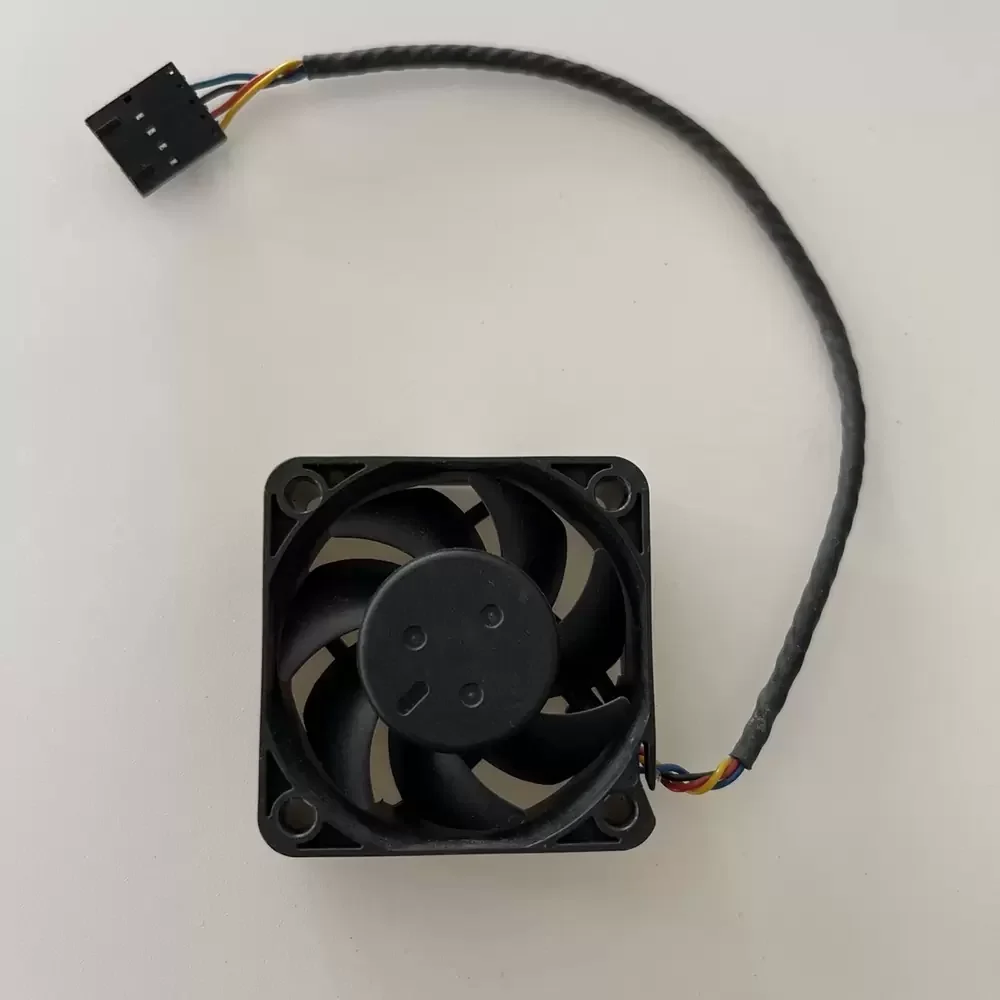

Termination: 4-Wire / 5-Pin Dell Proprietary Connector
Speed Control: PWM (Pulse Width Modulation)
Wire Assignment: Black (-), Red (+), White (Tach), Blue (PWM)
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Mounting Orientation: Any
Ingress Protection: IP4X
Certifications: CE, TUV, UL
The PVA050F12P-P01-AB is predominantly utilized in high-density computing hardware, serving as a direct replacement cooling solution for Dell PowerEdge servers and associated storage arrays. Its compact 50mm footprint makes the PVA050F12P-P01-AB ideal for 1U and 2U rackmount configurations, providing critical airflow to RAID cards, memory banks, and auxiliary chipsets where thermal dissipation is paramount for system stability.
