Description

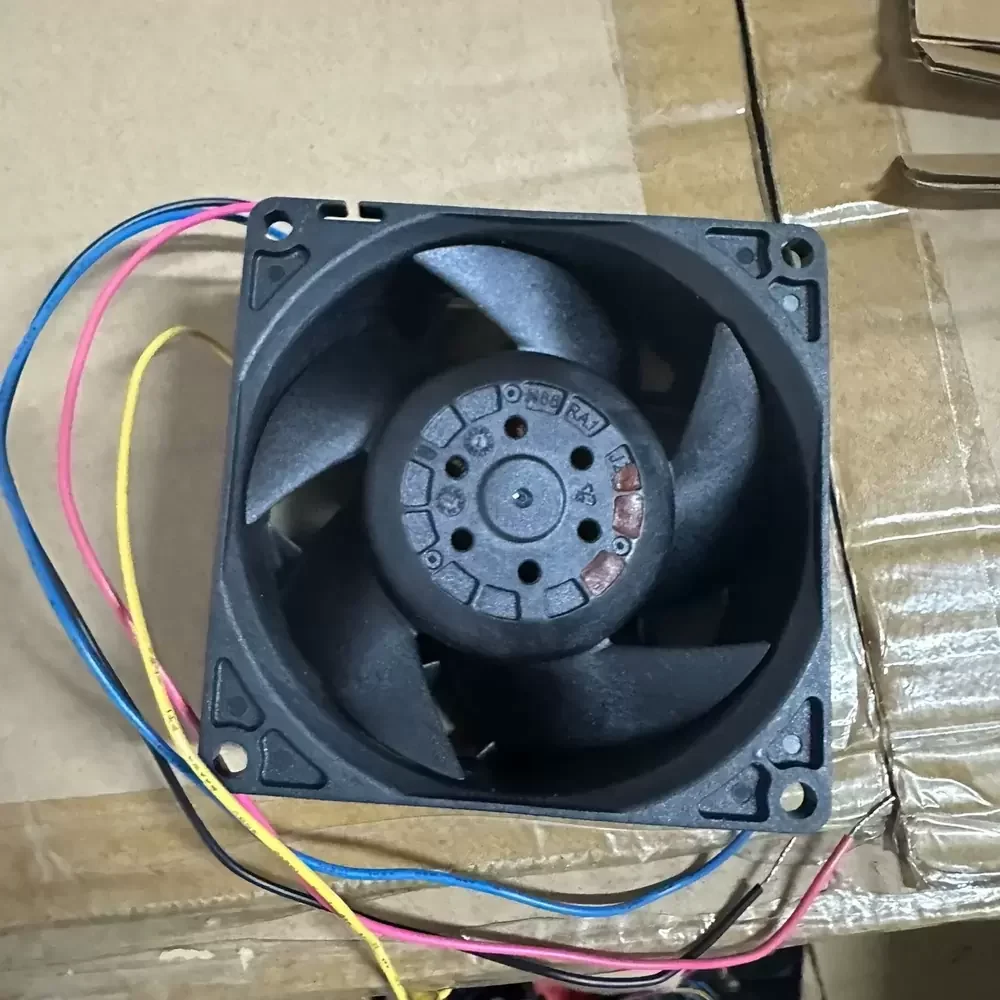

The AVC DYPD0838B2SY001 is a high-static pressure Axial Fan engineered for mission-critical thermal management in dense server environments and industrial applications. Utilizing a robust Dual Ball Bearing architecture, this unit ensures exceptional operational stability and extended service life under continuous high-load conditions. The 12VDC motor is calibrated for extreme performance, drawing 5.1A to generate substantial airflow and overcome significant system impedance. Its aerodynamic impeller design optimizes air intake efficiency while minimizing turbulence-induced noise, making it an ideal solution for overcoming high thermal impedance in restricted chassis spaces. The structural rigidity of the frame ensures reliability during rapid speed transitions controlled via PWM modulation, maintaining consistent cooling performance.
Model Number: DYPD0838B2SY001
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 5.10 A
Power Consumption: 61.2 W
Rated Speed: 11000 RPM (Nominal)
Bearing Type: Dual Ball Bearing
Max. Air Flow: 165.0 CFM (280.3 m³/h)
Max. Static Pressure: 45.2 mmH₂O (443 Pa / 1.78 inH₂O)
Dimensions: 80 x 80 x 38 mm
Weight: 215 g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM (Pulse Width Modulation)
Signal Output: Tachometer (Frequency Generator)
Noise Level: 68.5 dB(A)
Housing Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Termination: 4-Wire Lead with Connector
Wire Assignment: Red (+), Black (-), Yellow (Sensor), Blue (PWM)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP40
Motor Protection: Locked Rotor Protection; Reverse Polarity Protection
Certifications: CE, TUV, UL, RoHS
The DYPD0838B2SY001 is primarily deployed in enterprise-grade server racks and blade enclosures where high-density component cooling is mandatory. Its high-pressure output makes it specifically suitable for forcing air through restrictive heatsinks found in CPU cooling modules and redundant power supplies. Additionally, the DYPD0838B2SY001 is utilized in telecommunications base stations, ASIC mining rigs, and industrial automation equipment requiring rapid heat evacuation to prevent thermal throttling. The robust design allows the DYPD0838B2SY001 to operate reliably in 24/7 infrastructure environments.
