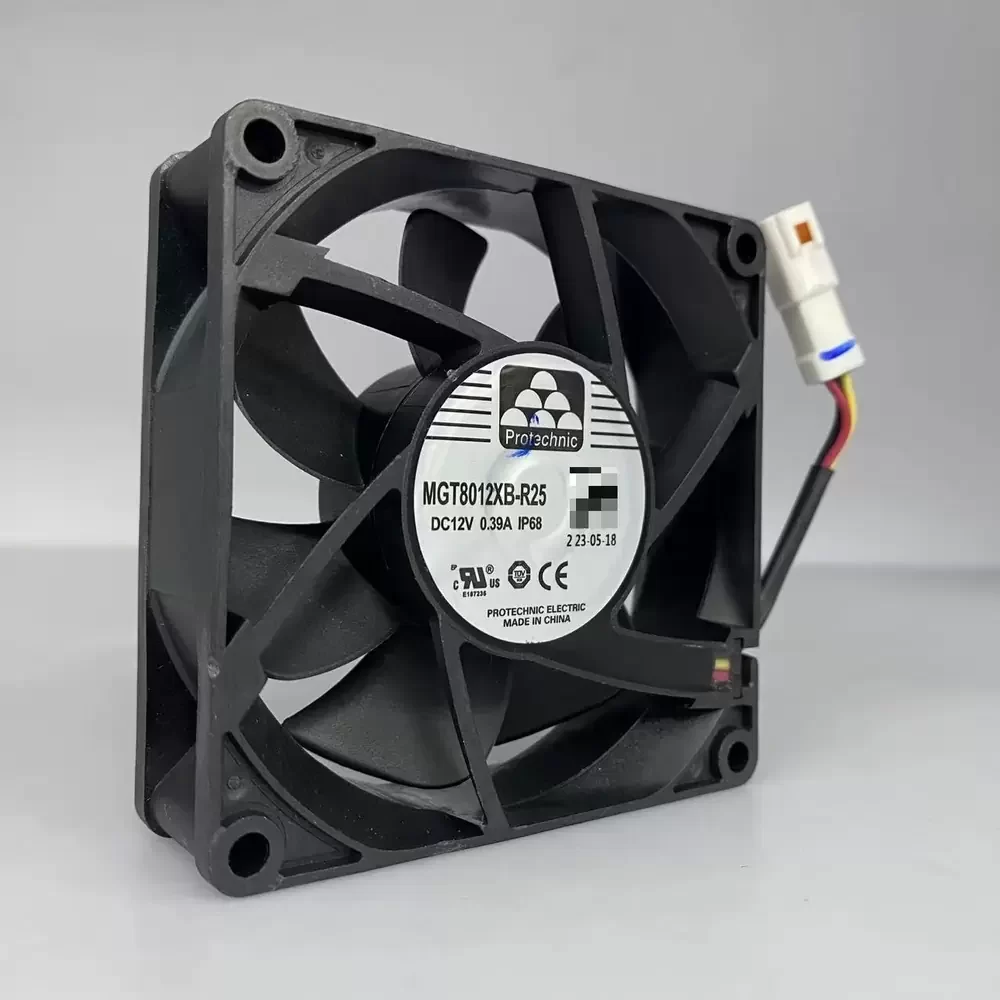

MGT8012XB-R25 Protechnic 12VDC 0.39A 80x80x25mm IP68 Fan

Description

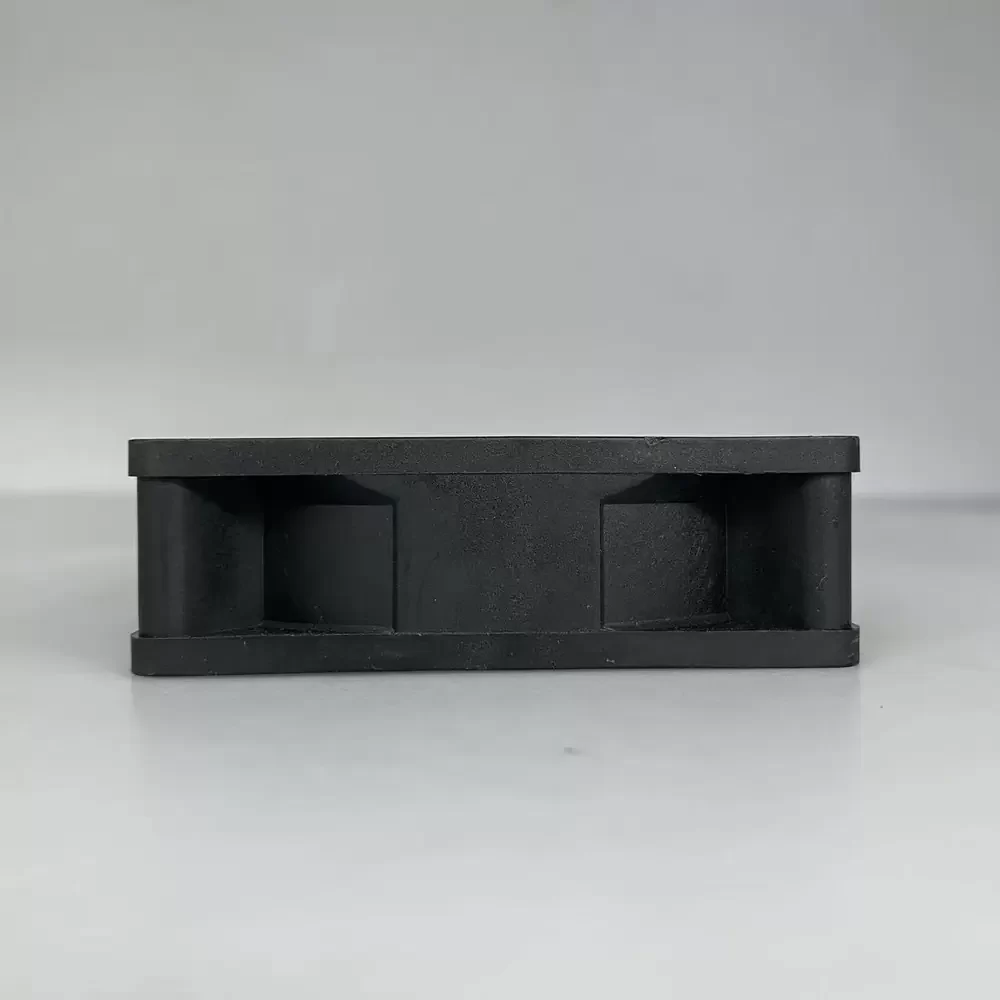

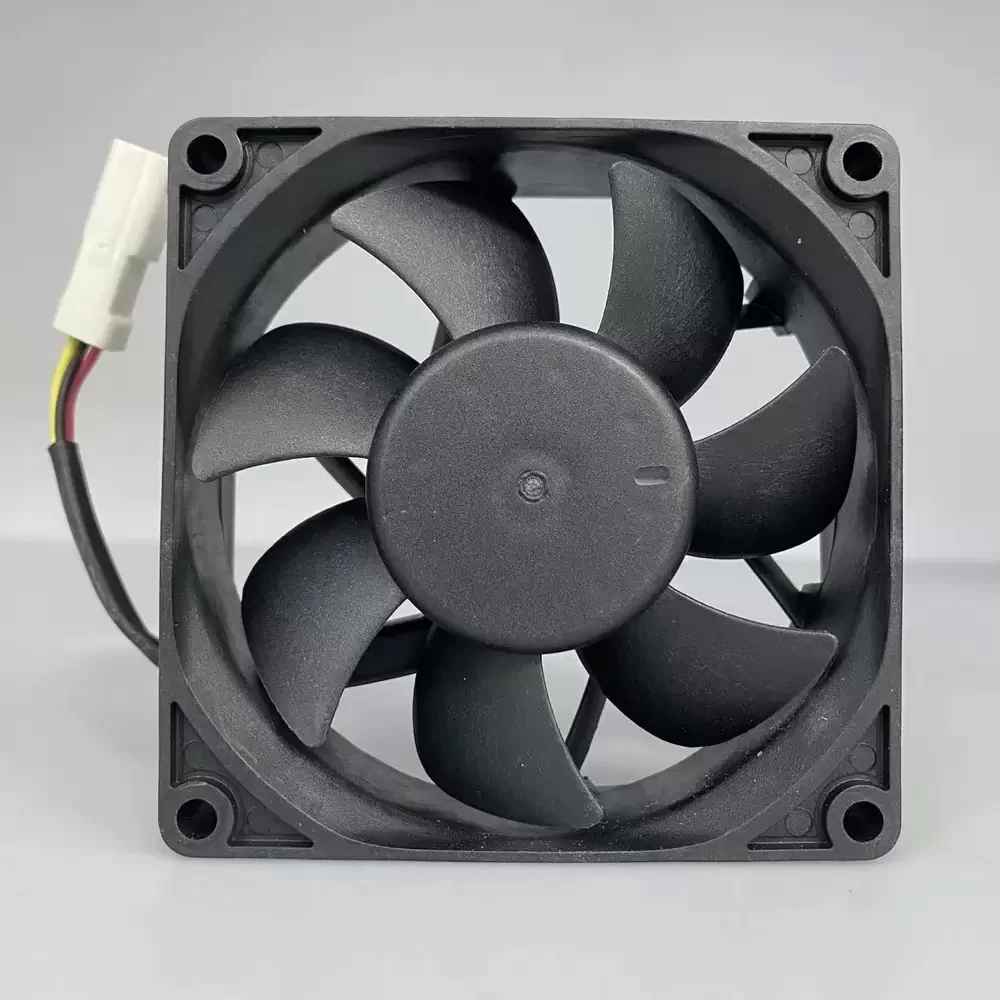

Protechnic MGT8012XB-R25 is an 80 x 80 x 25 mm axial fan operating at 12 VDC with a 0.39 A current draw. It features a dual ball bearing system and a PBT thermoplastic housing rated to UL 94V-0 standards. The unit is fully encapsulated to achieve an IP 68 ingress protection rating against water and dust. The internal motor utilizes a brushless DC design with a 3-wire interface providing a frequency generator (FG) signal for speed monitoring.

MGT8012XB-R25 Specifications
Model: MGT8012XB-R25
Brand: Protechnic (Magic)
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage: 7.0 to 13.8 VDC
Rated Current: 0.39 A
Input Power: 4.68 W
Bearing Type: Dual Ball Bearing
Ingress Protection: IP 68
Interface: 3-wire
Signal Output: Tachometer / FG Signal
Fan Speed: 3600 RPM
Air Flow: 49.15 CFM
Static Pressure: 5.85 mmAq
Noise Level: 44 dB(A)
Housing Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Life Expectancy: 70,000 hours at 40 °C
Weight: 114 g

MGT8012XB-R25 Applications
Primary applications include integration into outdoor telecommunications enclosures, industrial server rack cooling systems, and CNC machine control cabinets. Deployed within ruggedized power supply units and automated manufacturing equipment requiring high-reliability thermal management in high-moisture or dusty environments.
