Description

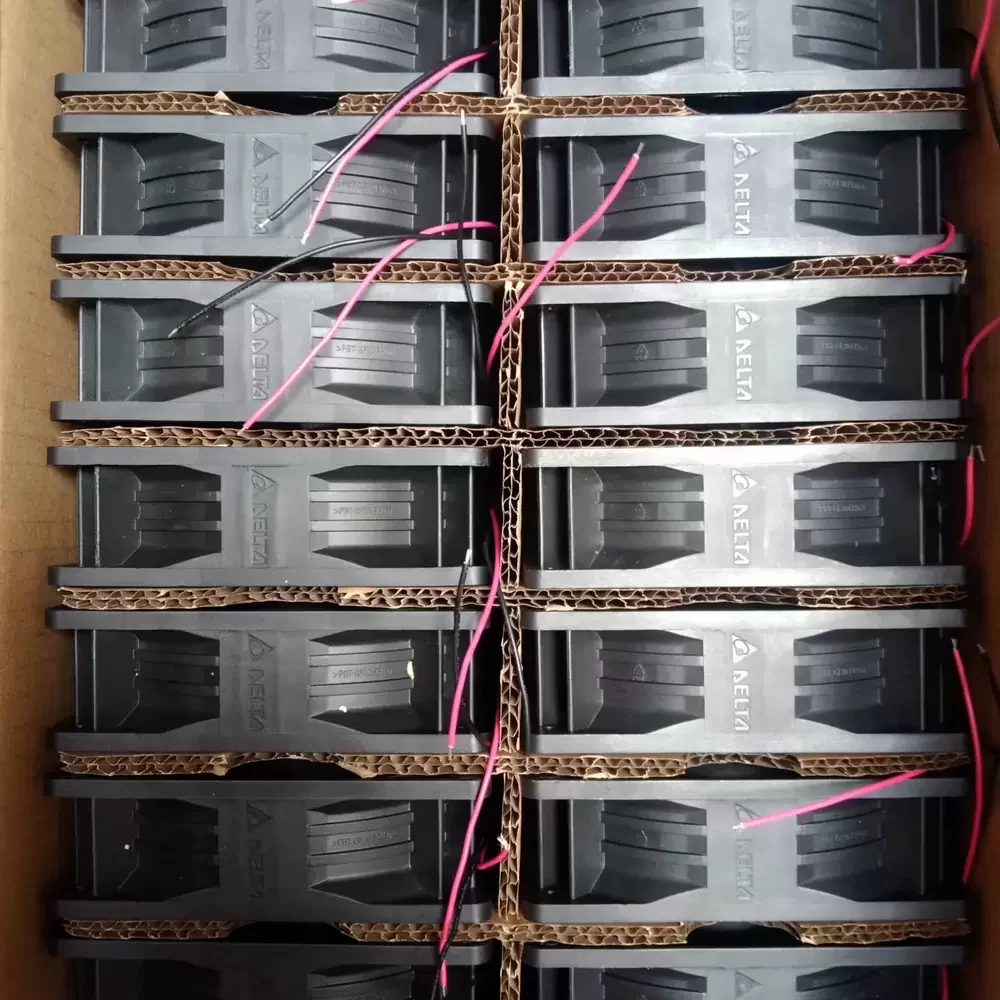

The Delta AFB1224EHE-C is a high-performance Axial Fan engineered for demanding thermal management applications requiring substantial airflow and static pressure. This unit utilizes a DC brushless motor architecture paired with a precision dual ball bearing system, ensuring exceptional longevity and stability under continuous operation. The aerodynamic design features an optimized impeller geometry constructed from reinforced thermoplastic PBT (UL94V-0), which minimizes turbulence while maximizing air throughput. With a robust structural rigidity and efficient thermal impedance management, the AFB1224EHE-C delivers reliable cooling performance in harsh industrial environments, making it a critical component for maintaining system integrity.
Model Number: AFB1224EHE-C
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24V DC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 1.05 A
Power Consumption: 25.20 W
Rated Speed: 4600 RPM
Max. Air Flow: 190.0 CFM (322.8 m³/h / 5.38 m³/min)
Max. Static Pressure: 14.30 mmH₂O (140.2 Pa / 0.56 inH₂O)
Noise Level: 58.5 dBA
Bearing Type: Dual Ball Bearing
Dimensions: 120x120x38mm
Weight: 256 g
Life Expectancy: 70,000 Hours at 40°C
Termination: 2-Wire (Lead Wires)
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Ingress Protection: IP20 (Standard)
Safety Certifications: UL, cUL, TUV, CE
The AFB1224EHE-C is specifically designed for high-load industrial applications such as variable frequency drive (VFD) inverters, server rack cooling, and telecommunications cabinets where heat dissipation is paramount. Its high static pressure capabilities allow the AFB1224EHE-C to effectively push air through dense obstructions like heat sinks and filter arrays found in CNC machinery and power supply units. Additionally, this model serves as a reliable replacement component for legacy cooling systems in automation controllers and medical instrumentation, ensuring continuous uptime for critical infrastructure.
