Description

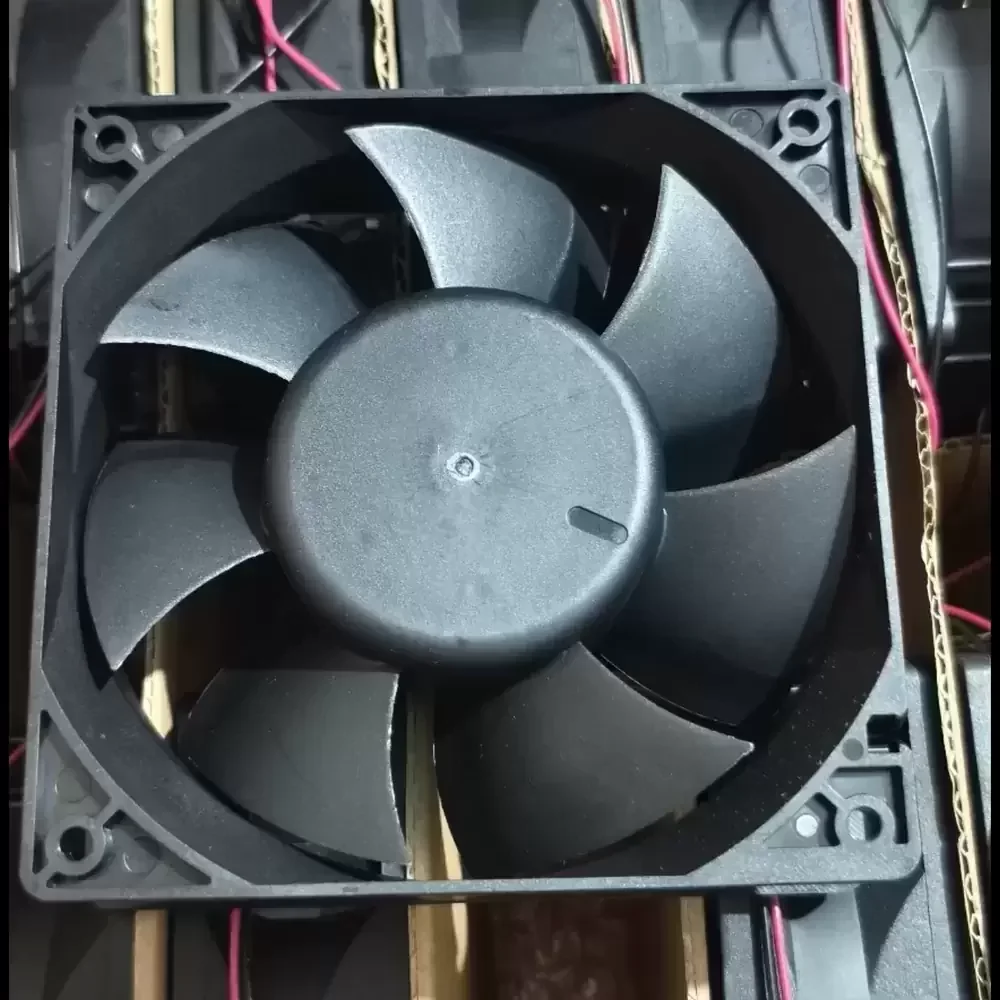

The Delta AFB1224SHE-H919 is a high-performance axial cooling fan engineered for demanding industrial environments requiring substantial volumetric airflow. Utilizing advanced DC motor technology and a robust dual ball bearing architecture, this unit ensures exceptional longevity and operational stability under continuous load. The aerodynamic impeller design minimizes turbulence while maximizing static pressure, effectively overcoming high thermal impedance in dense electronic enclosures. Its structural rigidity and precision balancing reduce vibration, making it an optimal solution for critical thermal management systems where reliability is paramount.
Model Number: AFB1224SHE-H919
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.75 A
Power Input: 18.00 W
Rated Speed: 3700 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 151.85 CFM (258.0 m³/h / 4.30 m³/min)
Max. Static Pressure: 14.50 mmH₂O (142.2 Pa / 0.57 inH₂O)
Dimensions: 120x120x38mm
Weight: 256 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 53.0 dBA
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Termination: Lead Wires with Connector
Safety Protection: Electronic Commutation, Locked Rotor Protection, Polarity Protection
Mounting Orientation: Any
Designed for high-static pressure environments, the AFB1224SHE-H919 is frequently deployed in variable frequency drive (VFD) inverters and industrial automation control cabinets. Its robust airflow capabilities make the AFB1224SHE-H919 ideal for server rack cooling, telecommunications base stations, and heavy-duty power supply units where heat dissipation is critical for component longevity. Additionally, this model serves effectively in CNC machinery and medical instrumentation requiring consistent thermal regulation.
