Description

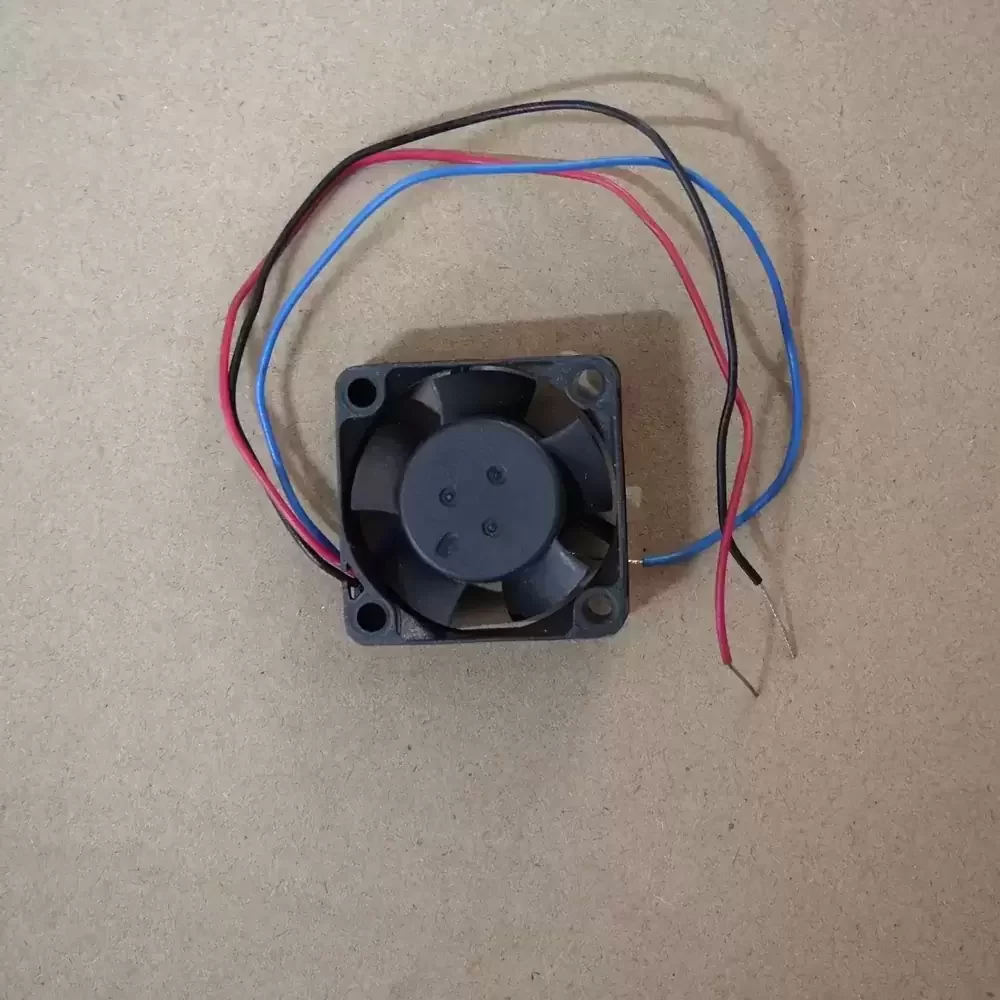

Delta ASB0305MA-CA8Z is a compact 30 x 30 x 10 mm brushless axial fan operating at a nominal 5 VDC with a rated current of 0.20 A and power consumption of 1.0 W. This tubeaxial cooling component features a high-reliability sleeve bearing system and a 3-wire interface providing a tachometer signal for precise rotational speed monitoring. The structural frame and impeller are constructed from UL 94V-0 rated thermoplastic, ensuring flame retardancy and structural integrity during continuous operation. It delivers an airflow of 3.4 CFM (0.095 m³/min) and a static pressure of 0.110 in H2O while maintaining a low acoustic profile of 21.0 dB-A.
ASB0305MA-CA8Z Specifications
Model Number: ASB0305MA-CA8Z
Brand: Delta Electronics
Category: DC Brushless Axial Fan
Dimensions: 30 x 30 x 10 mm
Rated Voltage: 5 VDC
Operating Voltage Range: 4.5 to 5.5 VDC
Rated Current: 0.11 A (0.20 A Max)
Rated Input Power: 0.55 W (1.0 W Max)
Rated Speed: 8000 RPM
Maximum Air Flow: 3.40 CFM (0.095 m³/min)
Maximum Static Pressure: 0.110 in H2O (2.80 mm H2O)
Noise Level: 21.0 dB-A
Bearing Type: Sleeve Bearing
Interface: 3-wire (Red: Positive, Black: Negative, Blue: Tachometer/Sensor)
Lead Wire Length: 270 mm
Material Frame: Plastic (UL 94V-0)
Material Impeller: Plastic (UL 94V-0)
Operating Temperature: -10 to 70 °C
Storage Temperature: -40 to 75 °C
Weight: 10.5 g
Safety Approvals: UL, CUR, TUV, CE
Features: Locked Rotor Sensor, Speed Sensor (Tach), Auto Restart
ASB0305MA-CA8Z Applications
Primary applications include integration into laptop internal cooling assemblies, compact network switch enclosures, and portable medical diagnostic equipment. Deployed within telecommunications base station modules, set-top boxes, and high-density power supply units to provide localized thermal management for sensitive microprocessors and power semiconductors.
