Description

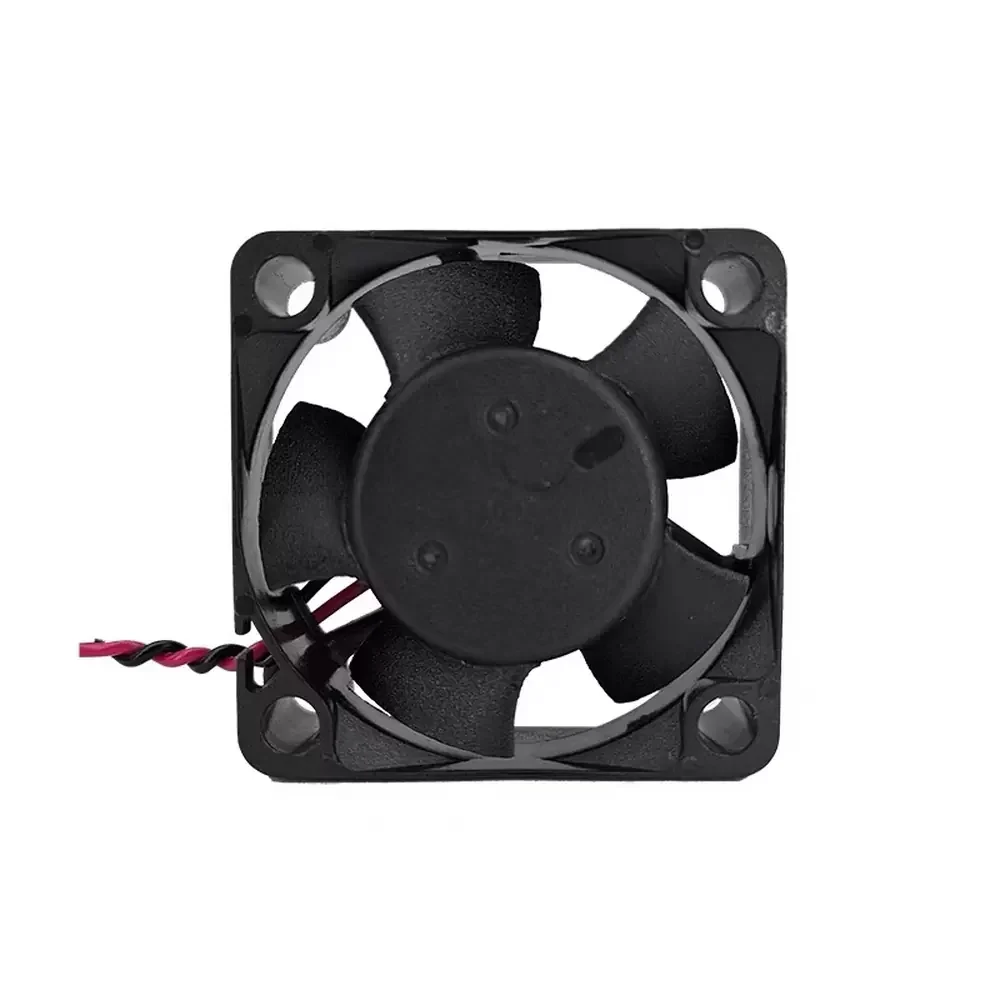

The Delta ASB0312HA-D is a precision-engineered axial fan designed for compact thermal management applications requiring high-density airflow in restricted spaces. Utilizing advanced DC brushless motor technology and a durable sleeve bearing architecture, this unit optimizes aerodynamic efficiency while maintaining a low noise profile relative to its rotational speed. The 30mm frame is constructed from UL94V-0 rated thermoplastic, ensuring structural rigidity and fire resistance. Engineered for reliability, the ASB0312HA-D minimizes thermal impedance in electronic assemblies, making it an ideal solution for spot cooling in dense circuit environments where component longevity is critical.
Model Number: ASB0312HA-D
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.14 A
Input Power: 1.68 W
Rated Speed: 9000 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 4.30 CFM (7.31 m³/h / 0.12 m³/min)
Max. Static Pressure: 3.81 mmH₂O (37.4 Pa / 0.15 inH₂O)
Dimensions: 30x30x10mm
Weight: 8.0 g
Life Expectancy: 30,000 Hours at 40°C
Noise Level: 28.0 dB-A
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Termination: 2 Lead Wires (Red +, Black -)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Safety Certifications: UL, cUL, TUV, CE
The ASB0312HA-D is frequently integrated into compact electronic devices where internal space is at a premium yet thermal dissipation cannot be compromised. Common deployment scenarios include cooling chipsets in networking switches, ventilating small form-factor power supplies, and regulating temperatures in portable medical instrumentation. Additionally, the ASB0312HA-D serves as a critical component in 3D printer hotend assemblies and DVR systems, ensuring stable operation by preventing localized hotspots on sensitive PCBs.
