Description

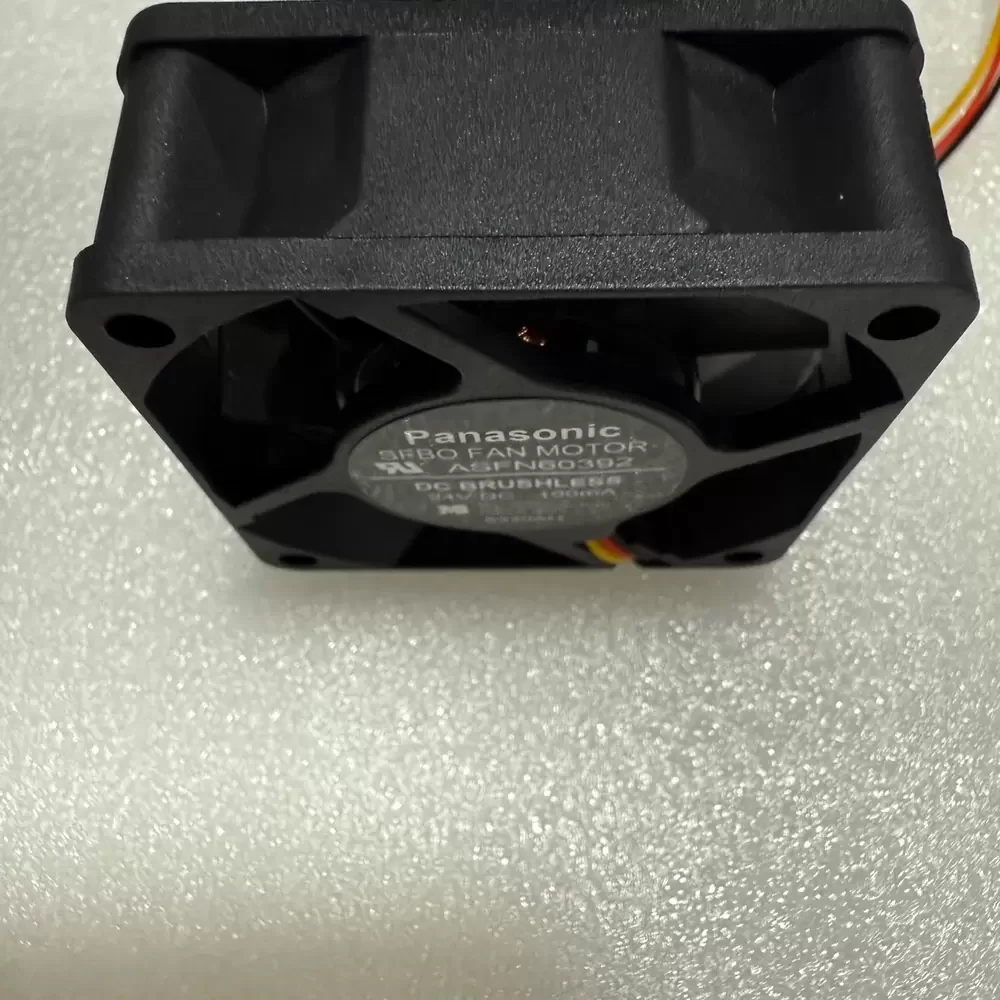

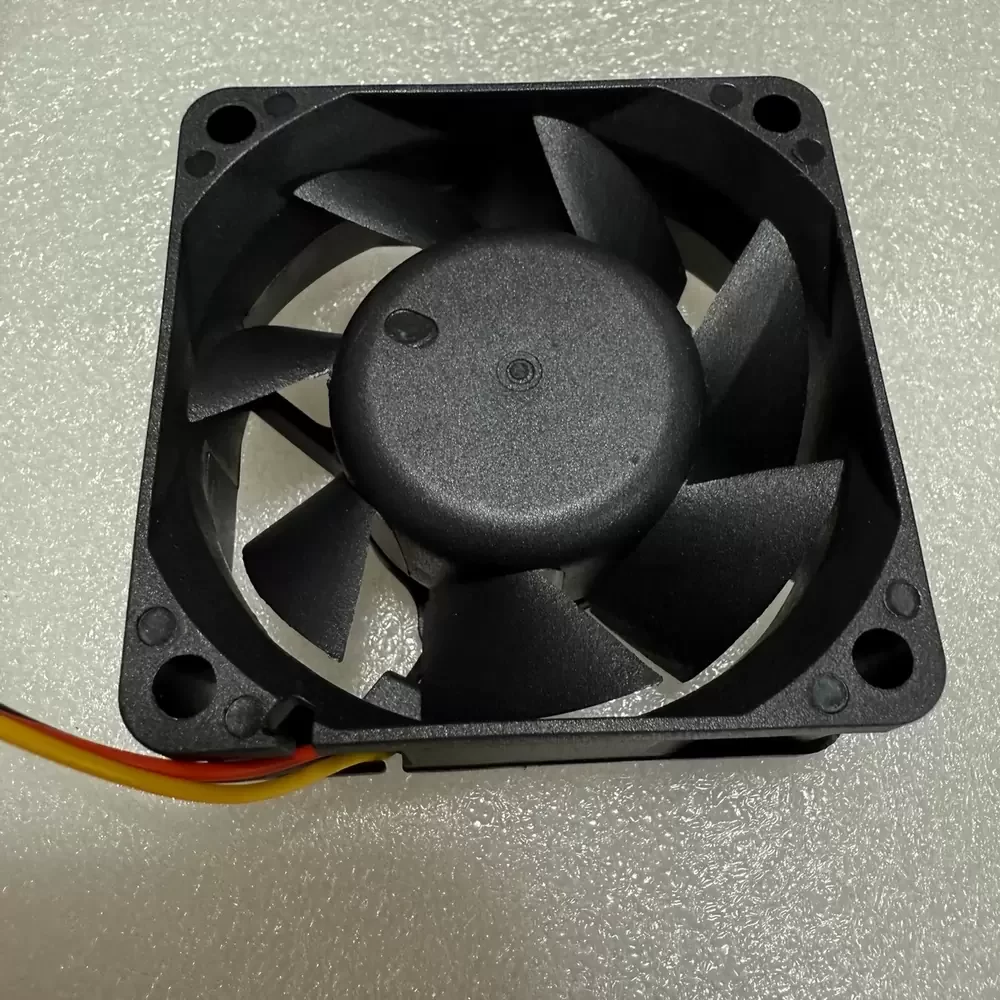

Panasonic ASFN60392 is a 24VDC 60x60x25mm Axial Fan optimized for high-density thermal management in industrial control systems. This 6025 series unit utilizes a precision-engineered DC brushless motor and advanced bearing architecture to minimize thermal impedance while maintaining structural rigidity under continuous operation. Operating at a rated current of 100mA and consuming only 2.4W, it delivers a balanced airflow profile suitable for overcoming internal resistance in compact enclosures. The integrated 3-wire configuration provides a dedicated tachometer signal for real-time RPM monitoring, ensuring system reliability in mission-critical environments where cooling failure is not an option.
Model Number: ASFN60392
Brand: Panasonic
Product Type: Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 12.0 – 26.4 VDC
Rated Current: 0.10 A
Power: 2.4 W
Rated Speed: 3800 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 19.1 CFM (0.54 m³/min)
Max. Static Pressure: 39.2 Pa (0.157 inH₂O)
Dimensions: 60 x 60 x 25 mm
Weight: 65 g
Life Expectancy: 50,000 Hours at 40°C
Noise Level: 30 dB(A)
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)

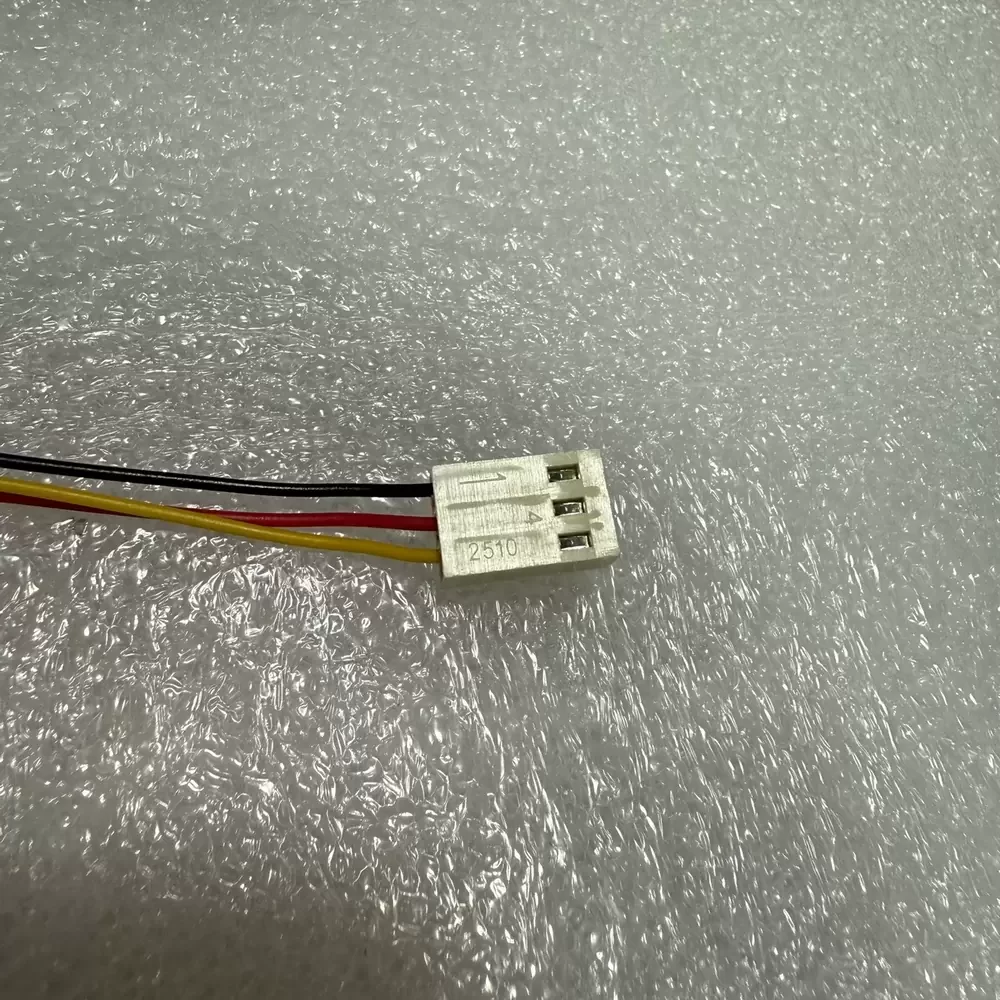

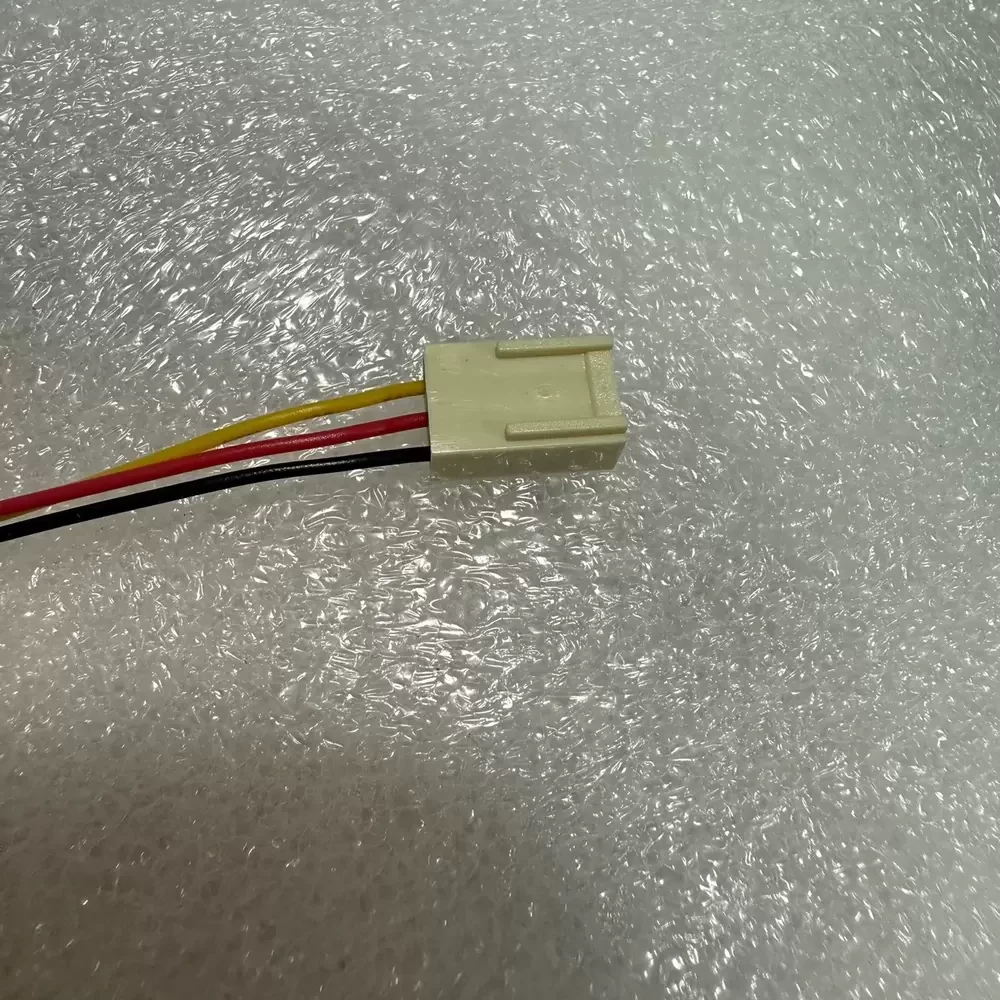

Termination: 3 Lead Wires
Speed Control: Tachometer / Frequency Generator
Protection: Integrated Locked Rotor Protection
Operating Temperature: -10 to +60 °C
Storage Temperature: -20 to +70 °C
ASFN60392 Applications
1. Industrial PLC Enclosures: The 24VDC 6025 footprint and tachometer output provide essential thermal regulation and status monitoring for programmable logic controllers.
2. Medical Diagnostic Equipment: Low-vibration operation and high MTBF make this an ideal replacement fan for sensitive laboratory instrumentation requiring consistent airflow.
3. 2U Server Chassis: Optimized for overcoming system impedance in shallow rackmount environments where 60mm height constraints are mandatory.
