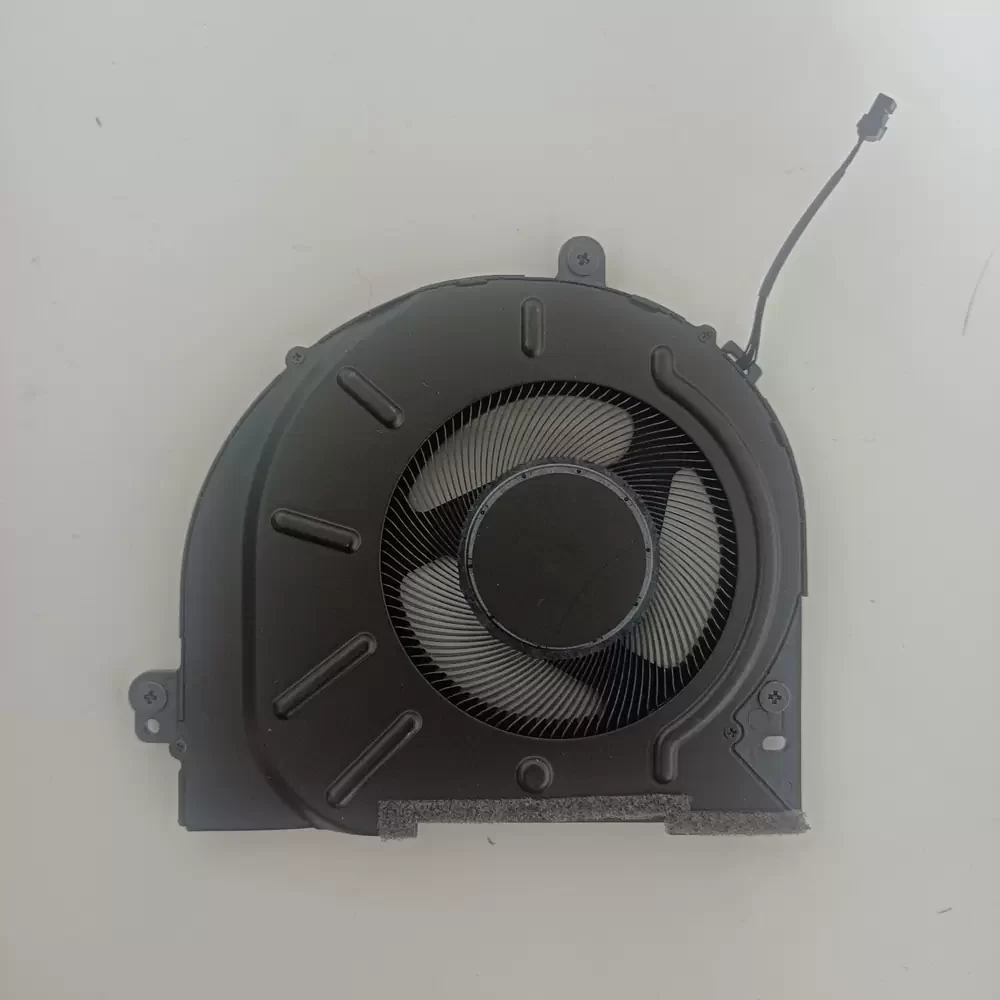

B9606AFHNF2100TN ELEPEAK 5VDC 0.5A 96mm Blower

Description

ELEPEAK B9606AFHNF2100TN is a 5VDC 96mm Blower optimized for high-density thermal management in ultra-compact mobile workstations. This centrifugal cooling solution features a precision-engineered impeller designed to minimize thermal impedance while maintaining structural rigidity under high rotational velocities. Utilizing a high-efficiency DC motor drawing 0.5A, the unit delivers concentrated laminar airflow to overcome the significant static pressure found in modern heat pipe arrays. The aerodynamic housing is specifically tuned to reduce acoustic turbulence, ensuring stable 5VDC operation and reliable heat dissipation for critical processing components during peak computational loads.

Model Number: B9606AFHNF2100TN
Brand: ELEPEAK
Product Type: Blower (Centrifugal Fan)
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.5A
Power: 2.5W
Rated Speed: High Speed
Bearing Type: Fluid Dynamic Bearing
Max. Air Flow: Optimized for Chassis Airflow
Max. Static Pressure: High Static Pressure for Heat Sinks
Dimensions: 96mm x 96mm x 6mm
Weight: 45g
Life Expectancy: 40,000 Hours at 40C
Housing Material: UL94V-0 Reinforced Plastic
Blade Material: UL94V-0 Thermoplastic
Termination: 4-Pin Connector (PWM Support)
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +75C
Protection Features: Locked Rotor Protection, Auto-Restart
Certifications: CE, RoHS Compliant
Compatible Part Numbers: 5F10Z58246, 5F10Z58247, 5F10Z58248

B9606AFHNF2100TN Applications
1. ThinkPad L14/L15 Gen 3 & 4 Thermal Repair: Direct replacement fan engineered to match the specific pressure-to-flow curve required for Lenovo’s proprietary heat sink geometry.
2. Ultra-Thin Laptop Chassis: Low-profile centrifugal design provides the necessary mechanical advantage to move air through restricted internal clearances where axial fans would stall due to high system impedance.
