Description

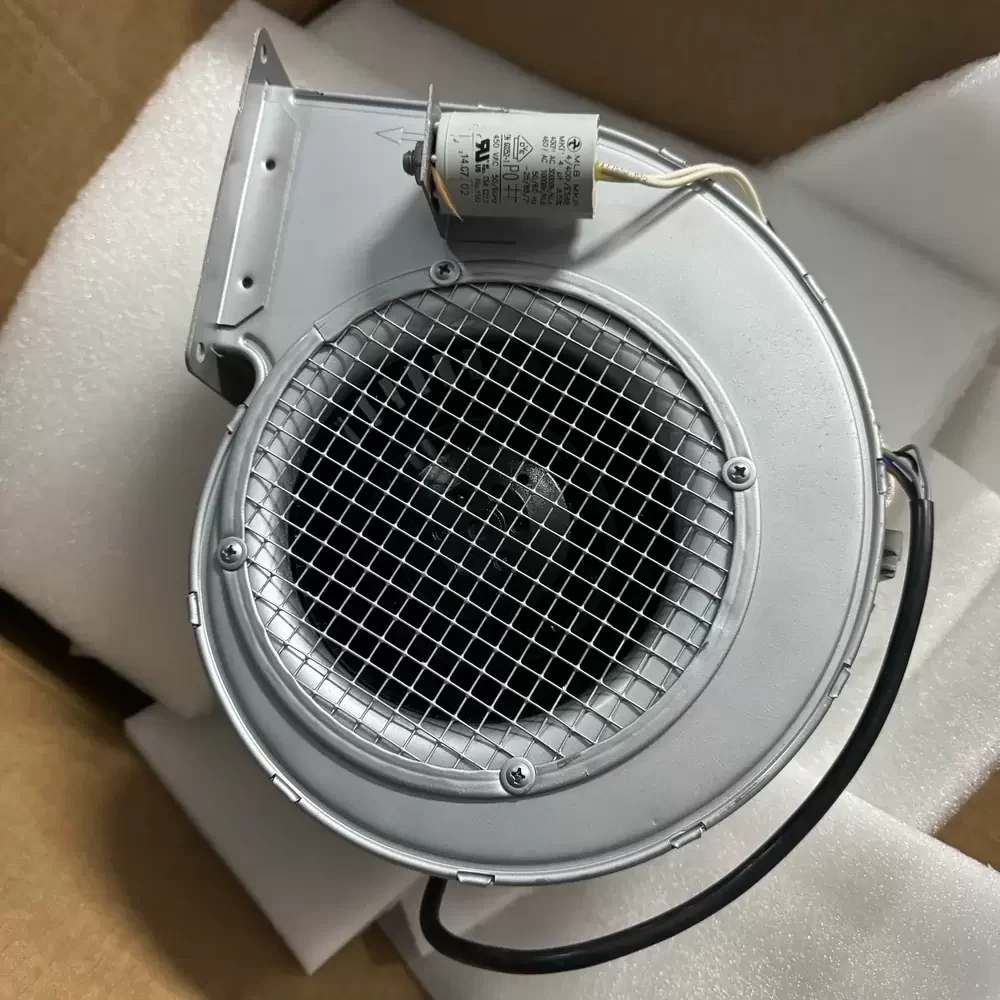

The ebmpapst G2E140-PI51-11 is a robust single-inlet Centrifugal Blower engineered for high-pressure industrial air movement and thermal management. Utilizing an advanced AC external rotor motor (M2E068-DF), this unit delivers consistent aerodynamic performance through its forward-curved impeller design. The construction features a galvanized sheet steel impeller and a die-cast aluminum housing, ensuring exceptional structural rigidity and thermal stability under continuous load. Designed with precision maintenance-free ball bearings, the G2E140-PI51-11 minimizes friction and thermal impedance, significantly extending operational longevity. Its optimized geometry reduces turbulence while maintaining high efficiency, making it an ideal solution for systems requiring reliable airflow and substantial static pressure capabilities in demanding electrical and mechanical environments.

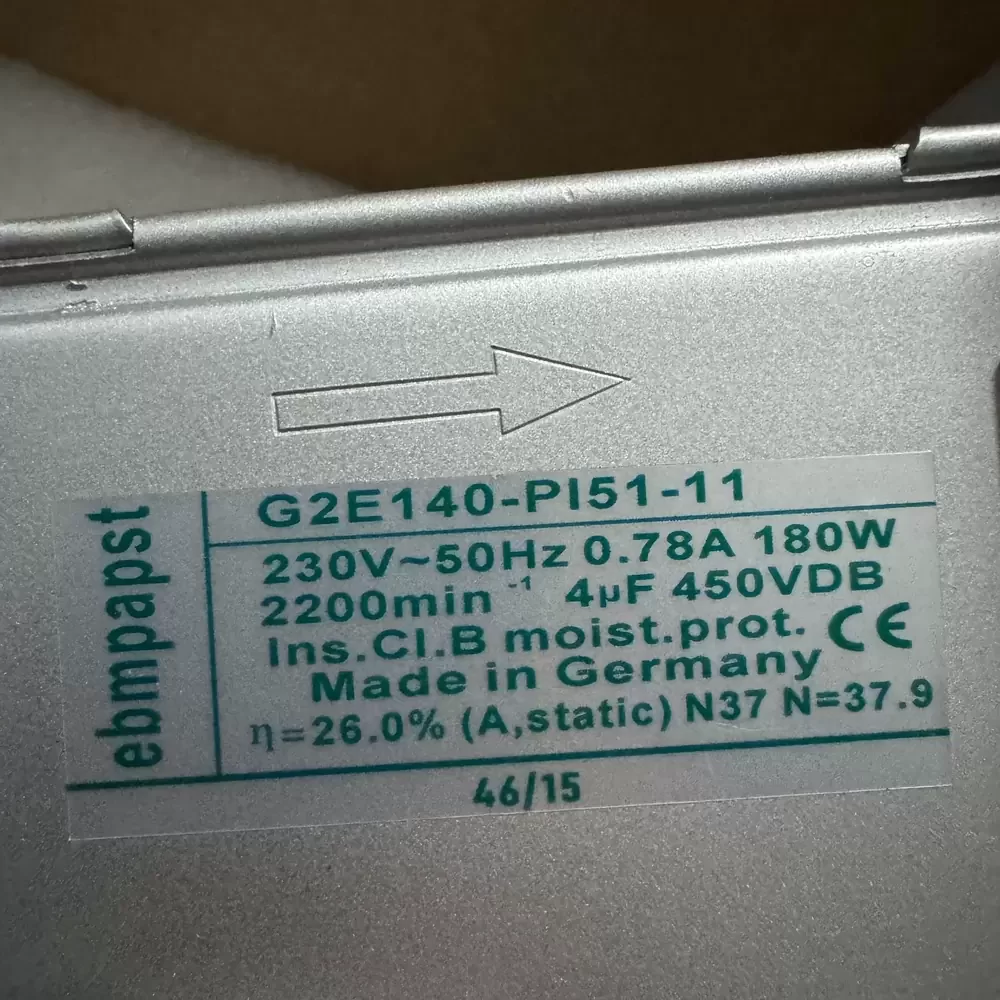

Model Number: G2E140-PI51-11
Brand: ebmpapst
Product Type: Centrifugal Blower (Single Inlet)
Motor Type: AC External Rotor Motor (M2E068-DF)
Rated Voltage: 230 VAC
Frequency: 50 Hz
Rated Current: 0.78 A
Power Consumption: 180 W
Rated Speed: 2200 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 208.9 CFM (355 m³/h / 5.91 m³/min)
Max. Static Pressure: 28.55 mmH₂O (280 Pa / 1.12 inH₂O)
Impeller Diameter: 140 mm
Capacitor: 4 µF / 400 VDB
Noise Level: 68 dB(A)
Weight: 3.2 kg (7.05 lbs)
Life Expectancy: 40,000 Hours (at 40°C)
Insulation Class: Class B
Ingress Protection: IP44
Impeller Material: Sheet steel, hot-dip galvanized
Housing Material: Die-cast aluminum
Direction of Rotation: Clockwise (viewed toward rotor)
Operating Temperature: -25°C to +50°C
Motor Protection: Thermal Overload Protector (TOP) wired internally
Compliance: CE, CCC, EAC
Mounting: Maintenance-free via ball bearings
Phase: Single Phase
The G2E140-PI51-11 is frequently integrated into critical industrial machinery where effective heat dissipation and high back-pressure performance are paramount. Common deployments include cooling variable frequency drives, ventilating control cabinets, and managing thermal loads in large-scale telecommunications infrastructure. Manufacturers of medical diagnostic equipment and precision CNC machinery also rely on the G2E140-PI51-11 for its consistent airflow and durability under continuous operation. Furthermore, this blower is suitable for duct-based ventilation systems, air filtration units, and server rack cooling solutions requiring sustained static pressure.
