Description

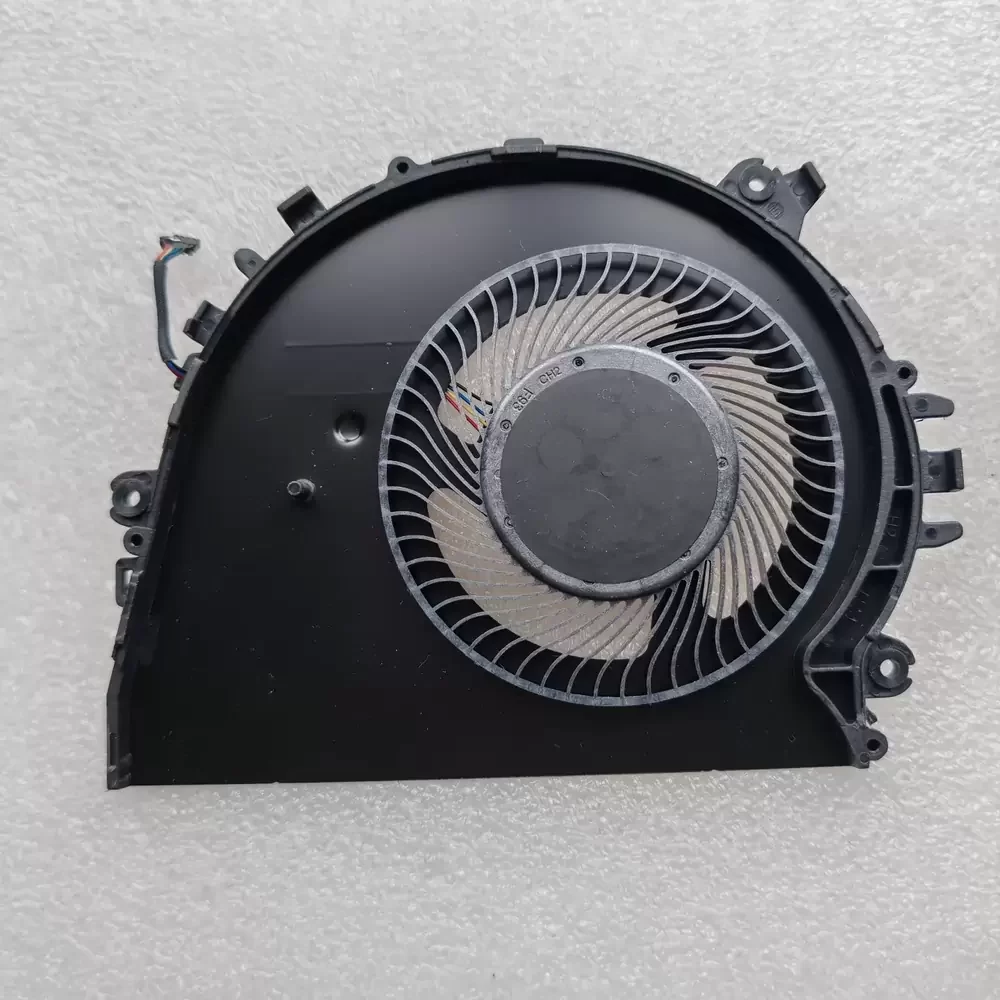

The AVC BAPA0905R5H-Y003 84x84x5mm 5 VDC 0.50 A centrifugal blower is engineered with a durable plastic housing and a high-efficiency hydraulic bearing system. Operating at a nominal power of 2.5 W, this compact thermal management unit utilizes a 4-wire, 4-pin interface to enable precise PWM speed control and tachometer feedback. The low-profile 5 mm thickness ensures optimal integration into highly constrained spatial architectures while maintaining rigorous airflow and static pressure metrics.
BAPA0905R5H-Y003 Specifications
Model Number: BAPA0905R5H-Y003
Brand: AVC (Asia Vital Components)
Product Category: DC Centrifugal Blower / CPU Cooling Fan
Nominal Voltage: 5 VDC
Rated Current: 0.50 A
Power Consumption: 2.5 W
Dimensions: 84 mm x 84 mm x 5 mm
Bearing Type: Hydraulic Bearing
Connector Type: 4-Pin, 4-Wire
Housing Material: Plastic
Color: Black
Control Method: PWM (Pulse Width Modulation)
Feedback: Tachometer Signal
BAPA0905R5H-Y003 Applications
Primary applications include integration into ultra-thin notebook computers, specifically the Huawei MateBook 14 Hly-wx9xx series, for direct CPU thermal management. Deployed within compact consumer electronics and densely packed mobile computing architectures, the blower actively exhausts heat from high-density microprocessors and integrated graphics modules.
Additional information
| Shipping Weight | 1 kg |
|---|
