Description

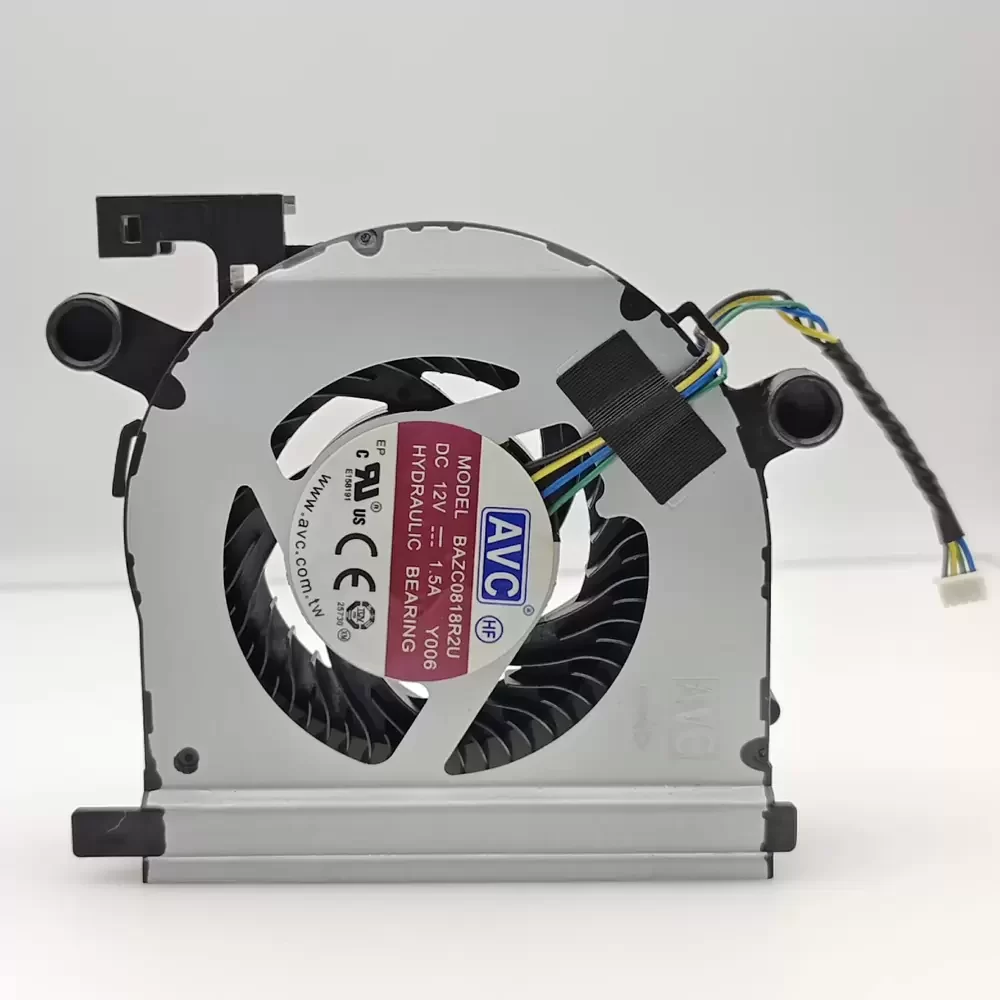

The AVC BAZC0818R2U-Y006 is a 12VDC 80x80x18mm centrifugal blower fan optimized for high-density thermal management in compact computing environments. Engineered with a high-efficiency DC brushless motor and advanced bearing architecture, this unit minimizes thermal impedance within restricted airflow paths. The 1.5A current rating supports high-velocity air discharge, essential for maintaining structural rigidity and cooling efficiency in small form factor (SFF) systems. Featuring a 4-wire PWM interface for precise speed modulation, it delivers targeted cooling performance with a focus on overcoming the high system impedance found in modern micro-PC chassis.
Model Number: BAZC0818R2U-Y006
Brand: AVC
Product Type: Centrifugal Blower Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 1.5 A
Power: 18.0 W
Rated Speed: 5400 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 18.45 CFM (31.35 m³/h)
Max. Static Pressure: 28.4 mmH₂O (278.5 Pa)
Dimensions: 80 x 80 x 18 mm
Weight: 85 g
Life Expectancy: 70,000 hours at 40°C
Speed Control: PWM Signal Control
Feedback: Tachometer / Frequency Generator
Termination: 4-Pin Connector
Housing Material: UL94V-0 Thermoplastic
Blade Material: UL94V-0 Thermoplastic
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Protection: Locked Rotor Protection, Reverse Polarity Protection
Certifications: CE, TUV, UL, RoHS

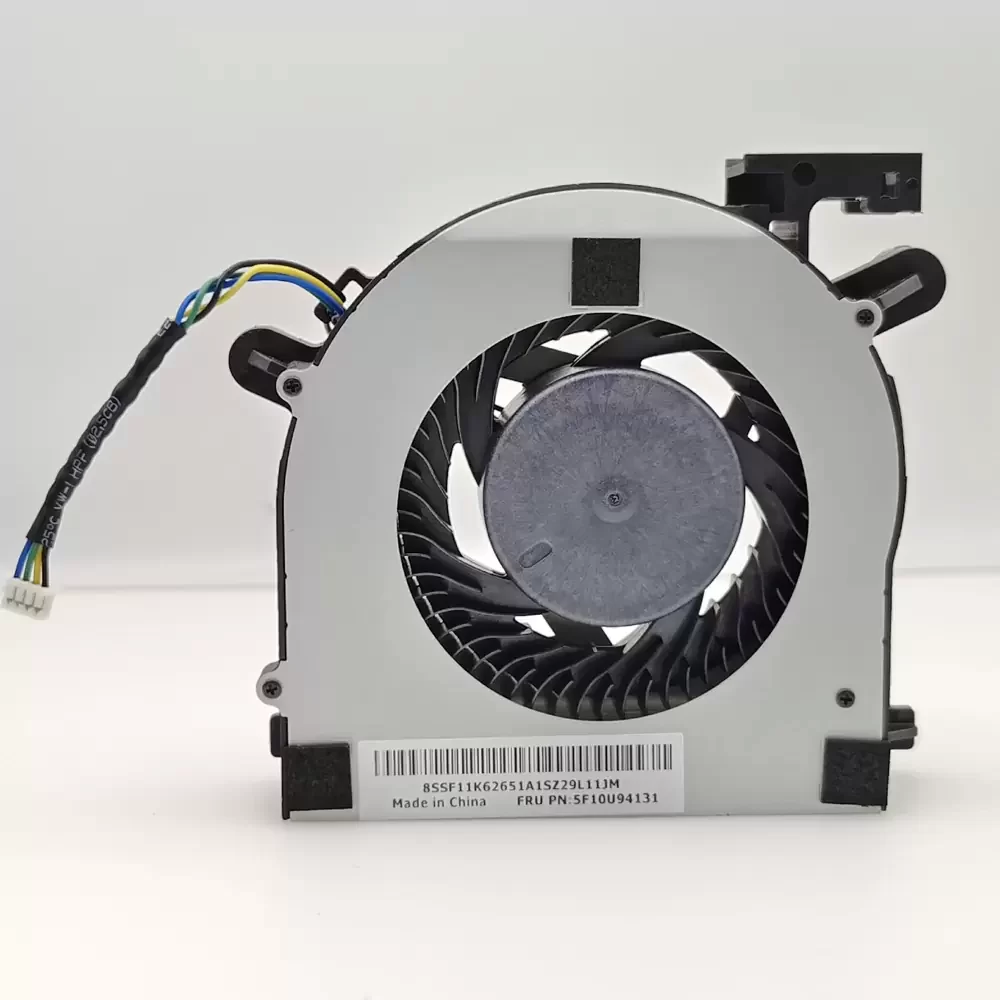

Part Number: 5F10U94131
BAZC0818R2U-Y006 Applications
1. Lenovo 小新Mini 01IRH Thermal Module: Direct replacement fan designed to match the specific pressure-to-flow curve required for the 01IRH internal heat sink assembly.
2. Ultra-Compact Form Factor (UCFF) Cooling: Ideal for 1U or sub-1U enclosures where the 18mm low-profile height and centrifugal discharge are necessary to exhaust heat from high-TDP processors.
3. High-Impedance Industrial Controllers: Provides the necessary static pressure to force air through tightly packed PCB components and localized heat spreaders in ruggedized mini-PCs.
