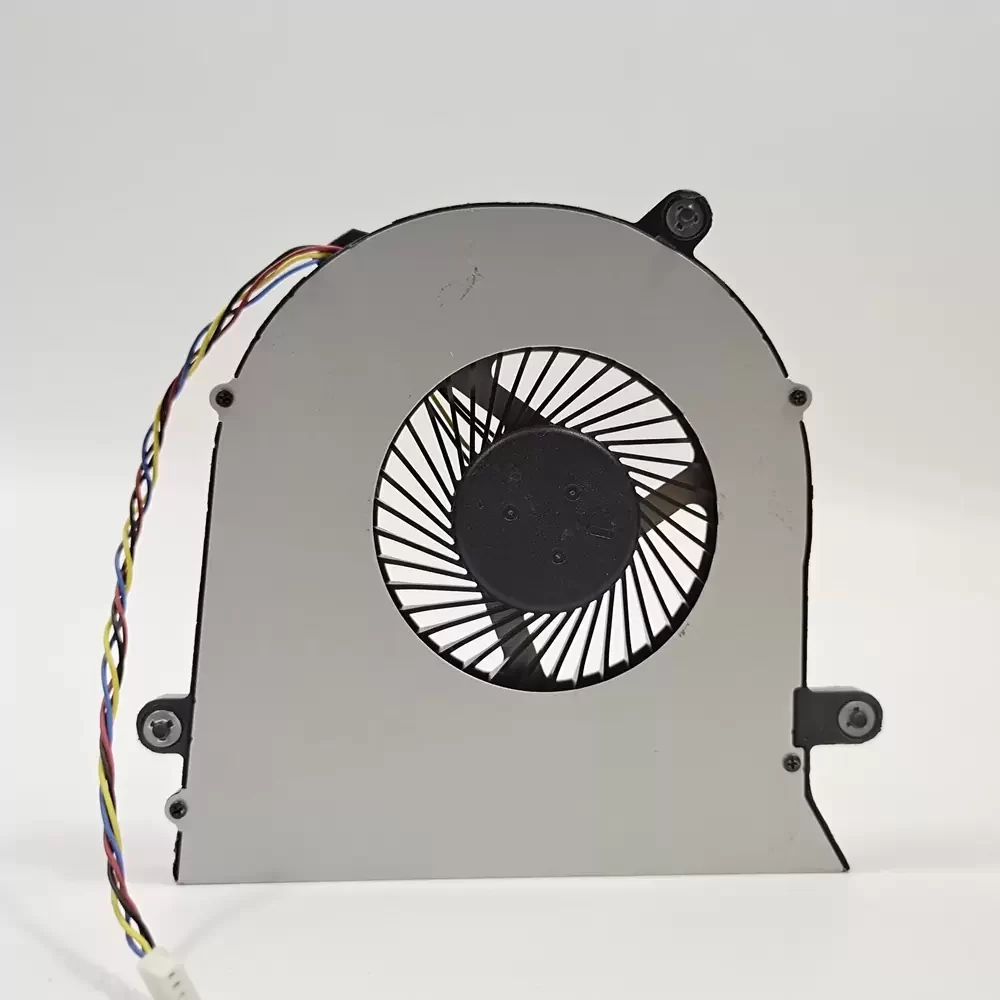

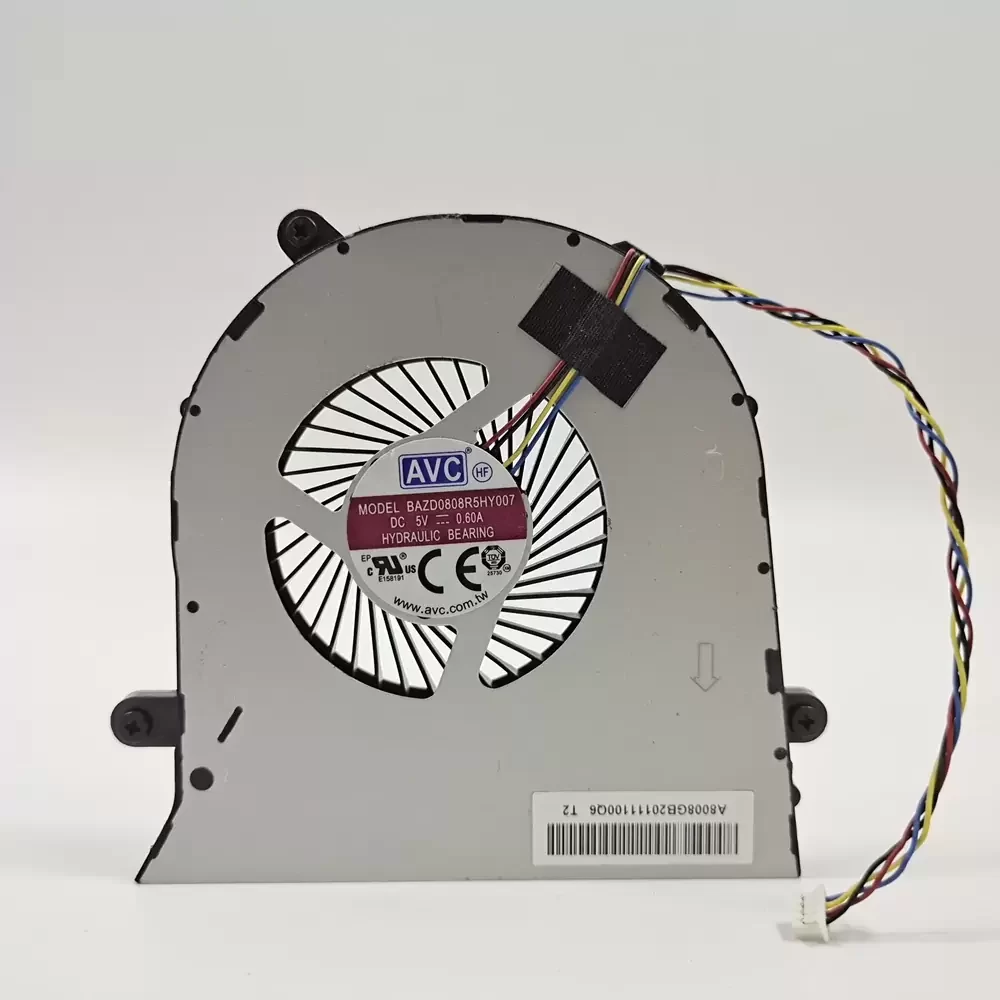

BAZD0808R5HY007 AVC 5VDC 80mm Blower Centrifugal Fan

Description

The AVC BAZD0808R5HY007 is a 5VDC 80mm Centrifugal Blower optimized for high-density thermal management in compact computing environments. Engineered with advanced DC motor technology and a high-rigidity impeller design, this blower addresses the critical technical problem of heat concentration in low-profile enclosures where axial airflow is insufficient. The unit features a sophisticated bearing architecture designed to minimize thermal impedance and maintain structural integrity under continuous operation. Operating at a rated current of 0.60A, it delivers precise static pressure to overcome internal system resistance, ensuring stable clock speeds for Intel NUC Pro Element modules. The 4-wire PWM interface allows for granular speed control, optimizing the balance between acoustic output and cooling efficiency.

Model Number: BAZD0808R5HY007
Brand: AVC
Product Type: Centrifugal Blower Fan
Rated Voltage: 5 VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.60 A
Power: 3.0 W
Rated Speed: 4500 RPM
Bearing Type: Hydraulic Bearing
Max. Air Flow: 12.4 CFM
Max. Static Pressure: 14.2 mmH2O
Dimensions: 80 x 80 x 15 mm
Weight: 45 g
Life Expectancy: 50,000 Hours at 40 C
Speed Control: PWM Signal Control
Feedback: Tachometer / Frequency Generator
Termination: 4-Pin Connector / 4-Wire Lead
Housing Material: UL94V-0 Reinforced Plastic
Blade Material: UL94V-0 Reinforced Plastic
Operating Temperature: -10 to +70 C
Storage Temperature: -40 to +75 C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Certifications: CE, TUV, UL, RoHS

BAZD0808R5HY007 Applications
1. Intel NUC Pro Element (BKCMA2GB) Thermal Modules: Direct replacement fan engineered to match the specific pressure-to-flow curve required for cooling compute elements in industrial NUC chassis.
2. Ultra-Compact Form Factor (UCFF) Industrial PCs: Ideal for overcoming high system impedance in 1U or sub-1U enclosures where traditional axial fans cannot generate sufficient directional static pressure.
3. Embedded Edge Computing Nodes: Provides high-reliability cooling for ruggedized outdoor telecom gateways where low-vibration and compact dimensions are critical for optical and electronic precision.
