Description

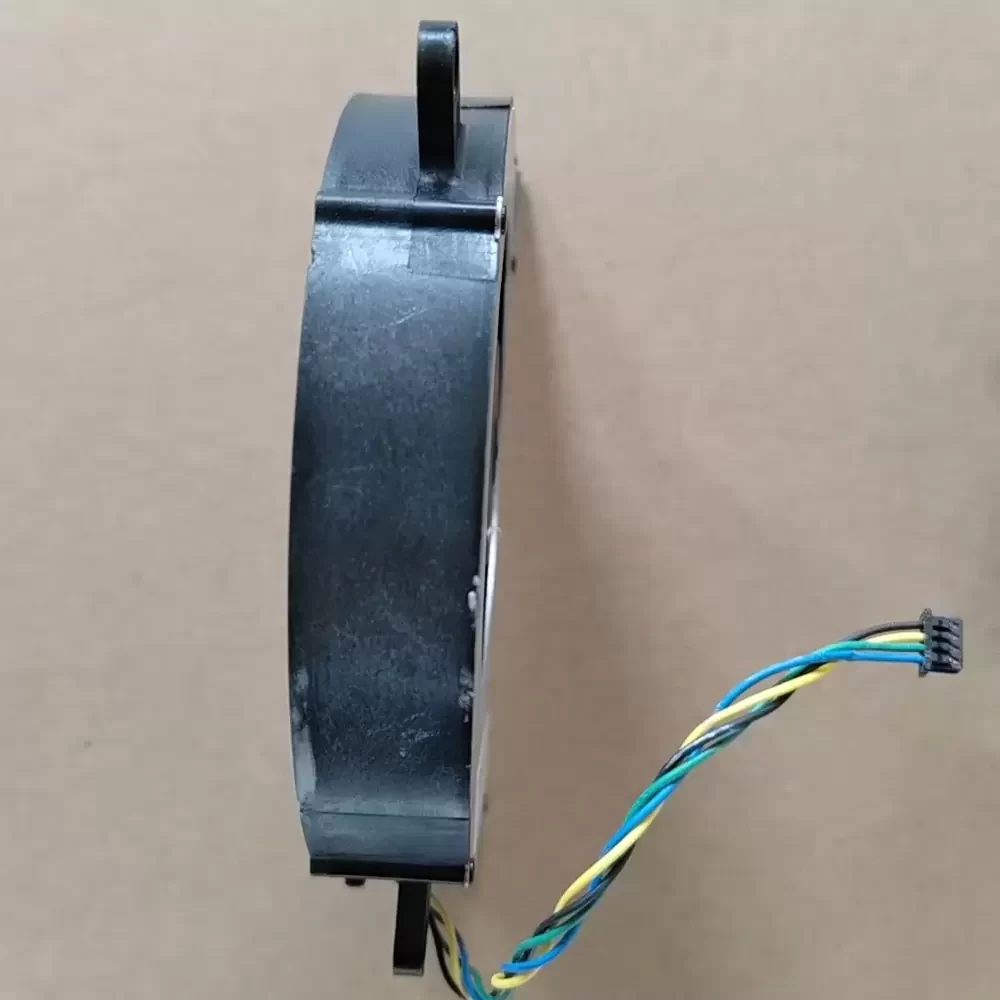

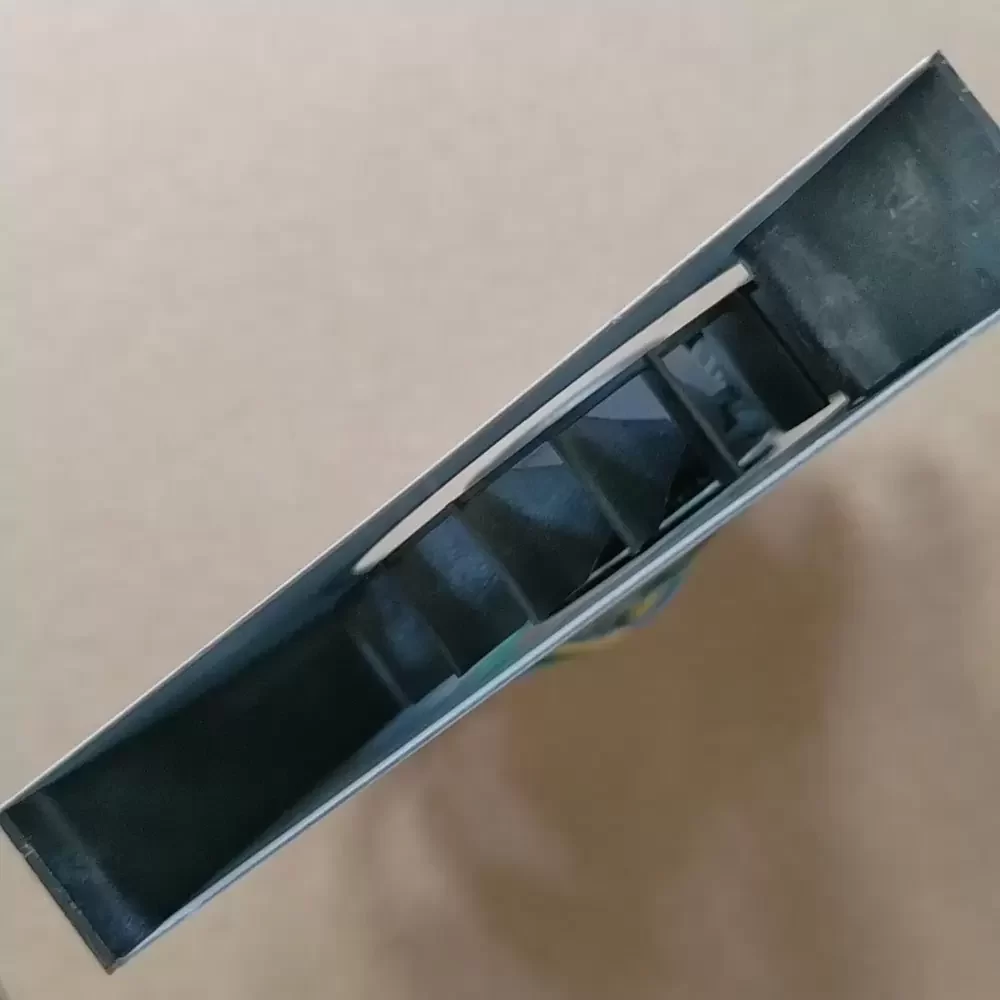

The Delta BUC1012MD-00DHN is a high-efficiency DC centrifugal blower engineered for precision thermal management in space-constrained environments. Utilizing advanced brushless motor technology and a robust dual ball bearing architecture, this unit provides exceptional structural rigidity and low thermal impedance under continuous operation. Its aerodynamic impeller design is optimized to overcome high system impedance, delivering concentrated airflow to critical components. The integration of a 4-wire interface allows for sophisticated pulse width modulation (PWM) speed control and tachometer feedback, ensuring the BUC1012MD-00DHN maintains optimal cooling efficiency while minimizing acoustic output across varying thermal loads.
Model Number: BUC1012MD-00DHN
Brand: Delta Electronics
Product Type: DC Centrifugal Blower
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 1.20A
Power: 14.4W
Rated Speed: 4500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 32.5 CFM (0.92 m³/min)
Max. Static Pressure: 42.8 mmH₂O (419.7 Pa)
Dimensions: 100mm x 100mm x 25mm
Weight: 160g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM Signal
Monitoring Output: Tachometer / Frequency Generator

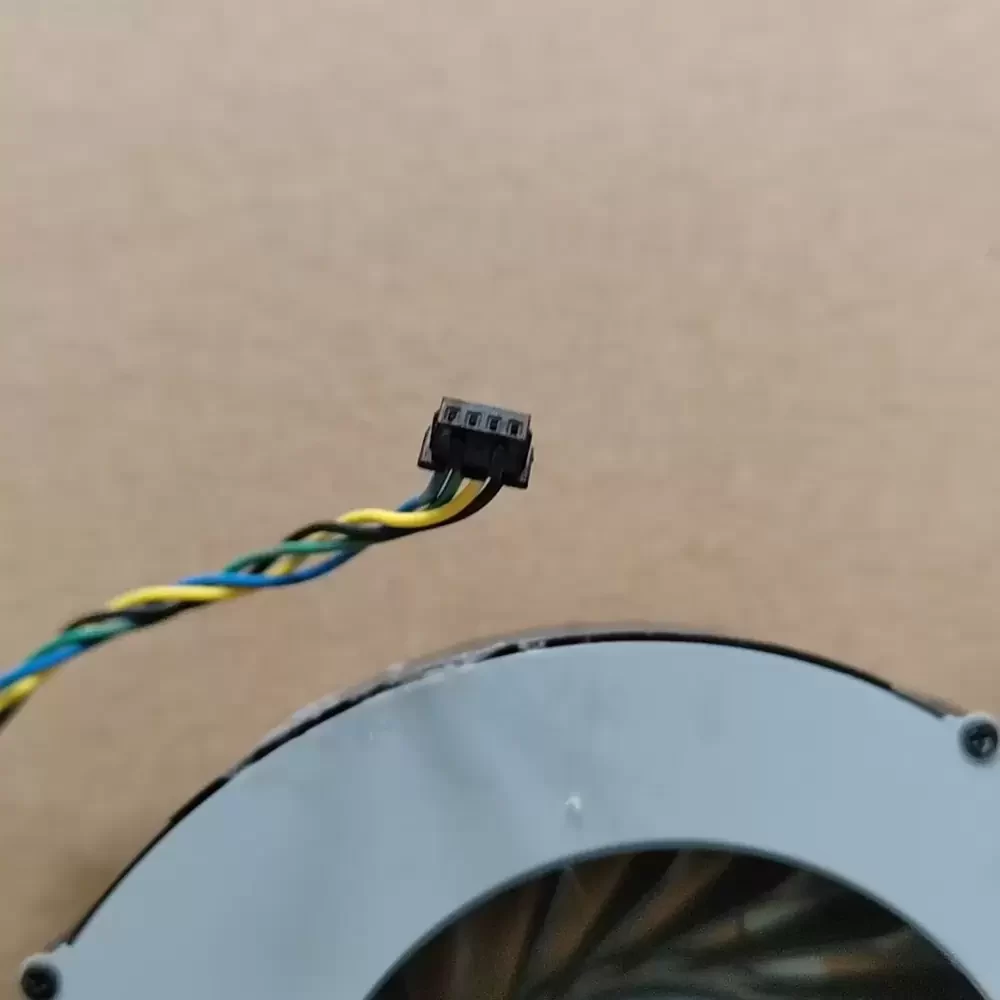

Termination: 4-Wire Lead Wires
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Insulation Class: Class A
Noise Level: 56.5 dB(A)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Certifications: UL, CUL, TUV, CE
The Delta BUC1012MD-00DHN is specifically designed for integration into high-density computing systems, such as Lenovo All-in-One (AIO) PCs and compact workstations. Given its high static pressure capabilities, the BUC1012MD-00DHN is also ideal for cooling telecommunications equipment, medical diagnostic machinery, and industrial control cabinets where airflow must be forced through dense heat sinks or narrow internal channels. The reliability of the BUC1012MD-00DHN ensures long-term stability in 24/7 operational environments.
