Description

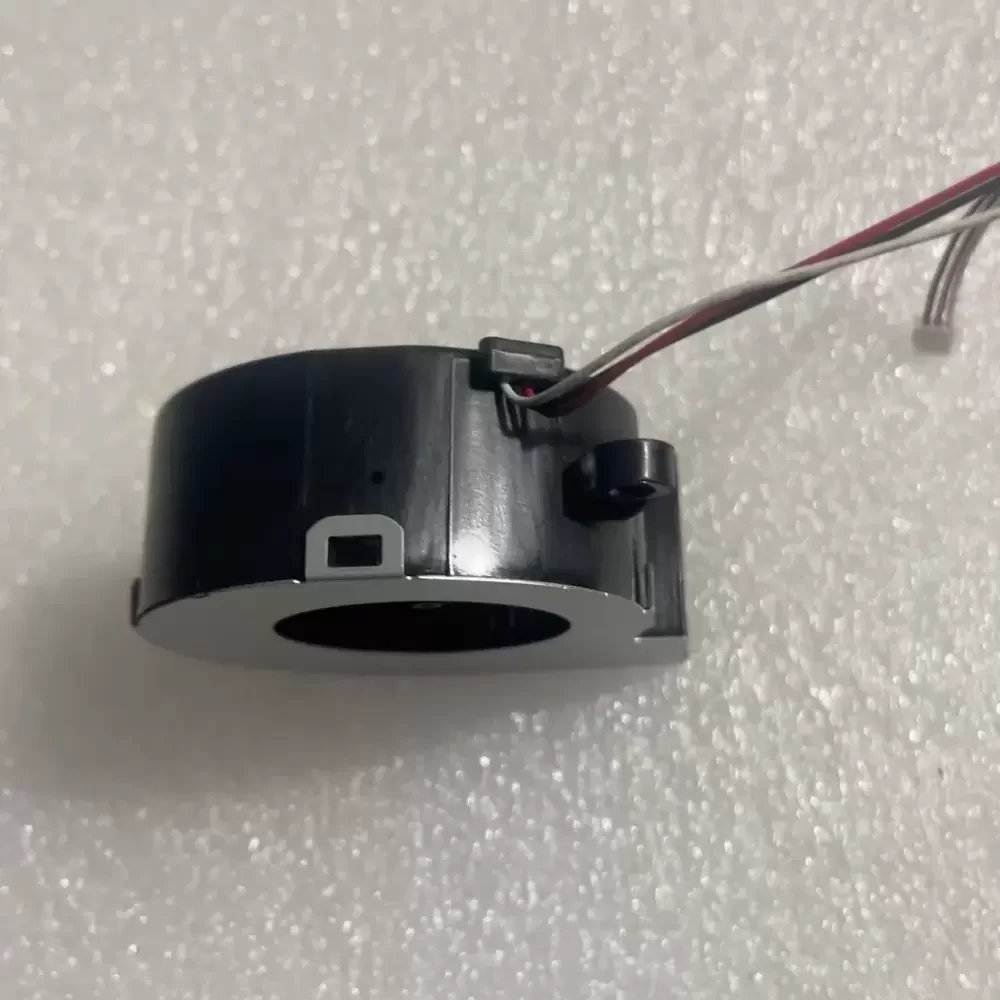

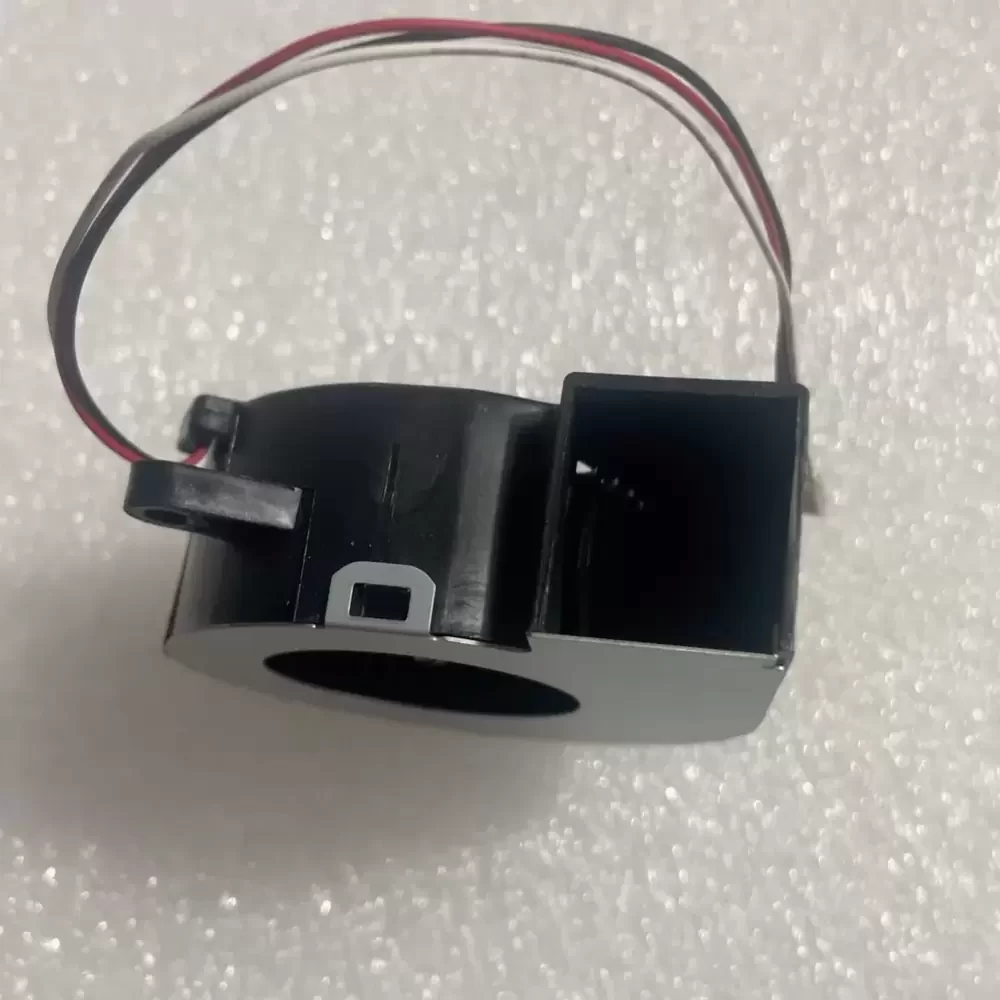

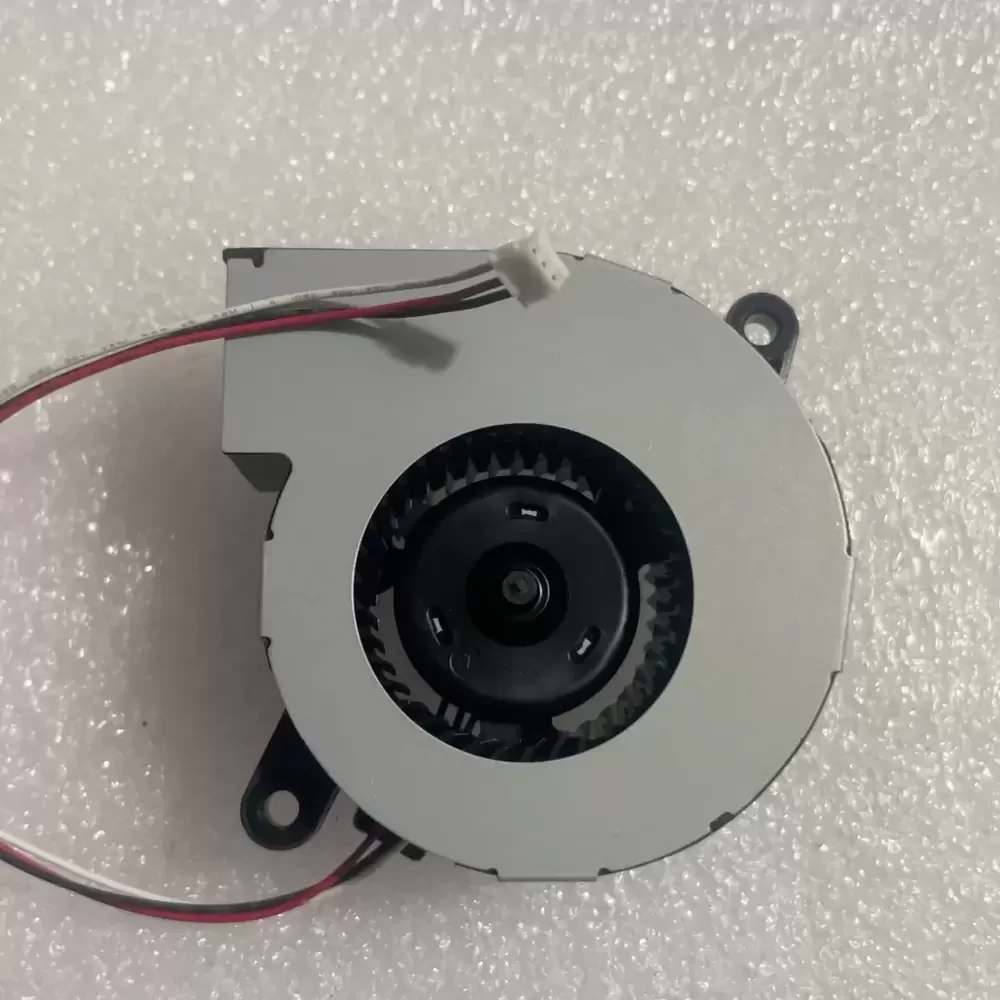

TOSHIBA CY-6023L-20 is a 12VDC 60mm Blower optimized for high-impedance thermal management in confined enclosures. This specialized centrifugal unit utilizes a brushless DC motor architecture to ensure consistent torque and reduced electromagnetic interference. Designed with structural rigidity to withstand continuous operation, the CY-6023L-20 features a precision-engineered impeller that maximizes static pressure to overcome the airflow resistance typical of dense optical assemblies. Operating at 230mA, this blower provides the necessary thermal dissipation for sensitive electronics while maintaining a compact 60mm footprint. Its three-wire configuration allows for integrated tachometer feedback, ensuring system controllers can monitor rotational velocity to prevent thermal runaway in critical hardware.
Model Number: CY-6023L-20
Brand: TOSHIBA
Product Type: Centrifugal Blower
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.23 A
Power: 2.76 W
Rated Speed: 3200 RPM
Bearing Type: Precision Sleeve
Max. Air Flow: 5.8 CFM
Max. Static Pressure: 12.4 mmH2O
Dimensions: 60 x 60 x 23 mm
Weight: 45 g
Life Expectancy: 30000 hours at 40 C
Speed Control: Tachometer / Signal Output
Termination: 3 Lead Wires
Housing Material: UL94V-0 Thermoplastic PBT
Blade Material: UL94V-0 Thermoplastic PBT
Insulation Class: Class A
Operating Temperature: -10 to +70 C
Storage Temperature: -40 to +75 C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
CY-6023L-20 Applications
1. DLP Projector Light Engines: High static pressure overcomes the dense thermal impedance of internal optical filters and lamp modules.
2. Compact Multimedia Projectors: Ideal replacement fan for maintaining low-vibration cooling in portable projection units.
3. Medical Imaging Equipment: Precise airflow delivery for localized cooling of sensor arrays in space-constrained diagnostic tools.
