Description

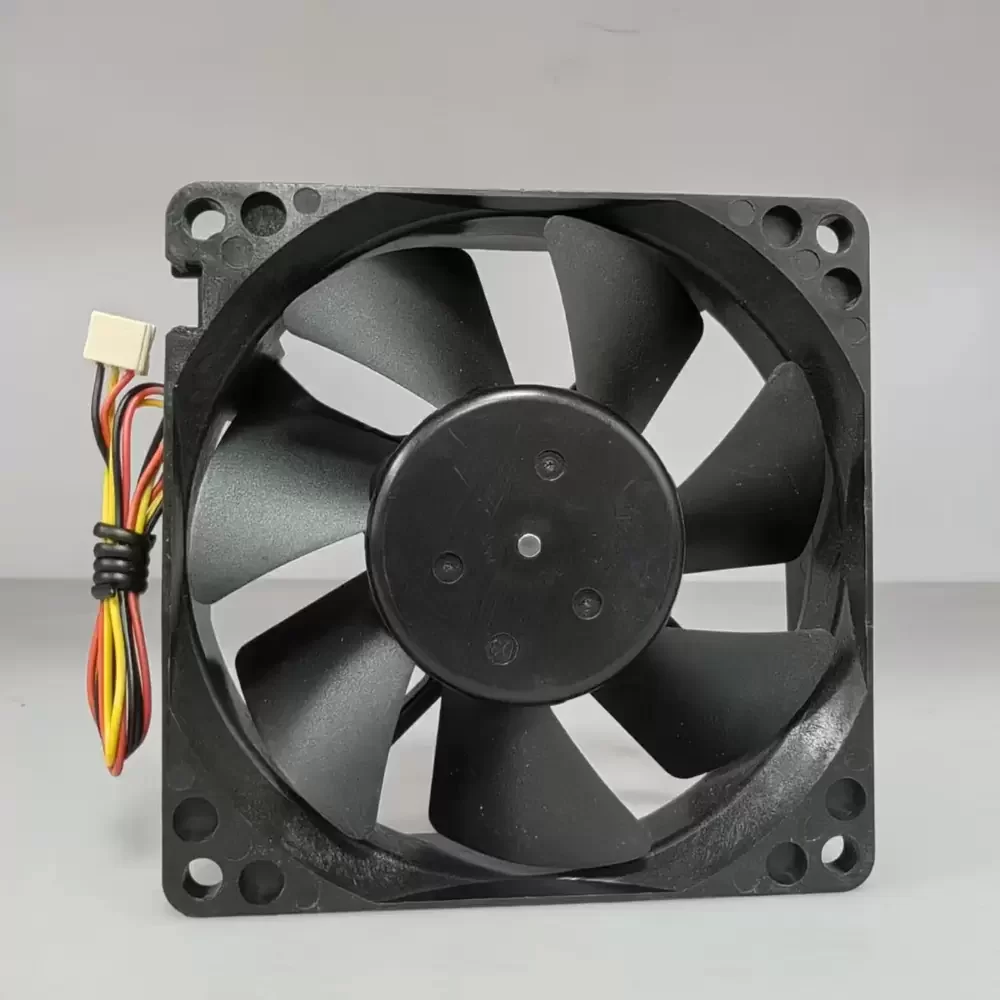

The Nidec D08A-24PSI 02B is a precision-engineered DC Axial Fan designed for critical thermal management in industrial electronics and power systems. Utilizing advanced motor technology, this unit delivers consistent airflow while maintaining low thermal impedance within the system enclosure. The robust construction ensures structural rigidity, minimizing vibration and resonance during operation, which is essential for sensitive audio and frequency control equipment. Engineered with a specialized bearing architecture, it provides reliable long-term performance and stability. The aerodynamic blade design optimizes static pressure, making it an ideal solution for restricted airflow environments such as amplifier chassis and variable frequency drive inverters.

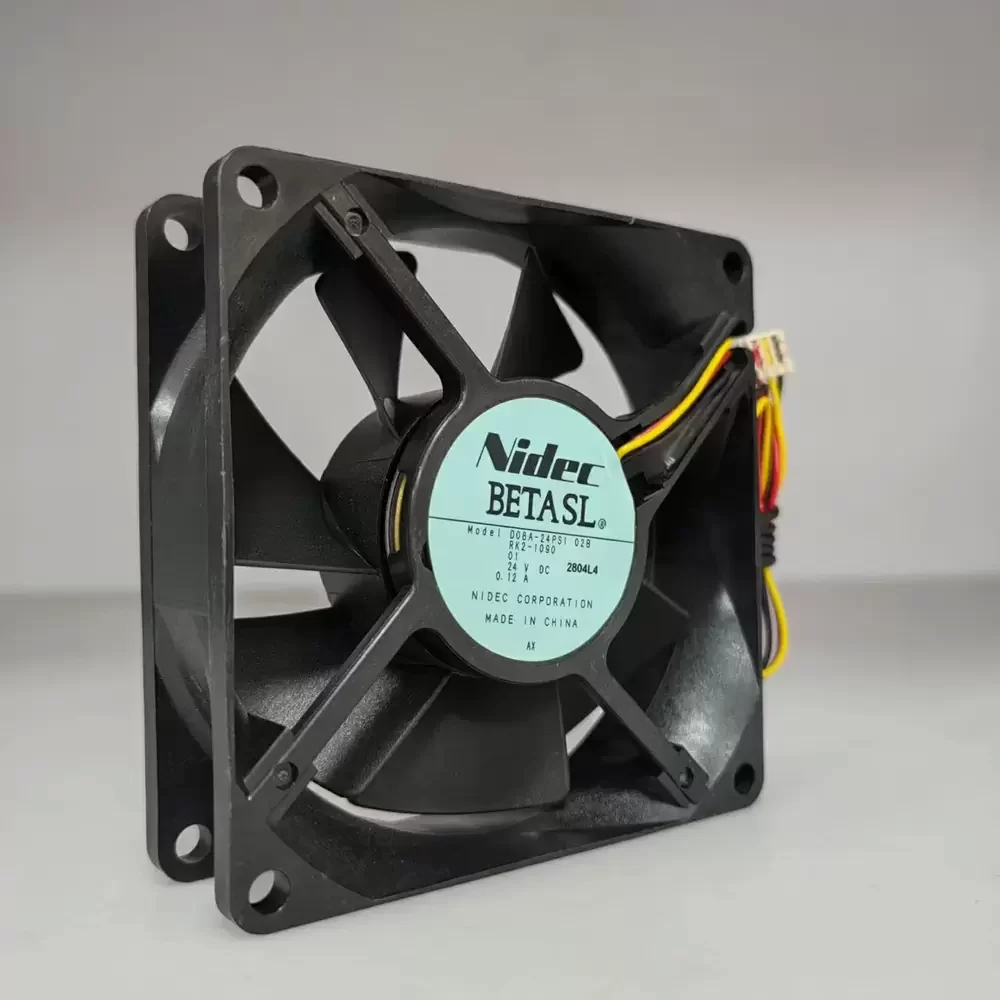

Model Number: D08A-24PSI 02B
Brand: Nidec
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.12 A
Power Consumption: 2.88 W
Rated Speed: 3100 RPM
Bearing Type: Precision Ball Bearing
Max. Air Flow: 38.0 CFM (64.5 m³/h / 1.07 m³/min)
Max. Static Pressure: 3.5 mmH₂O (34.3 Pa / 0.14 inH₂O)
Dimensions: 80x80x25mm
Weight: 85 g

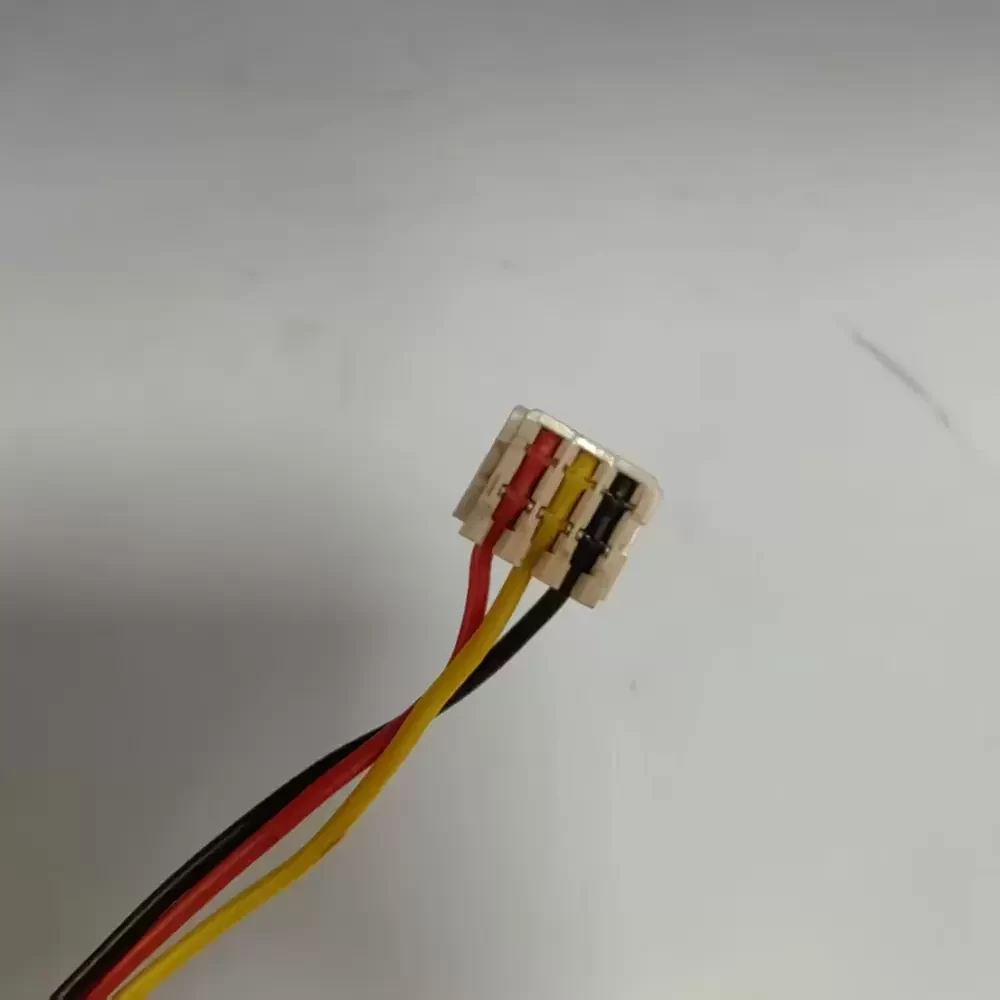

Termination: 3-Wire Lead (230mm length)
Connector: 3-Pin Standard
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Noise Level: 31.0 dB(A)
Life Expectancy: 70,000 Hours @ 40°C
Speed Control: Tachometer Output
Ingress Protection: IP20
This cooling solution is specifically engineered for integration into high-fidelity audio amplifiers and industrial variable frequency drives (VFDs). The D08A-24PSI 02B excels in maintaining optimal operating temperatures within power electronics, preventing thermal throttling in frequency converters and signal processors. Additionally, the D08A-24PSI 02B is suitable for server rack spot cooling, telecommunications equipment, and automation control cabinets where reliable heat dissipation is critical for component longevity.
