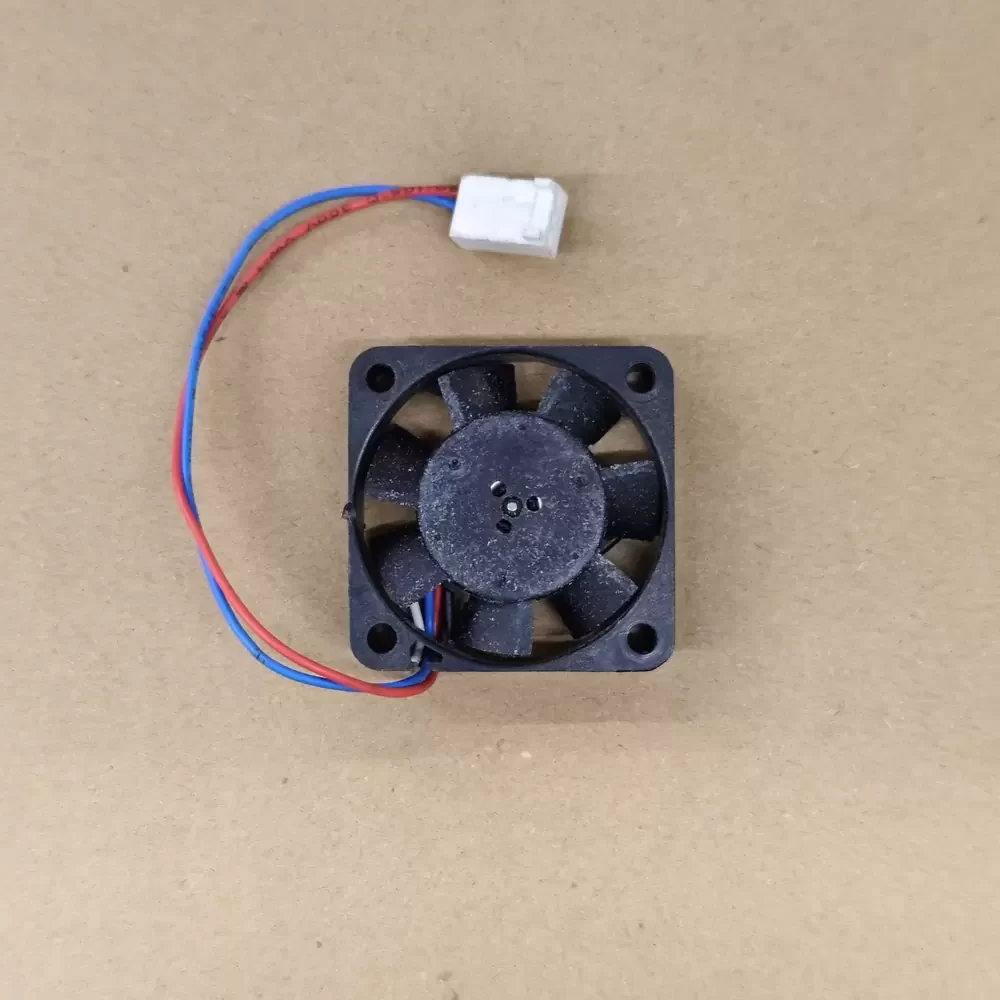

412F/2H ebmpapst 12VDC 0.8W 40x40x10mm DC Axial Fan

Description

The ebmpapst 412F/2H is a high-performance DC axial fan engineered for precision cooling in space-constrained industrial environments. Operating at a nominal 12VDC with a low power consumption of 0.8W (67mA), this 40x40x10mm unit delivers a significant airflow of 9m³/h (5.3CFM) at a rated speed of 6000RPM. It features an integrated open-collector tachometer sensor for real-time speed monitoring and a robust sleeve bearing system, ensuring a quiet 26dBA acoustic profile and an operational life expectancy of 45,000 hours at 40°C.

412F/2H Specifications
Model Number: 412F/2H
Brand: ebm-papst
Product Category: DC Axial Fans
Nominal Voltage: 12VDC
Voltage Range: 10 to 14VDC
Power Consumption: 0.8W
Nominal Current: 67mA
Air Flow: 9.0m³/h (5.3CFM)
Static Pressure: 32Pa
Rated Speed: 6000RPM
Noise Level: 26dBA
Dimensions: 40 x 40 x 10mm
Bearing Type: Sleeve Bearing
Termination: 3-Wire (Leads)
Wire Length: 310mm
Sensor Type: Speed Sensor (Tachometer / Open Collector)
IP Rating: IP20
Operating Temperature: -20 to +70°C
Storage Temperature: -40 to +80°C
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Weight: 0.017kg
Approvals: VDE, CSA, UL, CE

412F/2H Applications
Thermal management for high-density 1U/2U rack-mount servers, compact switch-mode power supplies (SMPS), and telecommunications enclosures. Direct integration into medical diagnostic equipment and portable industrial instrumentation requiring low-noise active cooling.” cooling.
