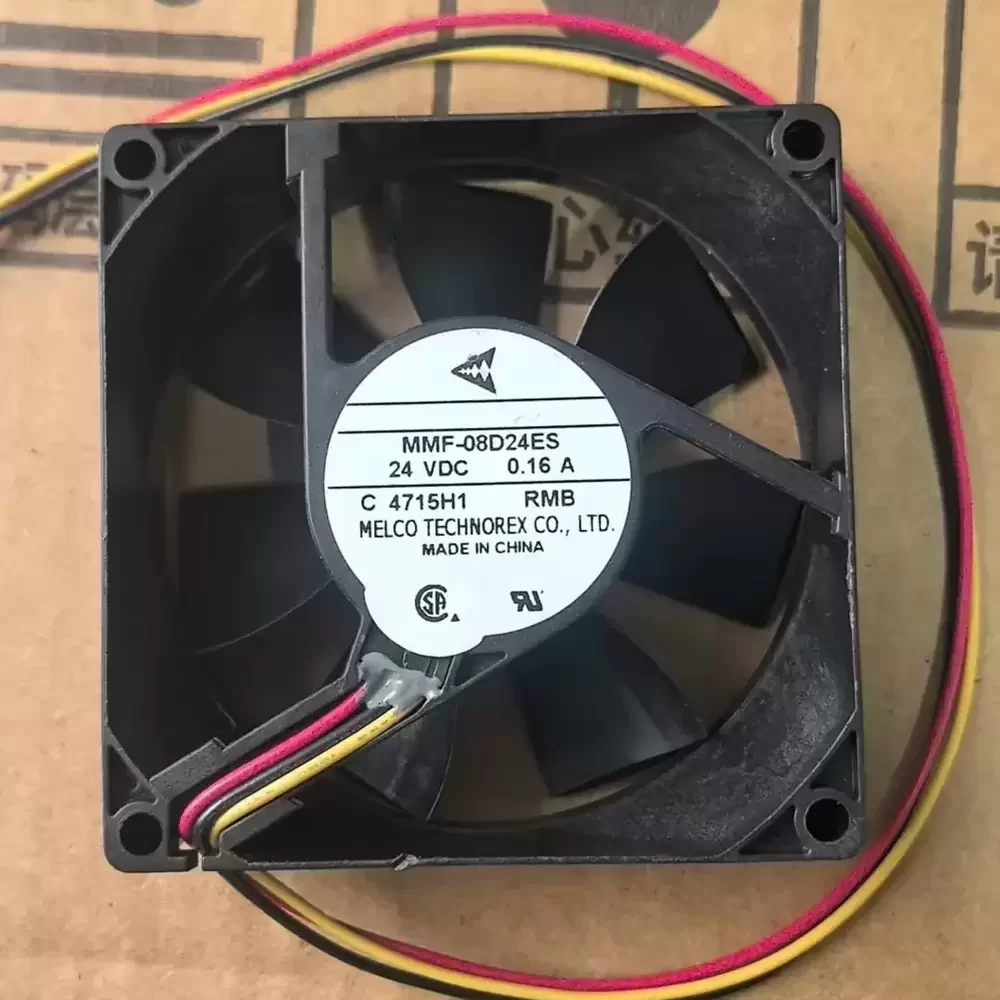

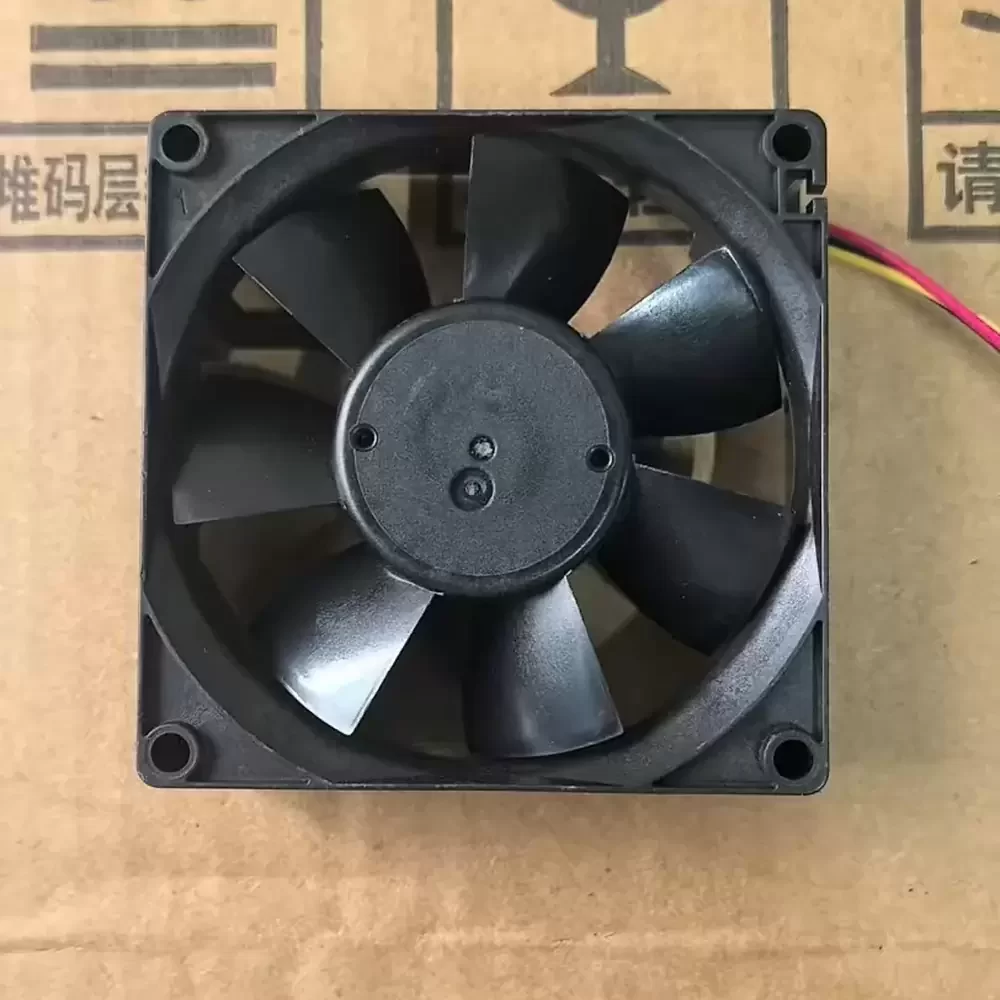

MMF-08D24E-RMB Mitsubishi 24V 0.16A 80x80x25mm DC Axial Fan

Description

Mitsubishi MMF-08D24E-RMB 80 x 80 x 25 mm DC axial fan operates at a nominal 24 VDC and 0.16 A, generating a 3.84 W power draw. The unit features a 3-wire interface with a tachometer output for precise rotational monitoring and utilizes a dual ball bearing mechanism to support continuous duty cycles. Constructed with a UL94V-0 flame-retardant plastic frame and impeller, the hardware integrates standard flange mounting holes for direct chassis installation.

MMF-08D24E-RMB Specifications
Model Number: MMF-08D24E-RMB
Brand: Mitsubishi (Melco Technorex)
Product Category: DC Axial Fan
Nominal Voltage: 24 VDC
Operating Voltage Range: 12 VDC to 27.6 VDC
Nominal Current: 0.16 A
Power Consumption: 3.84 W
Dimensions: 80 x 80 x 25 mm
Frame Size: 80 mm
Thickness: 25 mm
Wiring Configuration: 3-Wire
Signal Output: Tachometer / Speed Sensor
Bearing Type: Dual Ball Bearing
Housing Material: UL94V-0 Plastic
Impeller Material: UL94V-0 Plastic
Mounting Type: Flange Mount
Termination: Wire Leads
Operating Temperature: -10 °C to 70 °C
Storage Temperature: -40 °C to 70 °C
Weight: 85 g

MMF-08D24E-RMB Applications
Primary applications include integration into Mitsubishi variable frequency drives (VFDs) and industrial inverter control panels for active thermal dissipation. Deployed within CNC machine tool spindle controllers, automated factory robotics cabinets, and high-density power supply units, the component maintains critical operating temperatures for sensitive power electronics.
