Description

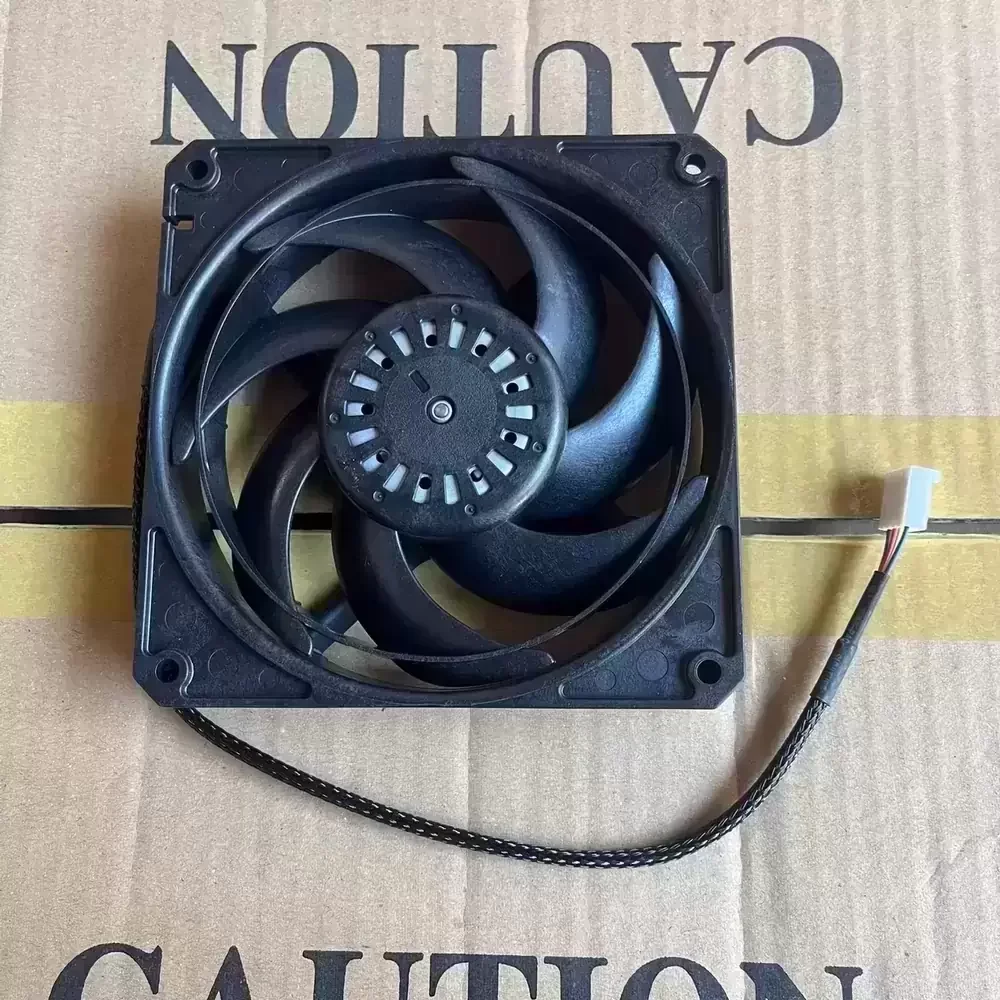

The Scythe D1225C12GT5400-P is a high-performance Axial Fan engineered in collaboration with Nidec Servo, belonging to the renowned Gentle Typhoon series. This unit utilizes a specialized double ball bearing architecture and a high-torque DC motor to deliver exceptional rotational stability and longevity under continuous load. The fan features a unique impeller design with a large motor hub and swept blades, specifically optimized to generate high static pressure while mitigating the high-frequency noise spectrum typically associated with high-speed operation. Its structural rigidity is reinforced to minimize vibration transfer, making it an ideal solution for applications requiring substantial thermal impedance reduction and focused airflow delivery in dense environments.
Model Number: D1225C12GT5400-P
Brand: Scythe (Nidec Servo)
Product Type: Axial Fan
Series: Gentle Typhoon (High Speed)
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 1.14 A
Power Consumption: 13.68 W
Rated Speed: 5400 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 150.0 CFM (254.8 m³/h / 4.25 m³/min)
Max. Static Pressure: 15.24 mmH₂O (149.5 Pa / 0.60 inH₂O)
Dimensions: 120 x 120 x 25 mm
Weight: 205 g
Life Expectancy: 100,000 Hours at 35°C
Speed Control: PWM (Pulse Width Modulation)
Noise Level: 50.5 dBA
Termination: 4-Wire Lead with Connector
Housing Material: PBT (UL94V-0)
Blade Material: ABS Plastic
Operating Temperature: -10°C to +70°C
Storage Temperature: -25°C to +70°C
Mounting Orientation: Any
Ingress Protection: Standard IP20
Motor Protection: Locked Rotor Protection, Polarity Protection
The D1225C12GT5400-P is specifically designed for high-density thermal management scenarios where overcoming airflow resistance is critical. Common applications include server chassis cooling, high-performance workstation radiators, and industrial cabinet ventilation. The high static pressure capabilities of the D1225C12GT5400-P make it particularly effective for pushing air through restrictive heatsinks, dense filters, and tightly packed electronic enclosures found in telecommunications and CNC machinery.
