Description
The SERVO D1238B48BAZP-00 is a DC Axial Fan engineered for rigorous industrial thermal management applications requiring substantial static pressure and volumetric airflow. This unit utilizes a precision dual ball bearing architecture to ensure operational longevity and reduced frictional coefficients under continuous high-speed rotation. The aerodynamic impeller is housed within a structurally rigid 120mm frame, optimized to overcome high system impedance found in dense electronic enclosures. Operating at a nominal 48VDC with a power consumption of 26.88W, it delivers robust cooling performance essential for maintaining thermal equilibrium in power electronics. The fan features a thermoplastic PBT housing rated to UL94V-0 standards, ensuring fire safety and durability in harsh operating environments.

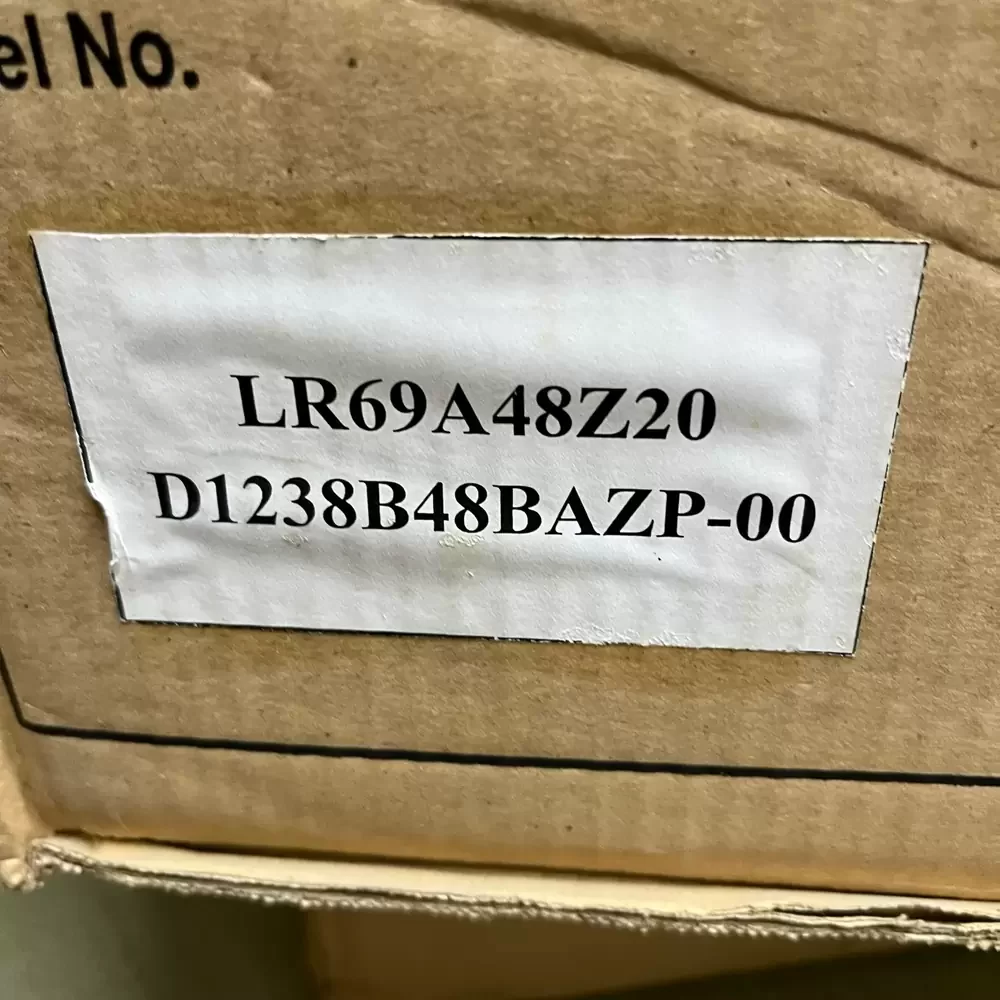

Model Number: D1238B48BAZP-00
Brand: SERVO (Nidec Servo)
Product Type: DC Axial Fan
Rated Voltage: 48VDC
Voltage Range: 28.0 – 56.0 VDC
Rated Current: 0.56 A
Power Consumption: 26.88 W
Rated Speed: 4200 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 160.0 CFM (271.8 m³/h / 4.53 m³/min)
Max. Static Pressure: 18.5 mmH₂O (181.4 Pa / 0.73 inH₂O)
Dimensions: 120x120x38mm
Weight: 330 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 56.0 dB(A)
Housing Material: PBT (UL94V-0)
Impeller Material: PBT (UL94V-0)
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Safety Certifications: UL, cUL, TUV, CE
Motor Protection: Locked Rotor Protection, Reverse Polarity Protection
The D1238B48BAZP-00 is specifically designed for high-load applications such as variable frequency drive (VFD) inverters and large-scale power supplies where efficient heat dissipation is critical. Additionally, the D1238B48BAZP-00 serves effectively in telecommunications cabinets, server rack ventilation systems, and CNC machinery control panels, ensuring reliable operation of sensitive components by preventing thermal throttling in high-density configurations.
