Description

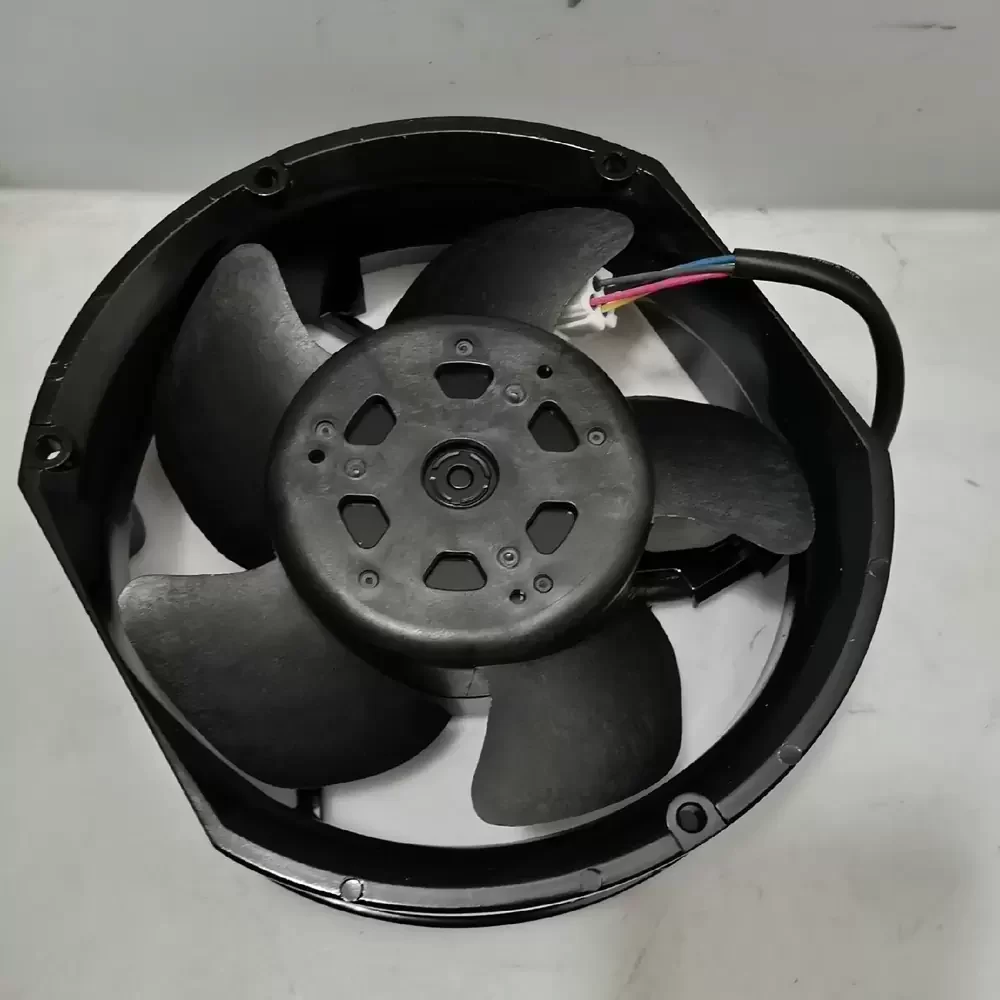

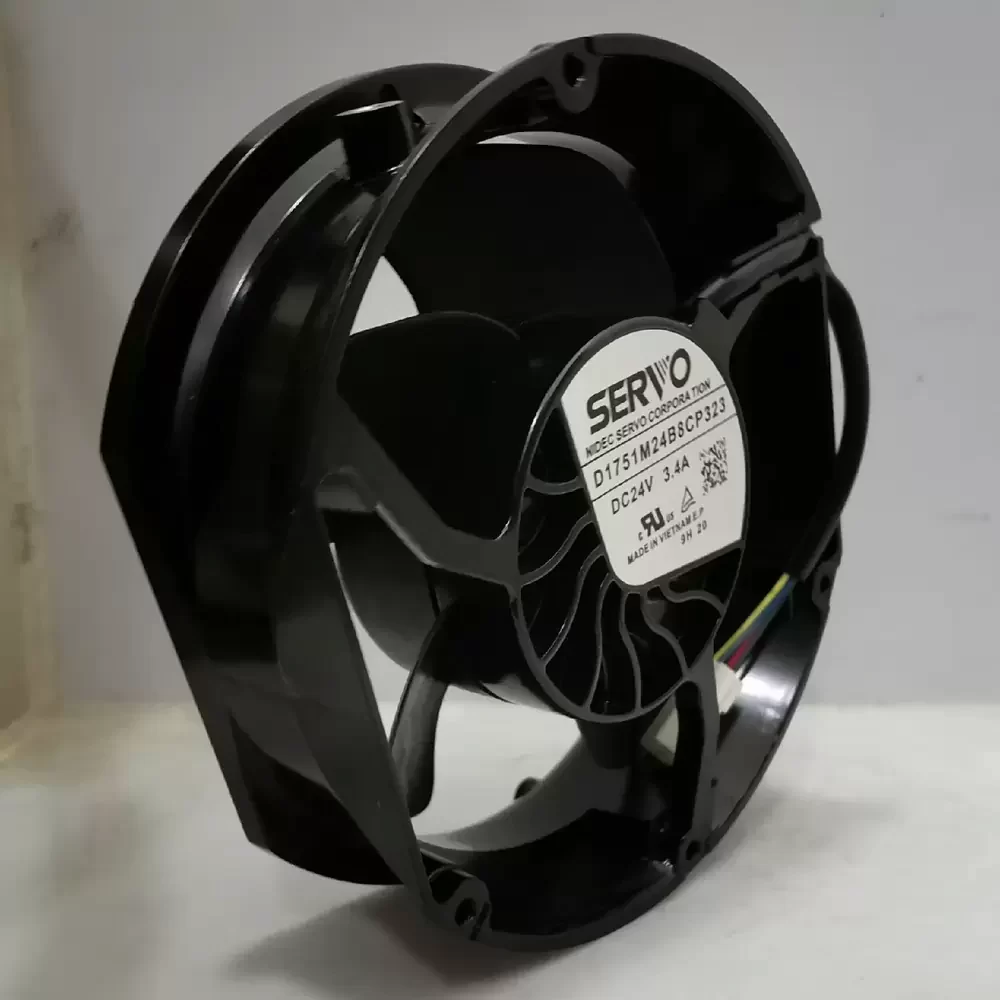

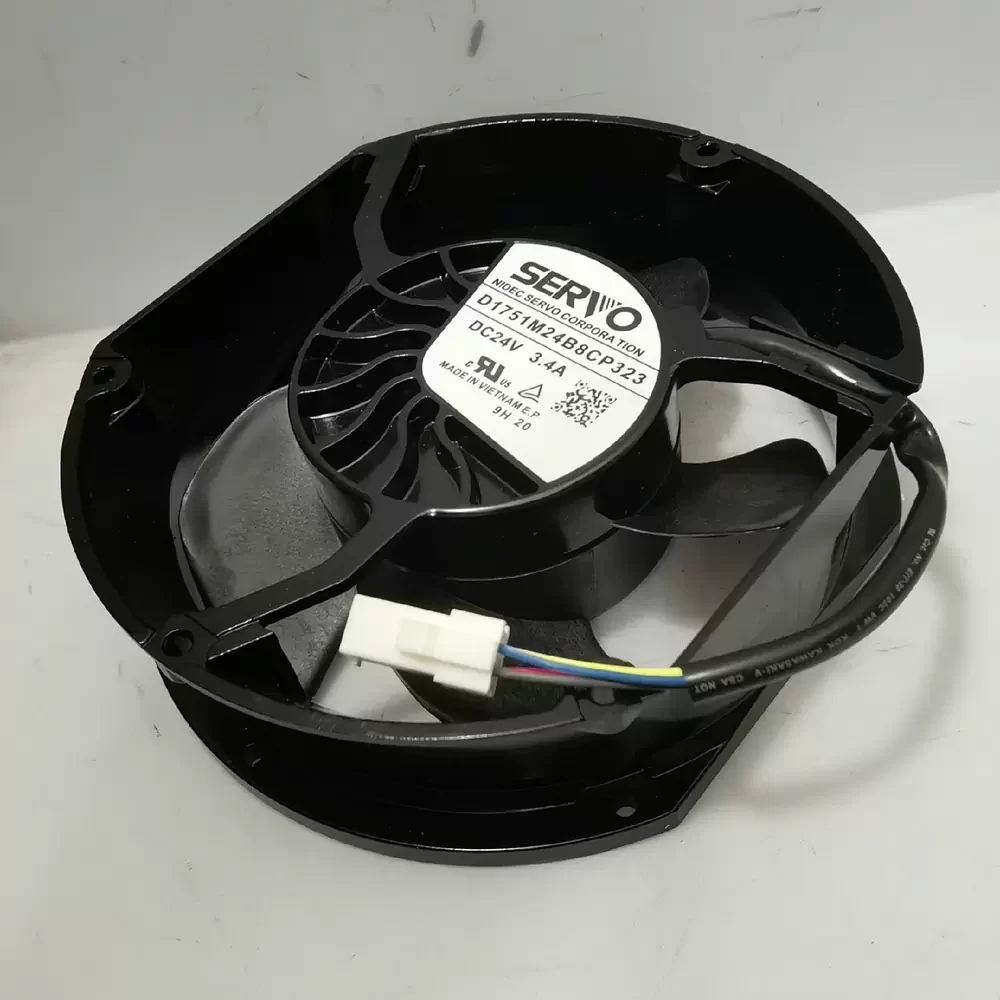

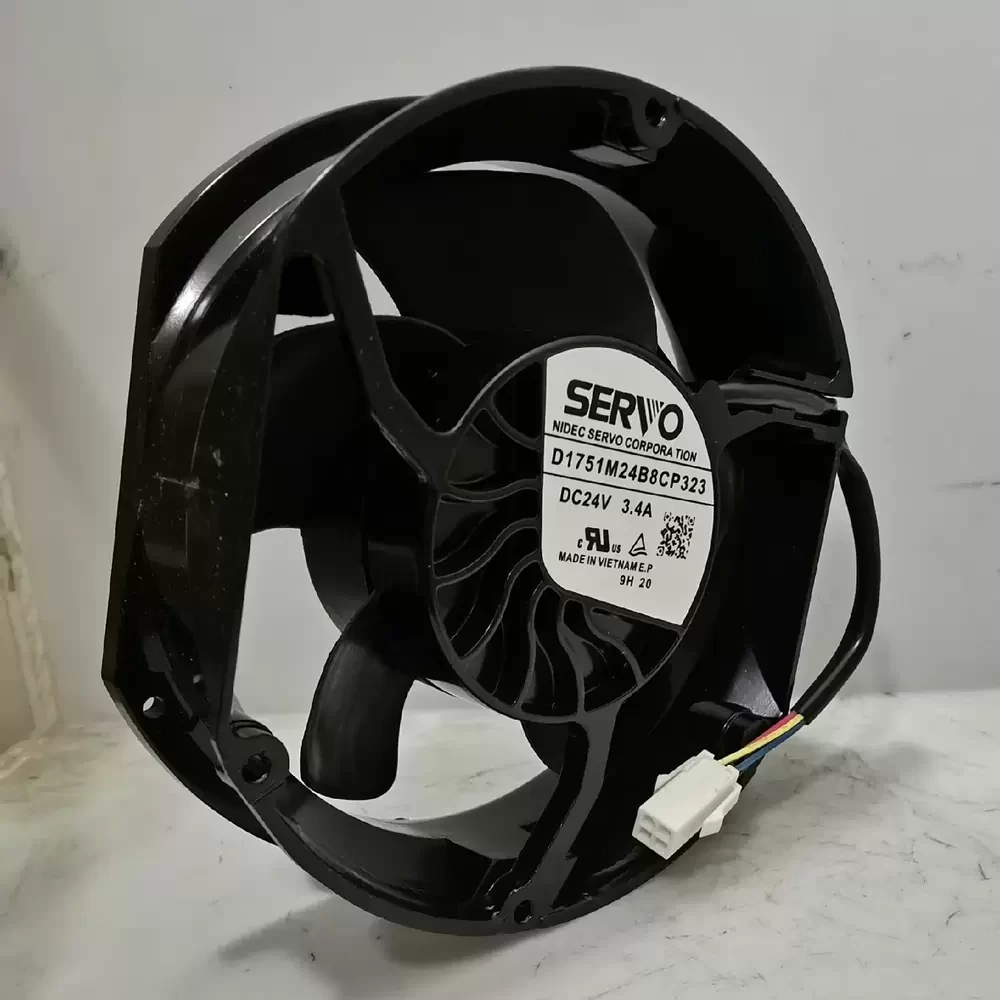

The Nidec Servo D1751M24B8CP323 is a robust DC Axial Fan engineered for critical thermal management in industrial power electronics. Utilizing advanced Brushless DC motor technology and a precision dual ball bearing architecture, this unit ensures exceptional structural rigidity and longevity under continuous operation. The aerodynamic impeller design is optimized to deliver high-density airflow and overcome significant system impedance, making it a premier solution for maintaining optimal operating temperatures in variable frequency drives and high-load electrical cabinets.
Model Number: D1751M24B8CP323
Brand: Nidec Servo (Japan Servo)
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 3.4 A
Input Power: 81.6 W
Rated Speed: 5500 RPM (Estimated)
Bearing Type: Dual Ball Bearing
Max. Air Flow: 300 CFM (Estimated)
Dimensions: 172mm x 150mm x 51mm
Frame Material: Aluminum Die-Cast
Impeller Material: Reinforced Plastic (UL94V-0)
Termination: 4-Wire Leads
Speed Control: PWM / Tachometer Output
Ingress Protection: IP20
Operating Temperature: -10°C to +70°C
Application: ABB Inverter Replacement
This high-performance cooling fan is specifically deployed in heavy-duty industrial environments, serving as a direct replacement component for ABB variable frequency drives and power inverters. The D1751M24B8CP323 effectively dissipates heat from sensitive IGBT modules and rectifier bridges, preventing thermal throttling in automation systems. Furthermore, the D1751M24B8CP323 is utilized in telecommunications racks, server enclosures, and CNC control panels where reliable, high-static pressure air movement is required for system stability.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
