Description

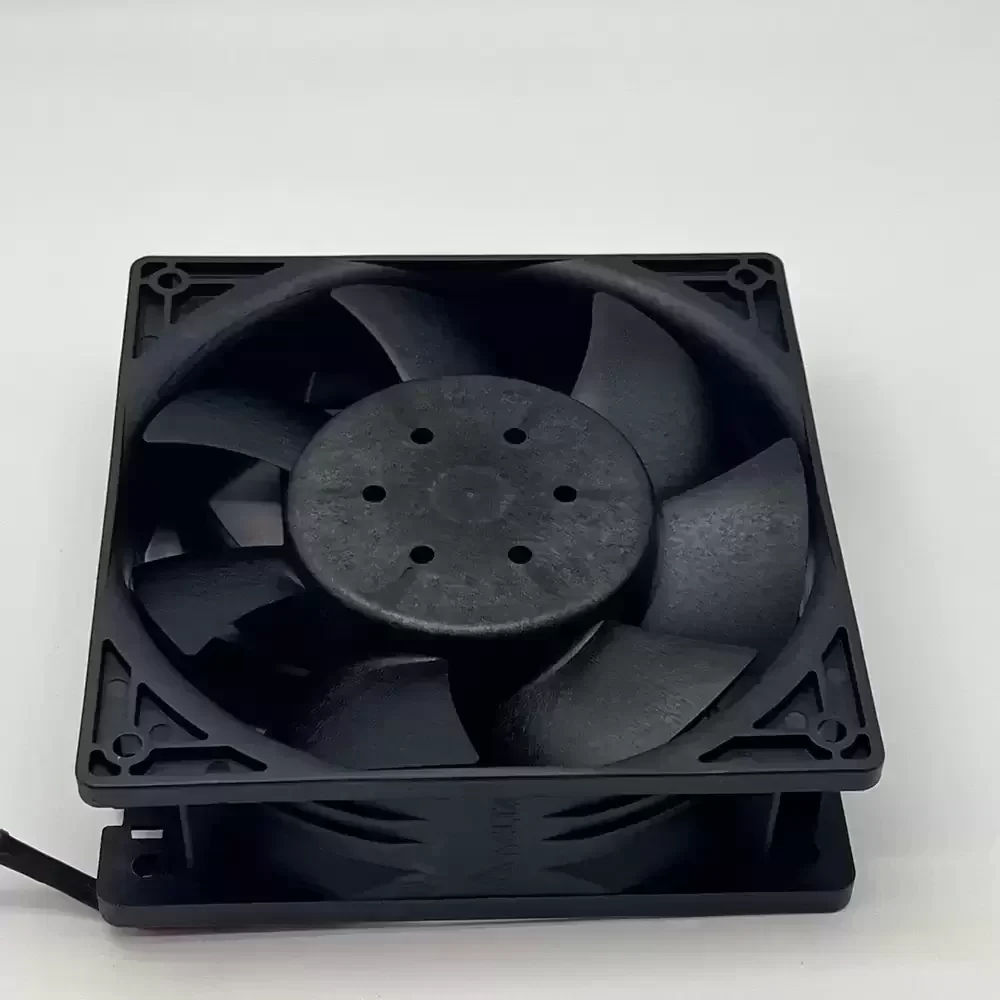

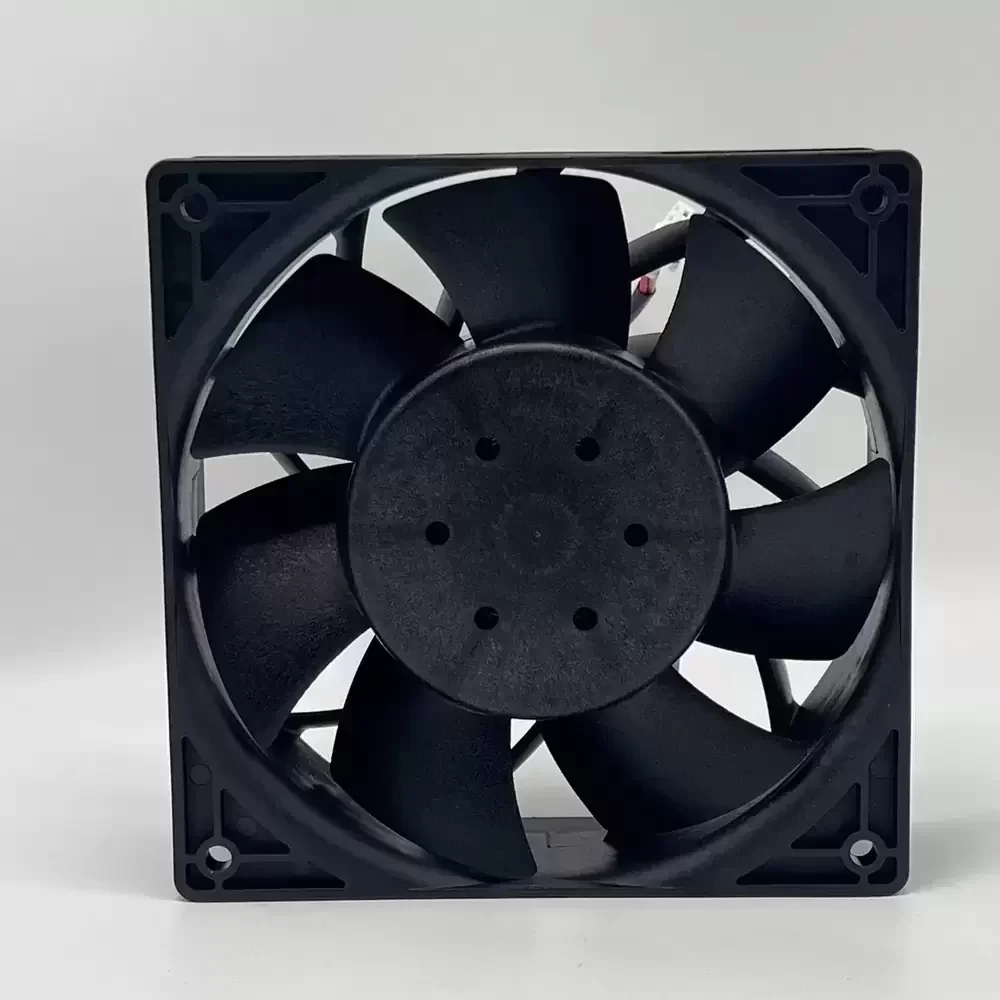

The Delta PFB1224SE-00P5 is a high-performance DC axial fan engineered for mission-critical thermal management in demanding industrial environments. Utilizing advanced brushless DC motor technology and a robust dual ball bearing architecture, this unit ensures exceptional longevity and structural rigidity under continuous high-speed operation. The aerodynamic impeller design is optimized to deliver superior static pressure, effectively overcoming high thermal impedance in densely packed electronic enclosures. Designed for heavy-duty applications, the PFB1224SE-00P5 provides reliable forced convection cooling, making it a critical component for maintaining operational stability in power conversion systems and server infrastructure.
Model Number: PFB1224SE-00P5
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 4.0 A
Power Input: 96.0 W
Rated Speed: 5500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 252.85 CFM (429.5 m³/h / 7.16 m³/min)
Max. Static Pressure: 35.88 mmH₂O (351.8 Pa / 1.41 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 380 g
Noise Level: 66.5 dB-A
Frame Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Ingress Protection: IP55
Speed Control: PWM Control / Tachometer Output
Wire Termination: 4-Wire Leads
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Life Expectancy: 70,000 Hours at 40°C
Safety Certifications: UL, cUL, TUV, CE
Protection: Locked Rotor Protection, Reverse Polarity Protection
The PFB1224SE-00P5 is specifically calibrated for high-impedance systems requiring substantial static pressure, such as variable frequency drive (VFD) inverters and industrial automation control cabinets. Its robust airflow capabilities make the PFB1224SE-00P5 essential for cooling server racks, telecommunications base stations, and high-wattage power supplies where component density restricts natural convection. Additionally, this model serves effectively in CNC machinery and medical instrumentation, ensuring reliable thermal regulation for sensitive electronic components.
