Description

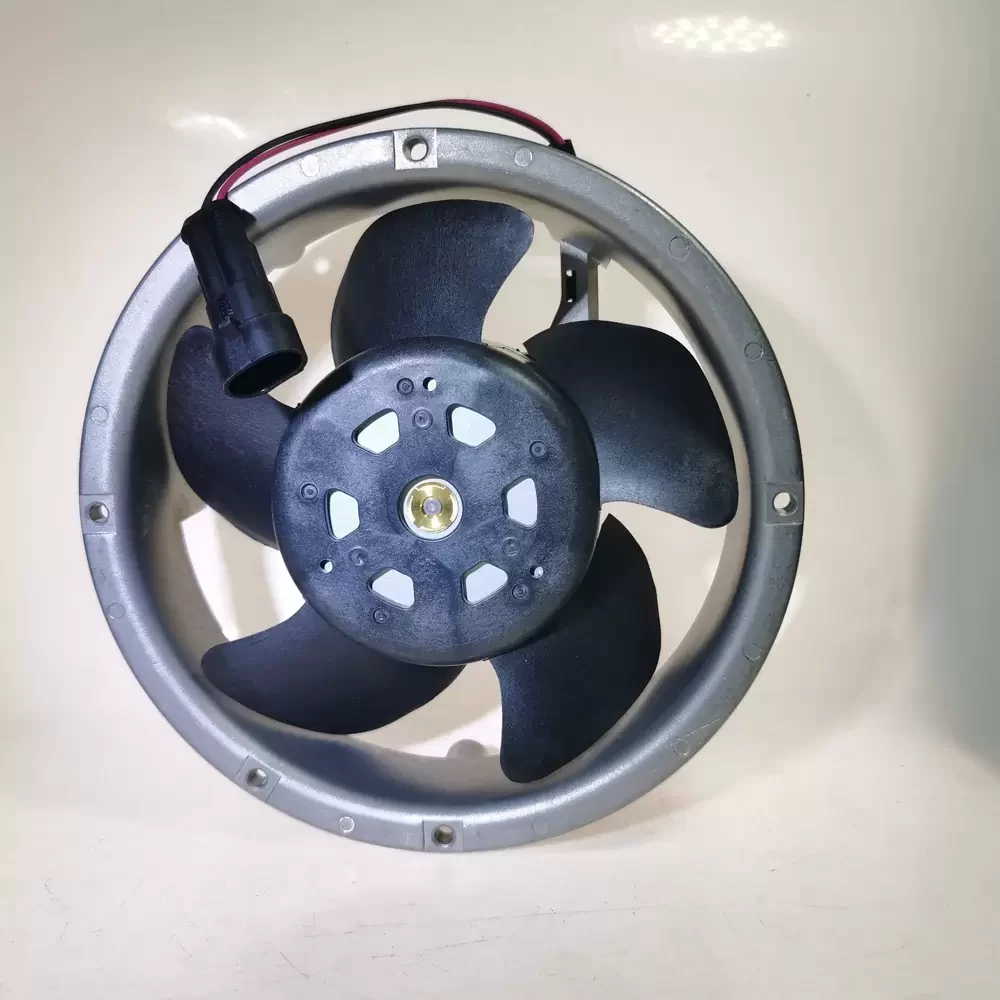

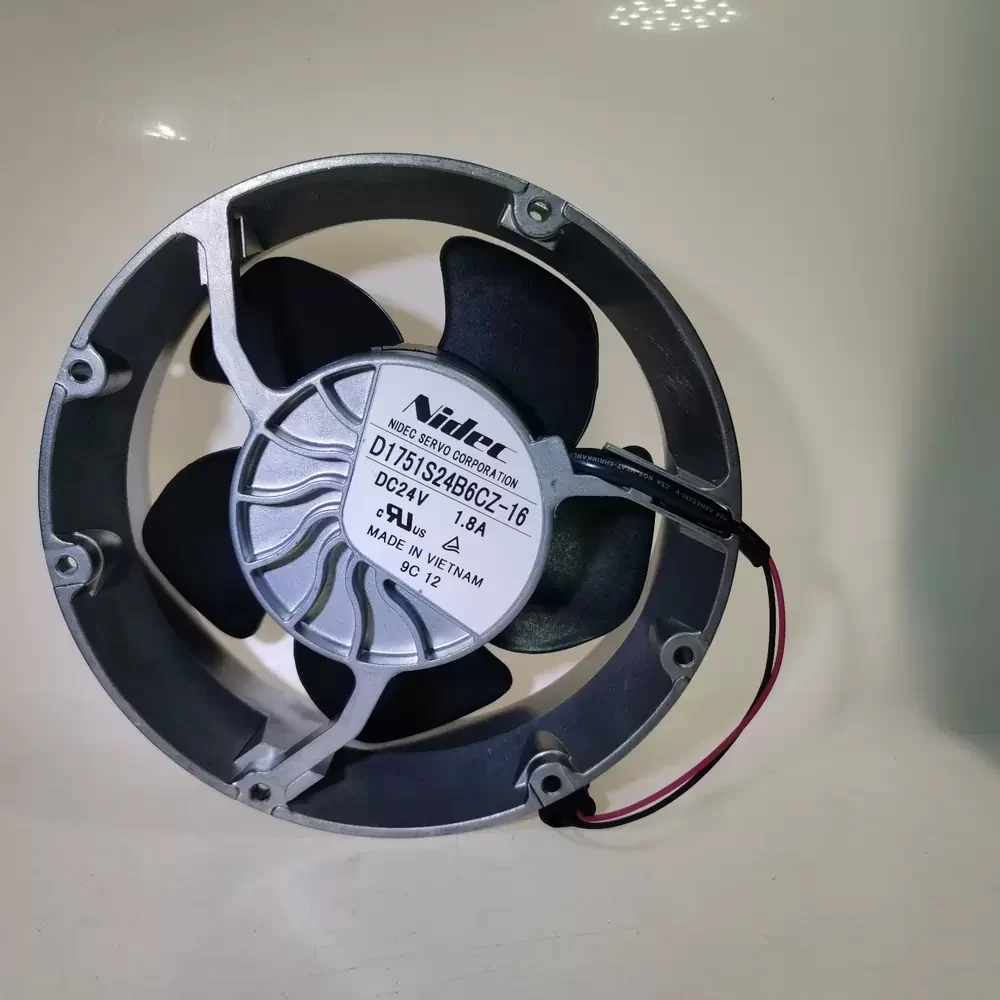

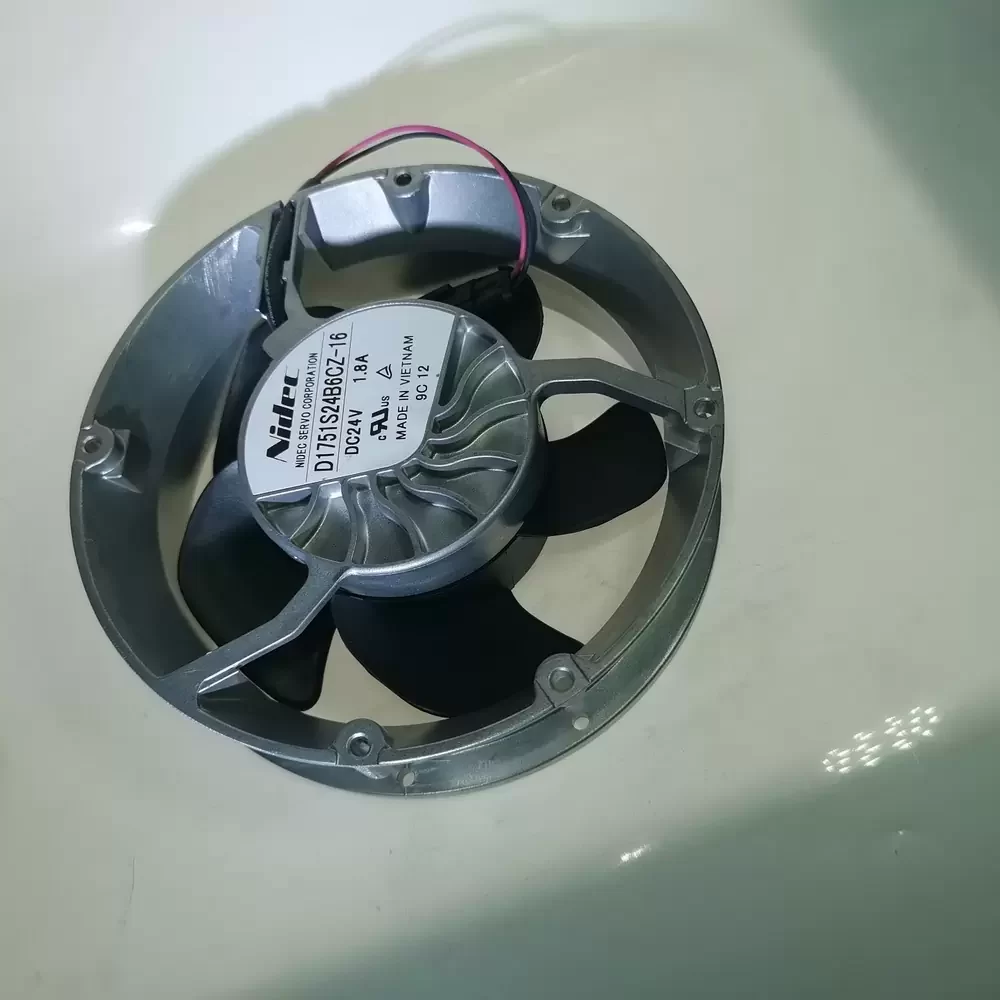

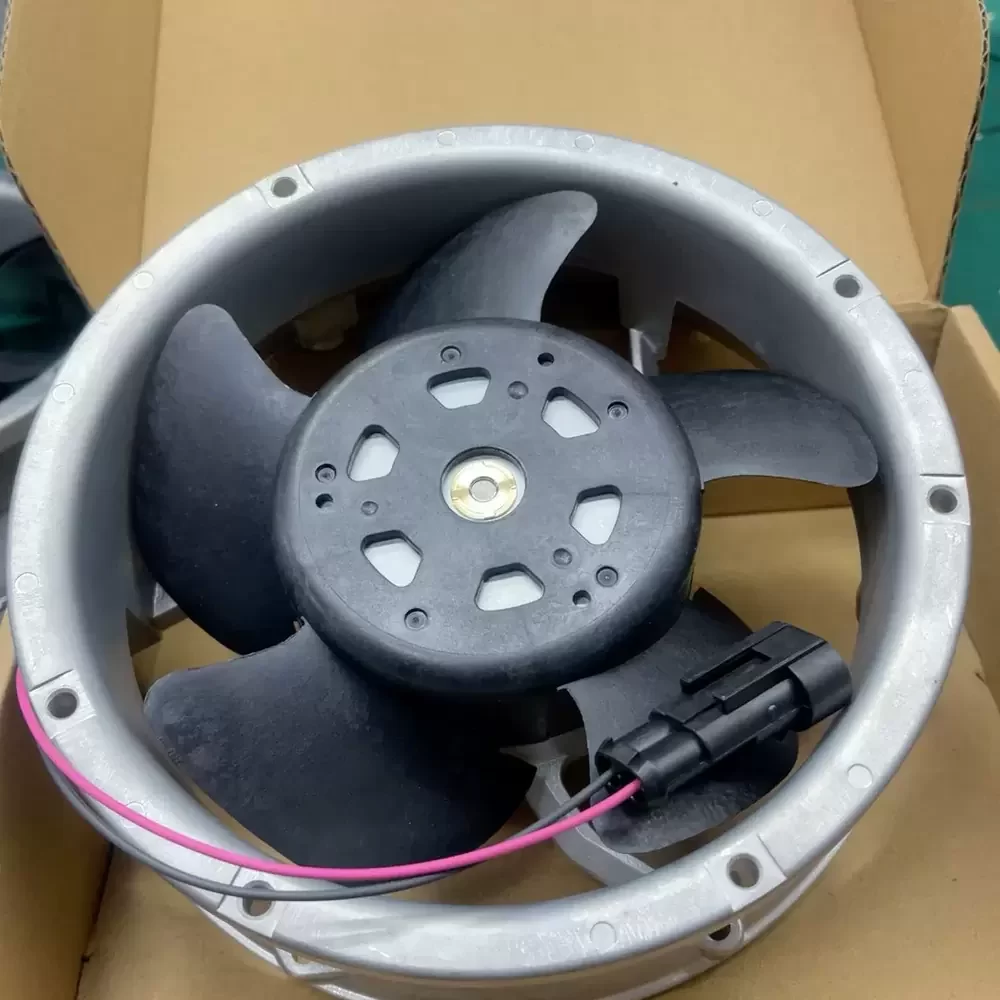

The Nidec D1751S24B6CZ-16 is a high-performance industrial axial fan designed for critical thermal management in power electronics. Known as a “violence fan” due to its high rotational speed and aggressive airflow capabilities, this unit features a robust aluminum die-cast frame and precision ball bearings to ensure longevity under continuous operation. It is optimized for systems requiring high static pressure to overcome significant airflow resistance.
Manufacturer: Nidec Corporation
Model Number: D1751S24B6CZ-16
Product Type: DC Axial Fan
Rated Voltage: 24V DC
Operating Voltage Range: 14.0 – 27.6 VDC
Rated Current: 1.8A
Input Power: 43.2W
Dimensions: 172mm x 150mm x 51mm
Bearing System: Dual Ball Bearing
Termination: 2-Wire Lead (Red/Black)
Frame Material: Aluminum Die-Cast
Impeller Material: Reinforced Plastic (UL94V-0)
Max. Air Flow: 235.0 CFM (399.2 m³/h / 6.65 m³/min)
Max. Static Pressure: 22.5 mmH₂O (220.6 Pa / 0.88 inH₂O)
Speed: 4100 RPM
Noise Level: 58.0 dB(A)
Weight: 850g
The D1751S24B6CZ-16 is engineered for rigorous industrial environments where reliability is paramount. Its primary application lies in the cooling of variable frequency drives (VFDs) and large-scale frequency inverters, where maintaining optimal operating temperatures is crucial for component lifespan. Additionally, the D1751S24B6CZ-16 is suitable for high-density server racks, telecommunications cabinets, and power supply units that require substantial airflow to dissipate heat generated by high-current operations.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
