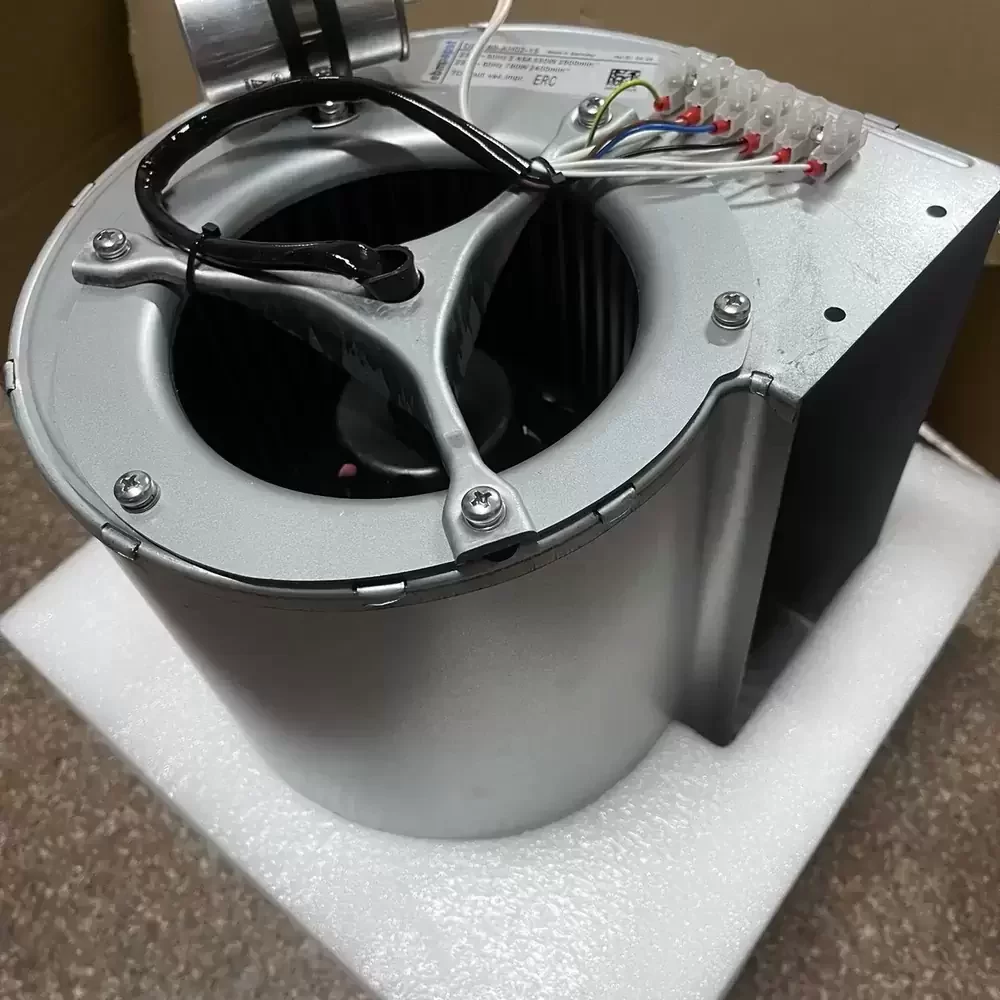

D2E160-AH02-15 ebmpapst 230VAC 550W Centrifugal Blower

Description

ebmpapst D2E160-AH02-15 is a dual-inlet centrifugal blower featuring a 160 mm diameter impeller, 230 VAC nominal voltage, and 550 W power input. The unit is constructed with a hot-galvanized sheet steel housing and impeller, utilizing a maintenance-free ball bearing system designed for horizontal shaft mounting. It incorporates a 4-pole M2E074-LA motor with an integrated thermal overload protector wired internally. The forward-curved blades are designed for high-pressure stability and optimized airflow performance within a compact scroll housing.

D2E160-AH02-15 Specifications
Model: D2E160-AH02-15
Brand: ebmpapst
Motor: M2E074-LA
Phase: 1 ~
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Speed: 2500 / 2400 RPM
Power Consumption: 550 / 730 W
Current Draw: 2.45 / 3.2 A
Motor Capacitor: 12 µF
Capacitor Voltage: 400 VDB
Min. Back Pressure: 400 Pa
Max. Ambient Temperature: 90 °C
Min. Ambient Temperature: -25 °C
Airflow: 1200 m³/h
Impeller Diameter: 160 mm
Mass: 9.7 kg
Housing Material: Hot-galvanized sheet steel
Impeller Material: Hot-galvanized sheet steel
Rotor Surface: Coated in black
Direction of Rotation: Counter-clockwise
Type of Protection: IP 00
Insulation Class: F
Motor Bearing: Ball bearing
Motor Protection: Thermal overload protector (TOP) wired internally
Mounting Position: Shaft horizontal
Mode: S1

D2E160-AH02-15 Applications
Primary applications include integration into ABB ACS800 and ACS880 series frequency converter cooling systems, industrial HVAC air handling units, and cleanroom ventilation modules. Deployed within high-power electrical cabinets and telecommunications cooling racks to ensure thermal regulation of power electronics.
