Description

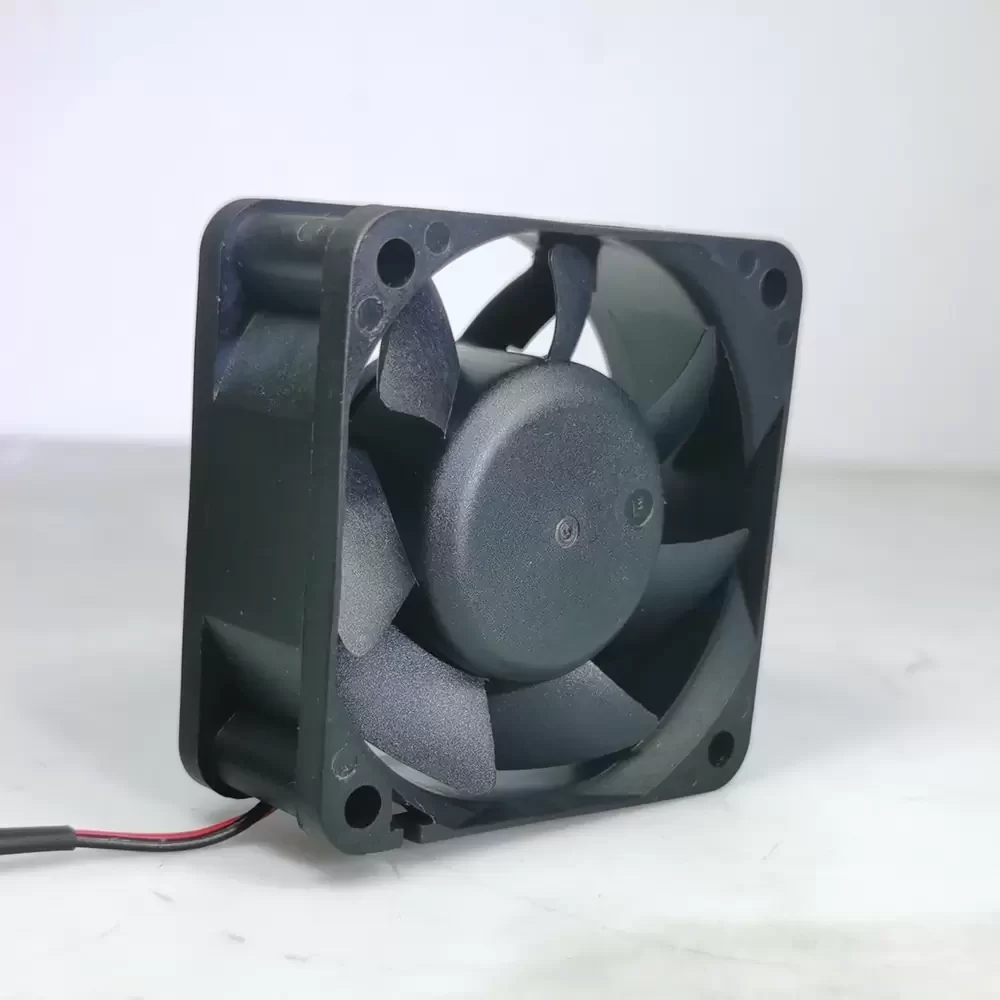

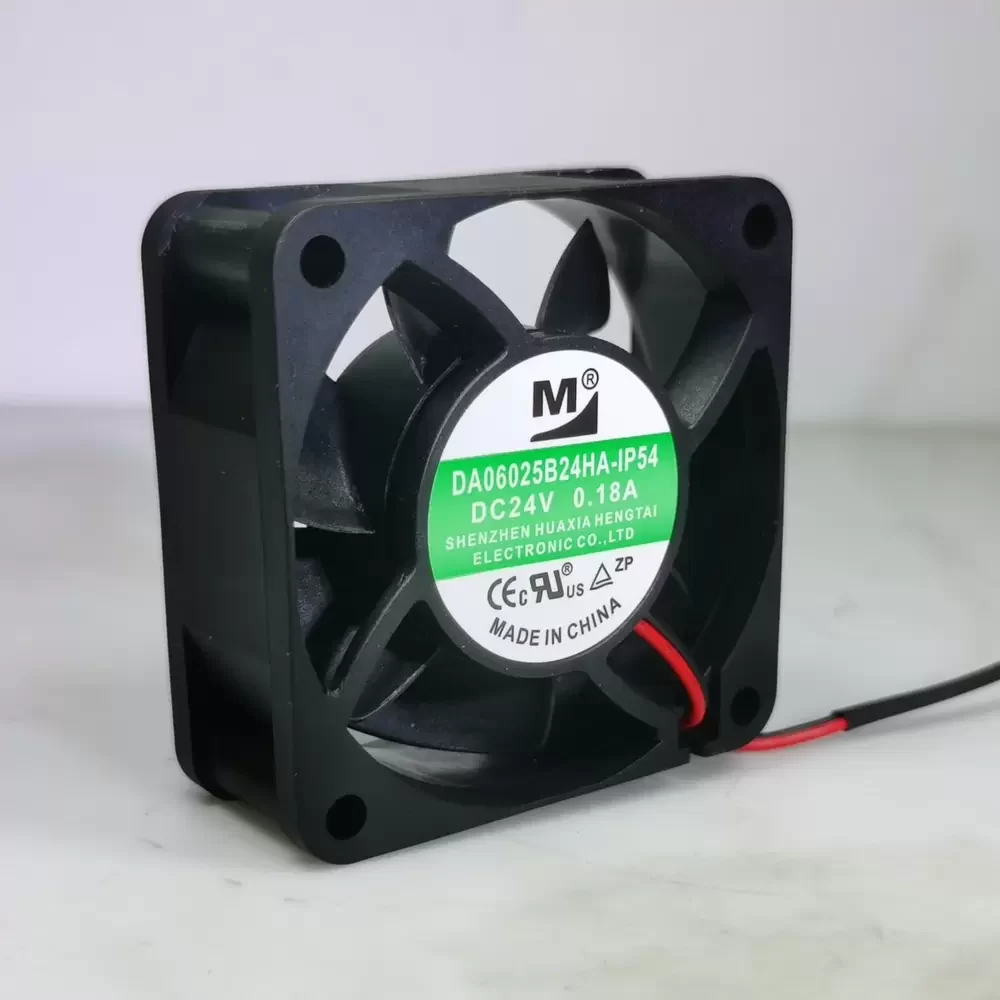

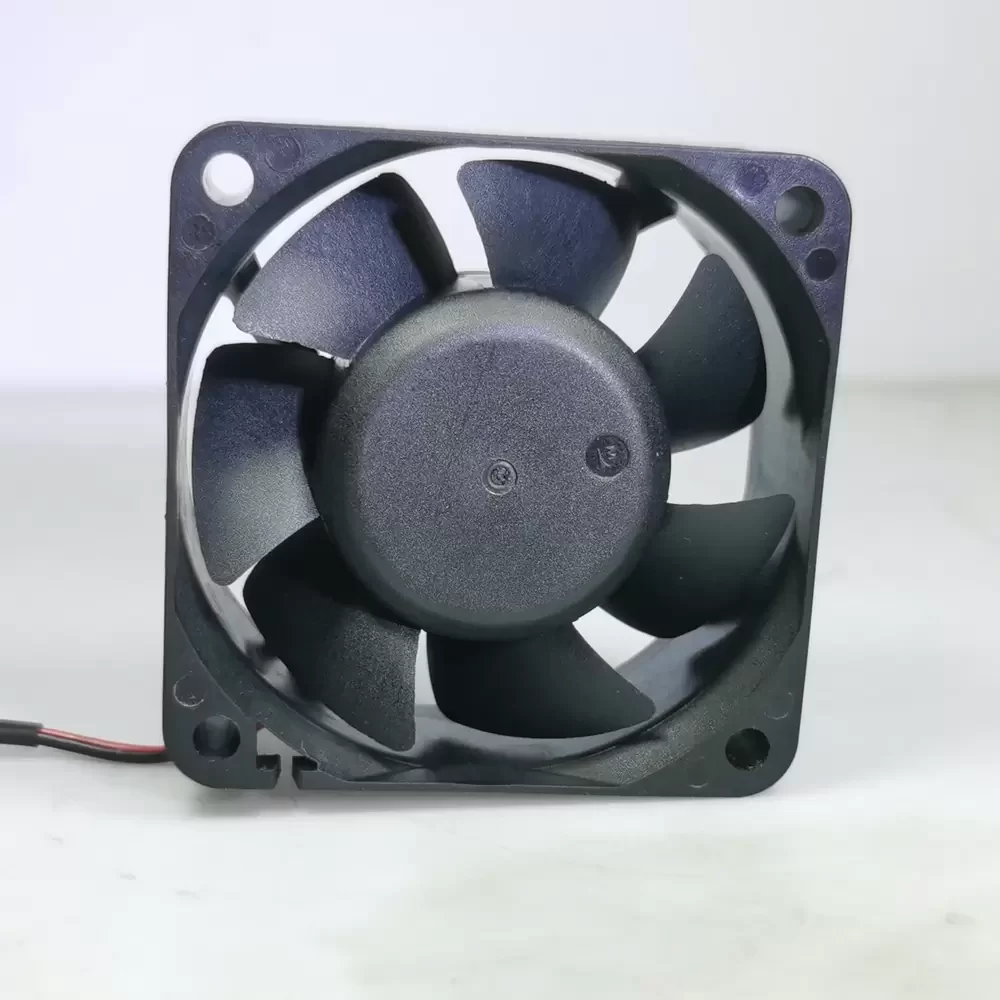

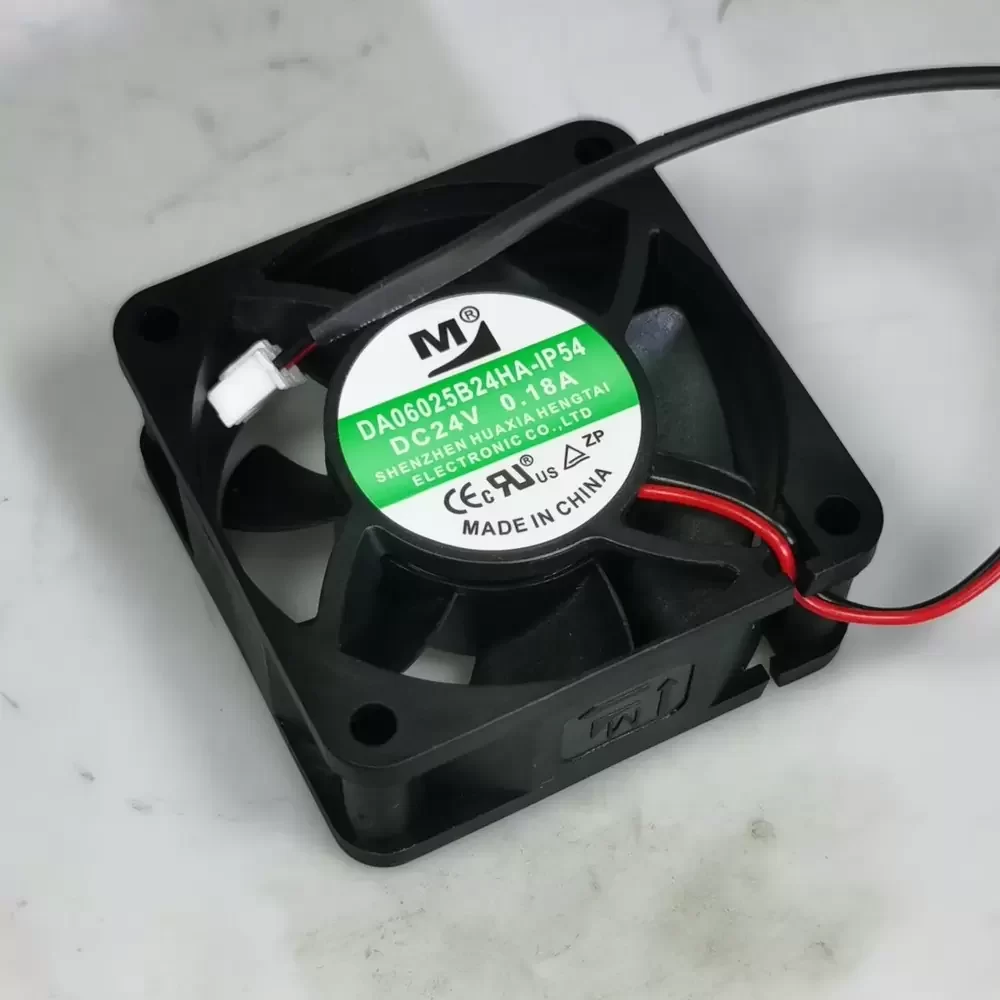

The Huaxia Hengtai DA06025B24HA-IP54 is a precision-engineered DC Axial Fan designed for critical thermal management in rigorous industrial environments. Utilizing a robust Dual Ball Bearing architecture, this unit ensures minimized rotational friction and significantly extended operational longevity under continuous load. The aerodynamic impeller design is optimized to deliver high static pressure capabilities while maintaining efficient airflow dynamics, reducing thermal impedance within dense enclosures. Encased in a durable housing with IP54 ingress protection, the fan offers superior resistance to dust and moisture, ensuring structural rigidity and reliable performance in challenging operational conditions.
Model Number: DA06025B24HA-IP54
Brand: Huaxia Hengtai
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.18 A
Power Input: 4.32 W
Rated Speed: 5000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 23.5 CFM (39.9 m³/h / 0.66 m³/min)
Max. Static Pressure: 6.8 mmH₂O (66.6 Pa / 0.27 inH₂O)
Dimensions: 60x60x25mm
Weight: 65 g
Life Expectancy: 50,000 Hours at 40°C
Ingress Protection: IP54
Noise Level: 36 dBA
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Termination: 2-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
The DA06025B24HA-IP54 is specifically engineered for high-demand industrial applications requiring reliable heat dissipation in compact footprints. It is frequently utilized in variable frequency drives (VFDs), server racks, and automation control cabinets where internal component density restricts airflow. The IP54 rating makes the DA06025B24HA-IP54 particularly suitable for CNC machinery and power supply units operating in dusty or humid factory environments, ensuring component stability and system longevity.
