Description

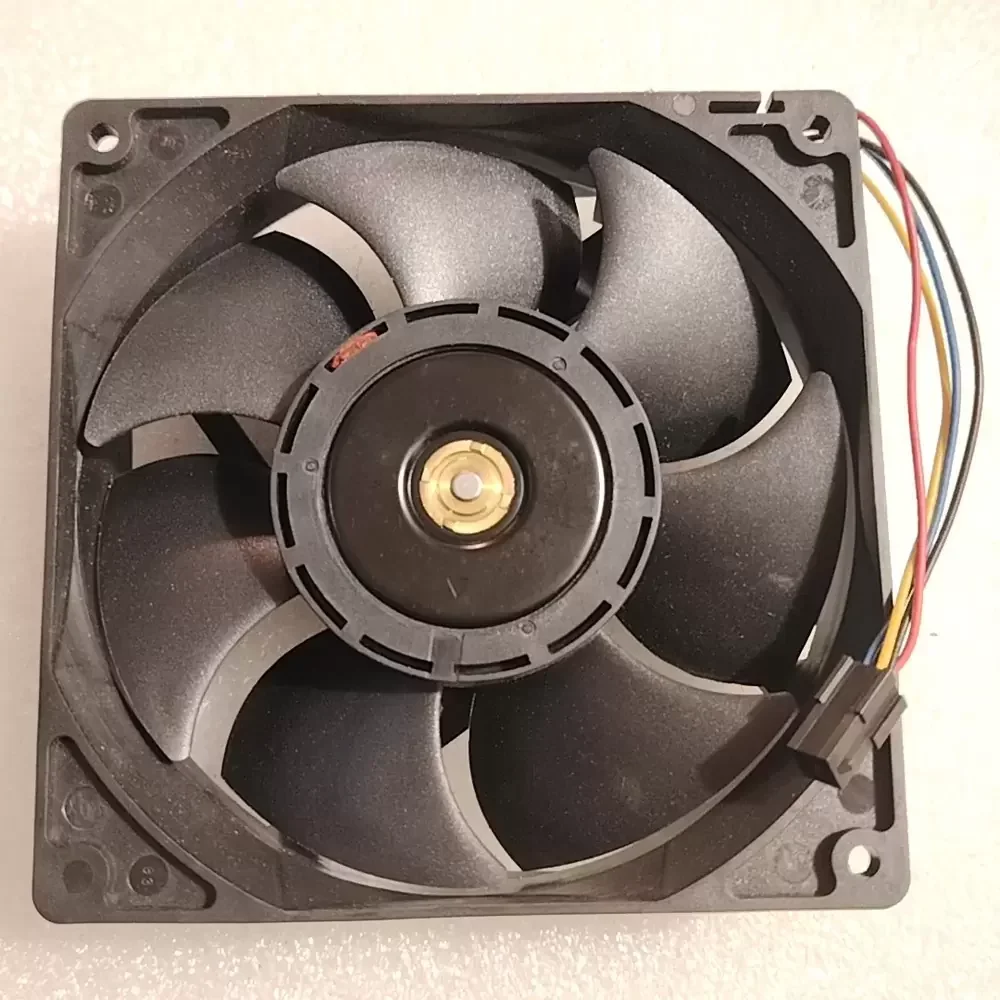

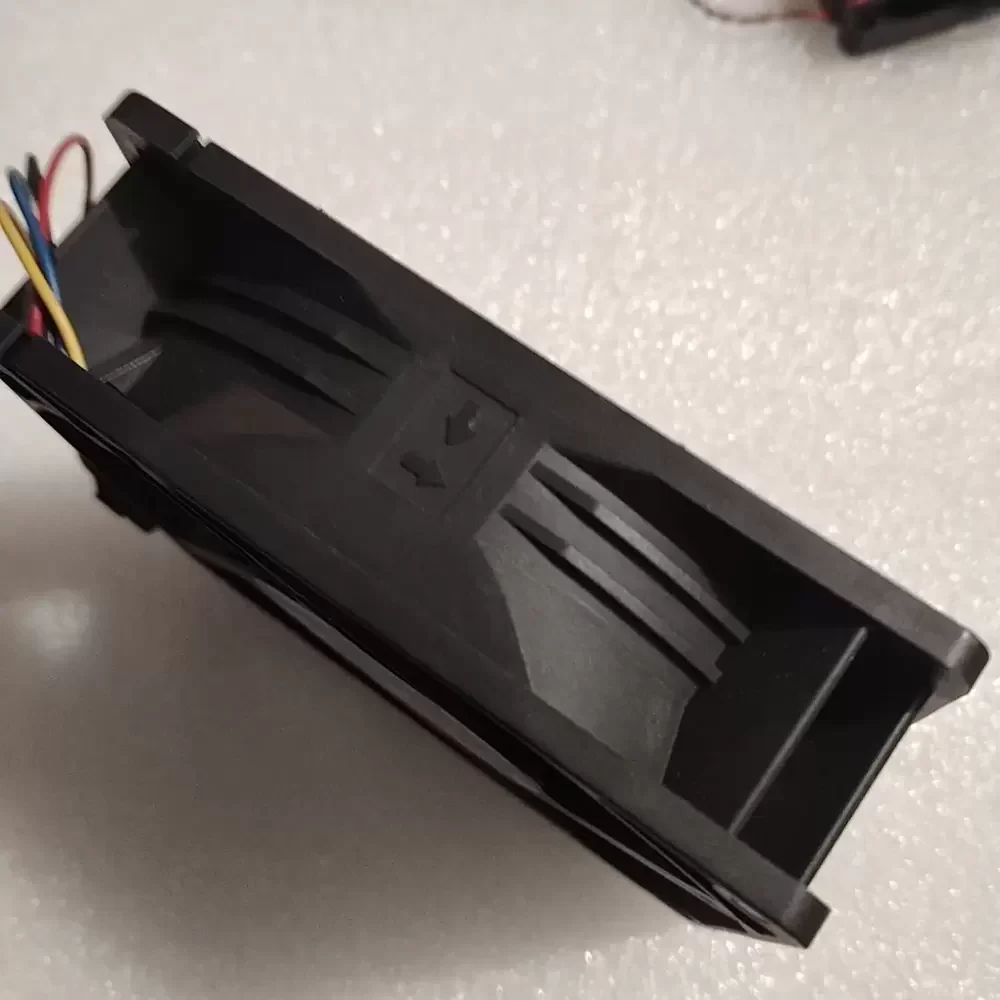

The AVC DATA1338B4H-S007 is a high-capacity DC axial fan engineered for critical thermal management in industrial and enterprise-grade electronics. Built upon a robust dual ball bearing architecture, this unit offers superior rotational stability and significantly reduced frictional wear compared to sleeve bearing alternatives, ensuring extended operational lifecycles even under continuous duty. The aerodynamic impeller geometry is optimized to deliver high static pressure, effectively overcoming thermal impedance in densely packed enclosures. Featuring a 4-wire configuration, the DATA1338B4H-S007 supports Pulse Width Modulation (PWM) for precise speed control, allowing systems to dynamically balance airflow requirements against acoustic output. Its structural rigidity and compliance with industrial safety standards make it an ideal solution for mitigating heat in high-power electromechanical systems.
Model Number: DATA1338B4H-S007
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.65 A
Power Input: 15.6 W
Rated Speed: 4200 RPM (Nominal)
Max. Air Flow: 156.0 CFM (265 m³/h)
Max. Static Pressure: 14.5 mmH₂O (142 Pa / 0.57 inH₂O)
Dimensions: 127 x 127 x 38 mm
Bearing Type: Dual Ball Bearing
Speed Control: 4-Wire PWM / Tachometer Output
Termination: 4-Wire Leads with Connector
Noise Level: 53 dBA
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Mounting Orientation: Any
Ingress Protection: IP54
Safety Certifications: UL, cUL, TUV, CE
Protection: Locked Rotor Protection, Polarity Protection
The DATA1338B4H-S007 is widely utilized in high-density server racks and telecommunications infrastructure where reliability is non-negotiable. Its high airflow capacity makes it particularly effective for cooling variable frequency drives (VFDs), industrial power supplies, and CNC control cabinets. Medical imaging equipment and network storage arrays also benefit from the consistent thermal dissipation provided by the DATA1338B4H-S007, ensuring sensitive components remain within safe operating temperature ranges to prevent thermal throttling or hardware failure.
