Description

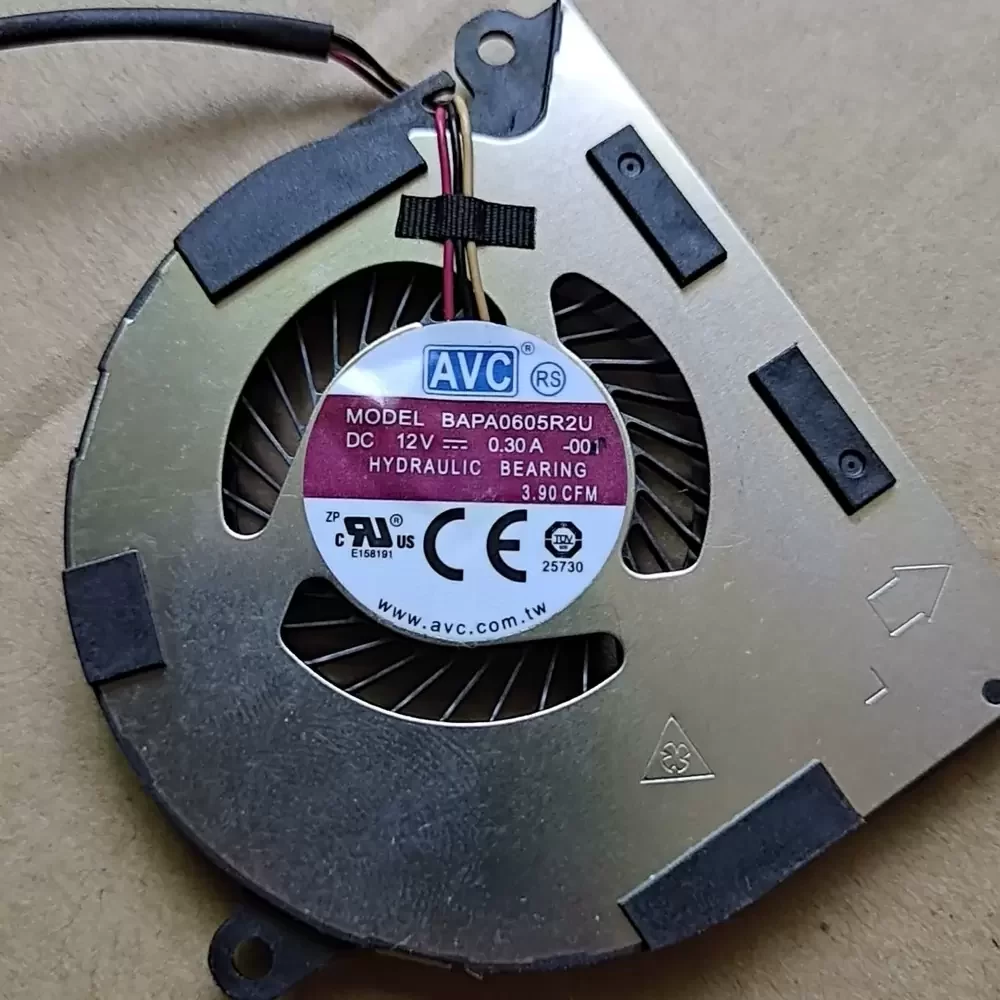

AVC BAPA0605R2U-001 is a 12VDC 60x60x5mm Blower Fan optimized for ultra-thin thermal management in space-constrained mobile computing environments. Utilizing advanced hydraulic bearing architecture, this DC centrifugal blower minimizes friction and acoustic resonance while maintaining structural rigidity. The aerodynamic impeller design is engineered to reduce thermal impedance in high-density laptop chassis. Operating at 0.30A, it delivers a concentrated 3.90 CFM airflow to dissipate heat from CPU/GPU heat pipes. This unit features a 3-pin termination for tachometer feedback, ensuring precise system monitoring and reliable cooling performance in compact electronic assemblies.
Model Number: BAPA0605R2U-001
Brand: AVC
Product Type: DC Centrifugal Blower Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.30 A
Power: 3.6 W
Rated Speed: 4500 RPM
Bearing Type: Hydraulic Bearing
Max. Air Flow: 3.90 CFM (6.63 m³/h / 0.11 m³/min)
Max. Static Pressure: 5.20 mmH₂O (51.0 Pa / 0.20 inH₂O)

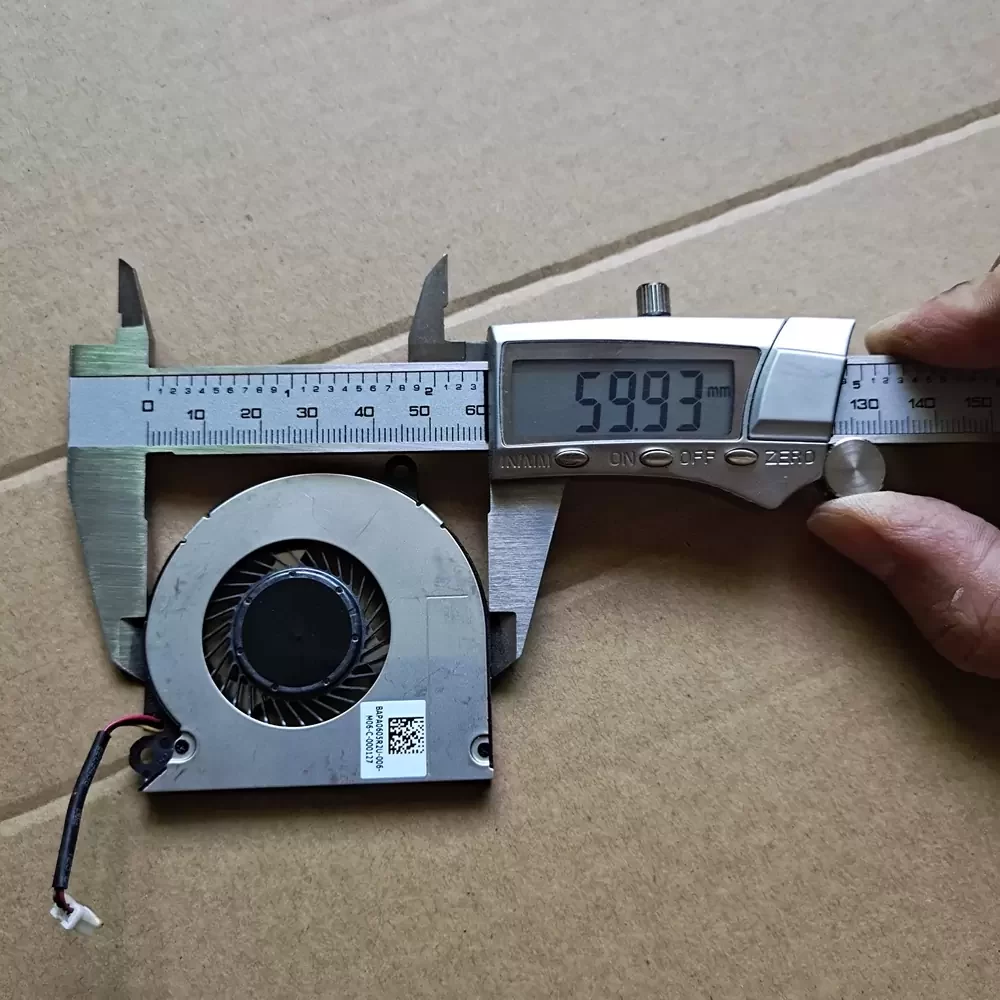

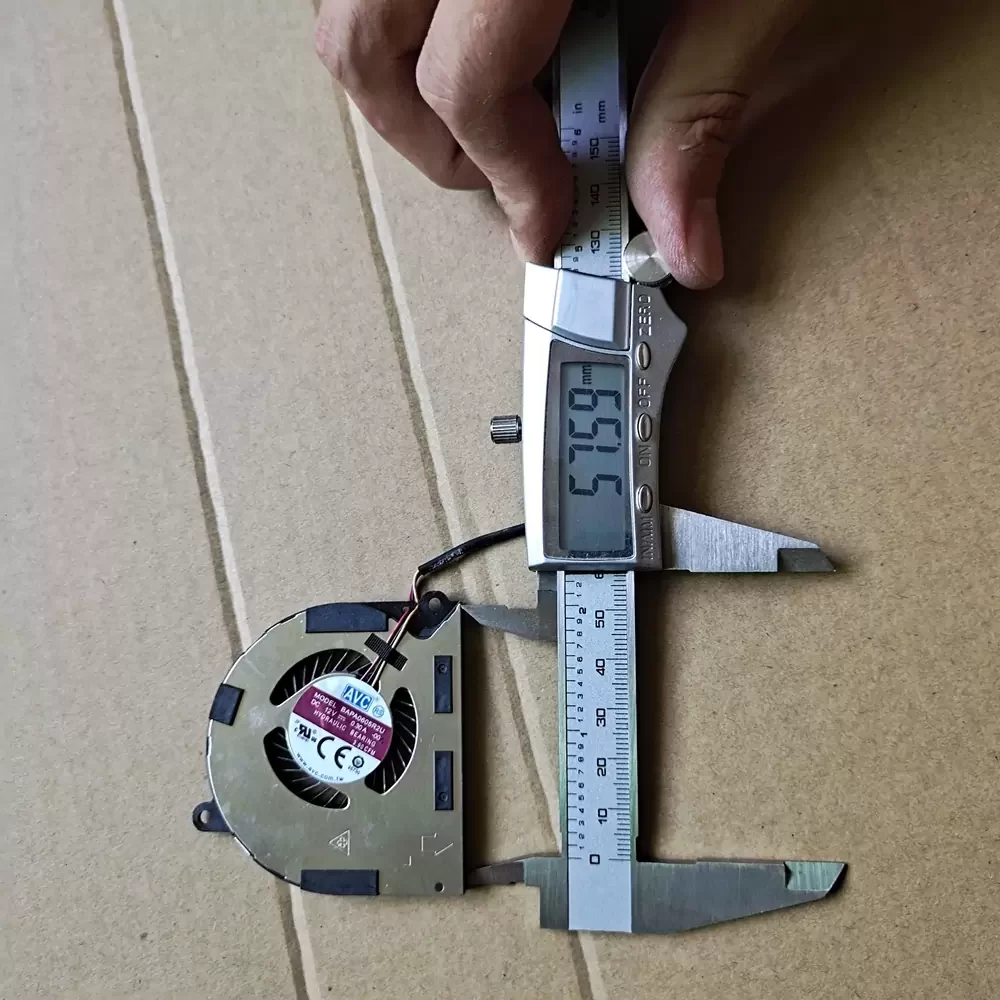

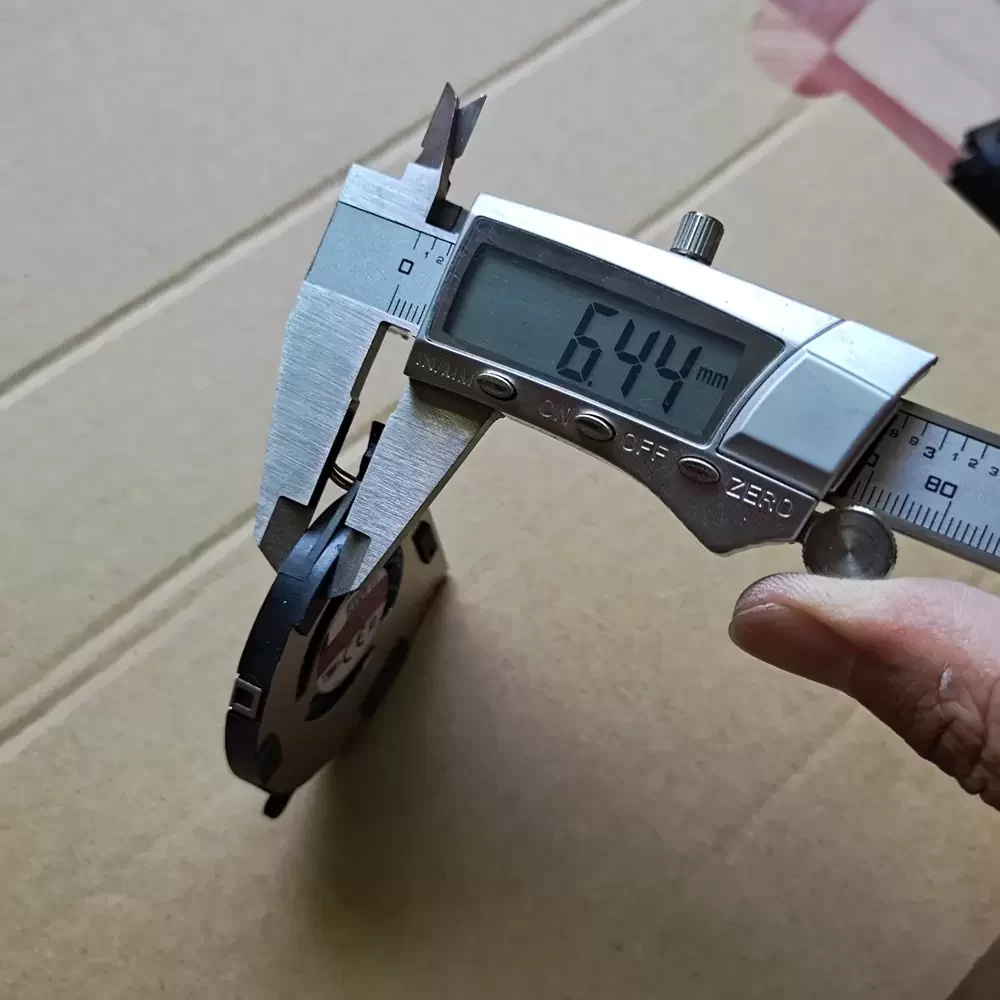

Dimensions: 60 x 60 x 5 mm
Weight: 25 g
Life Expectancy: 40,000 Hours at 40 C
Speed Control: 3-Pin (Tachometer Output)
Ingress Protection: IP51
Insulation Class: Class A
Housing Material: UL94V-0 Plastic
Blade Material: UL94V-0 Plastic

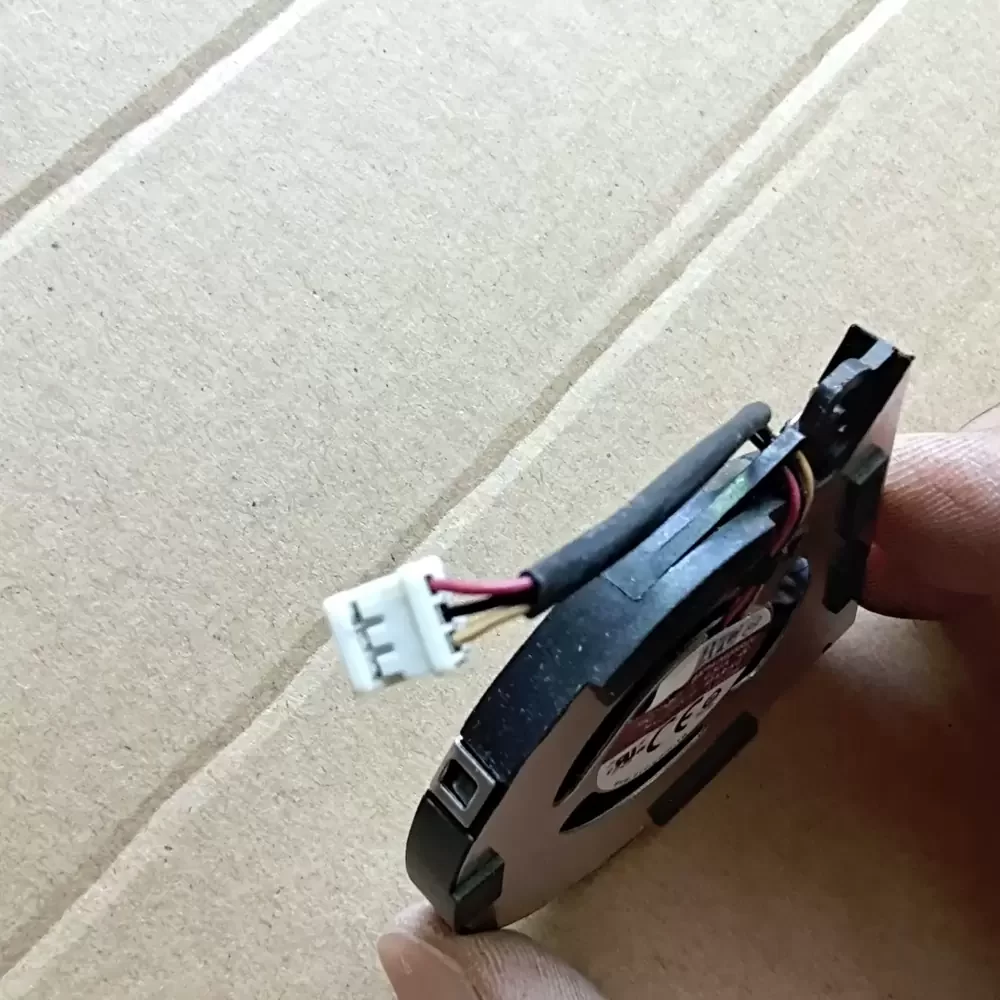

Termination: 3-Wire Lead
Operating Temperature: -10 to +70 C
Storage Temperature: -40 to +75 C
Mounting Orientation: Any
Certifications: CE, TUV, UL
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
BAPA0605R2U-001 Applications
1. Ultra-thin Laptop Cooling: The 5mm profile provides a critical mechanical advantage for replacement fan needs in slim ultrabooks where vertical clearance is minimal.
2. Compact Embedded Systems: Ideal for overcoming high system impedance in 1U or sub-1U enclosures where directional airflow is required to cool localized hotspots.
3. Portable Medical Devices: Low-vibration hydraulic bearing ensures stable operation in handheld diagnostic equipment requiring quiet, reliable thermal regulation.
