Description

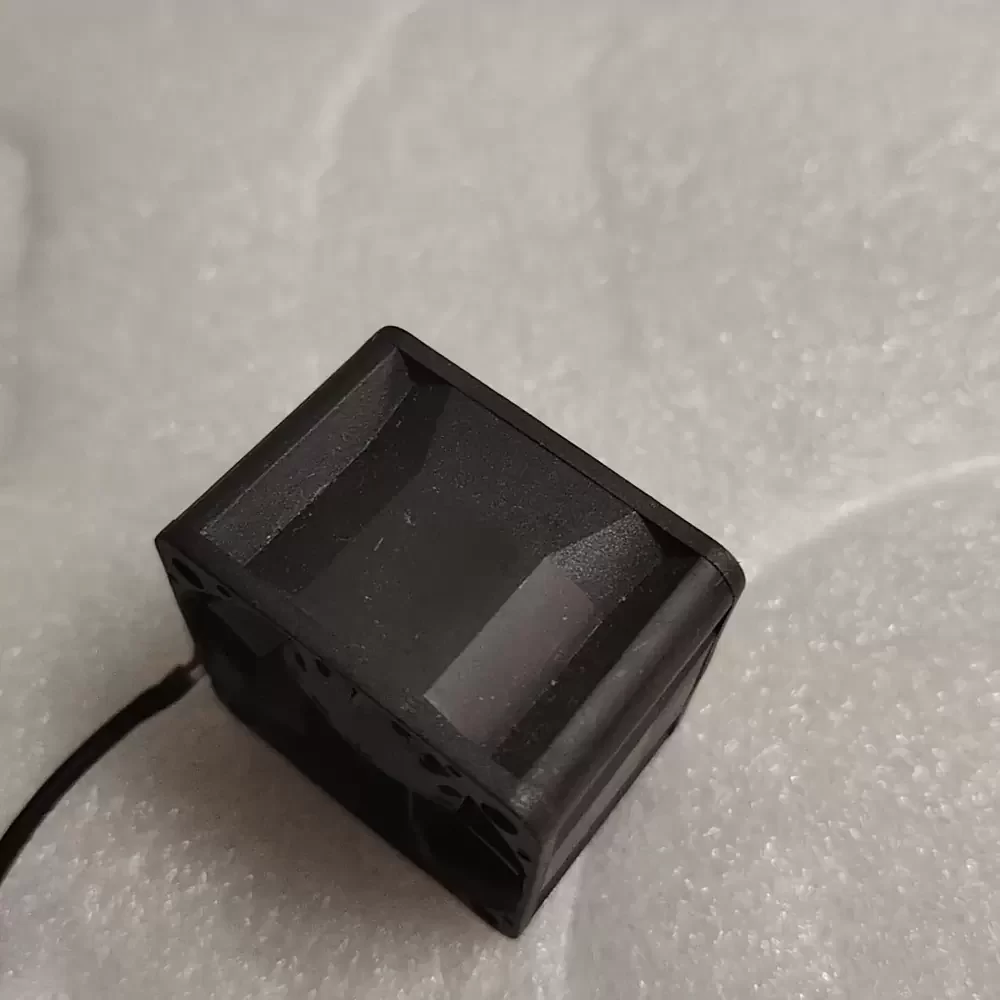

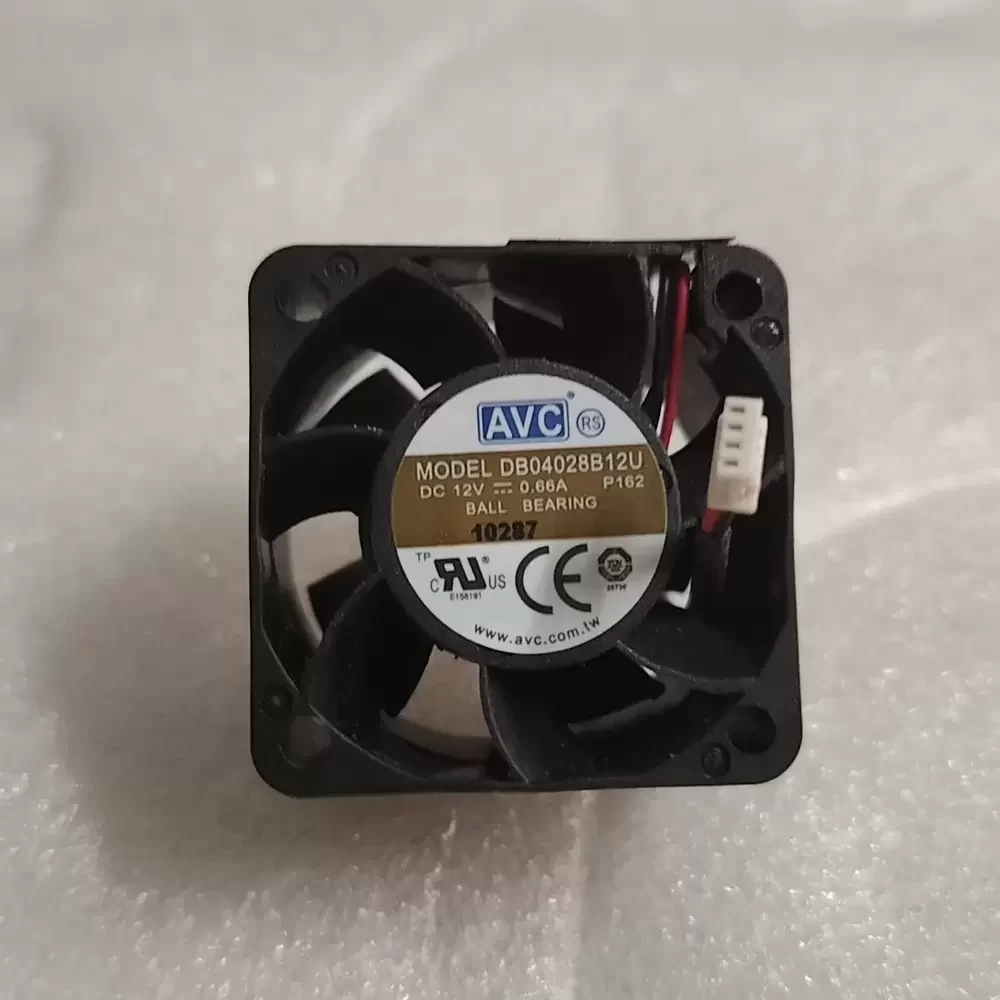

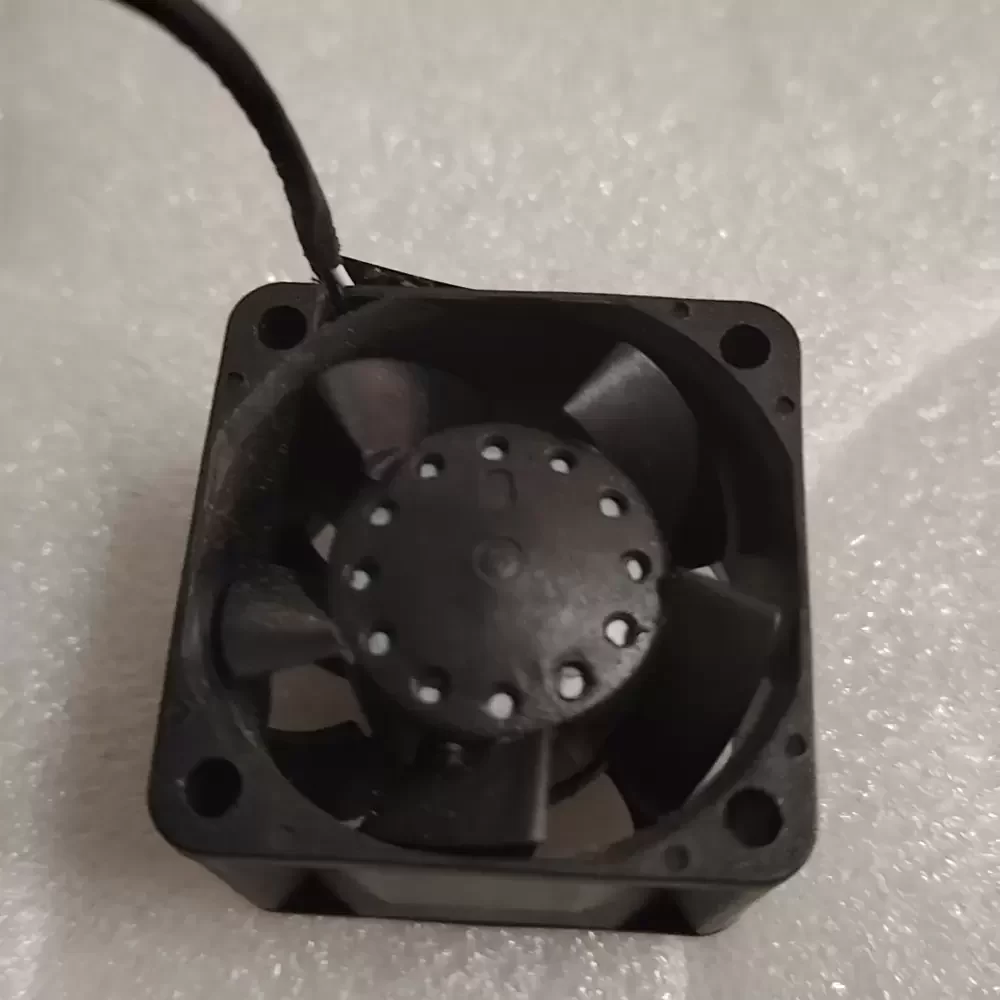

The AVC DB04028B12U-P162 is a high-density axial fan designed for precision thermal management in compact industrial environments. Operating at 12VDC with a current draw of 0.66A, this 40x40x28mm cooling solution delivers exceptional static pressure and airflow for its size. Equipped with a dual ball bearing system, the DB04028B12U-P162 ensures long-term reliability and stable operation at high speeds. The 4-wire configuration supports PWM speed control and tachometer output, making it an ideal industrial cooling fan for servers and telecommunications equipment where 12VDC power and 40mm dimensions are required.
Model Number: DB04028B12U-P162
Brand: AVC
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.66A
Power: 7.92W
Rated Speed: 13000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 23.5 CFM (0.665 m³/min)
Max. Static Pressure: 28.5 mmH₂O (1.12 inH₂O)
Dimensions: 40x40x28mm
Weight: 55g
Life Expectancy: 70,000 Hours at 40C
Speed Control: PWM Control
Monitoring Output: Tachometer / Frequency Generator

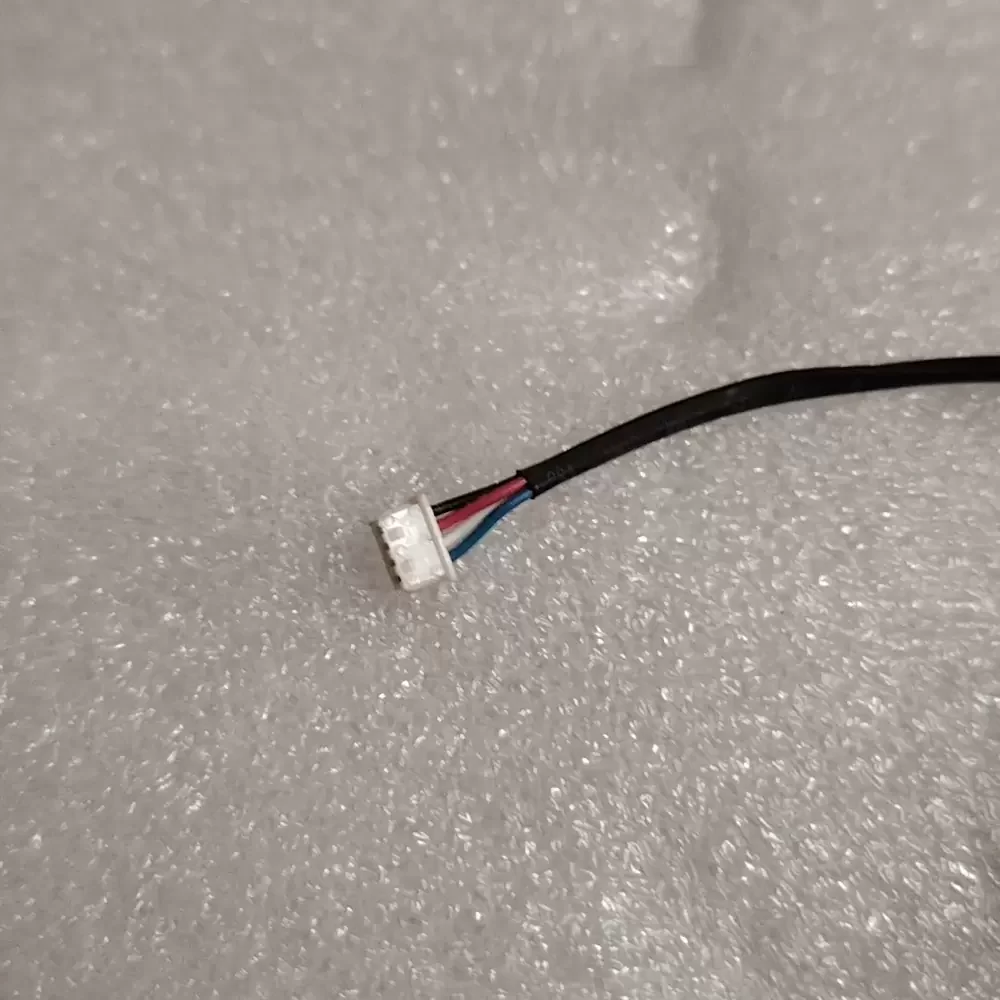

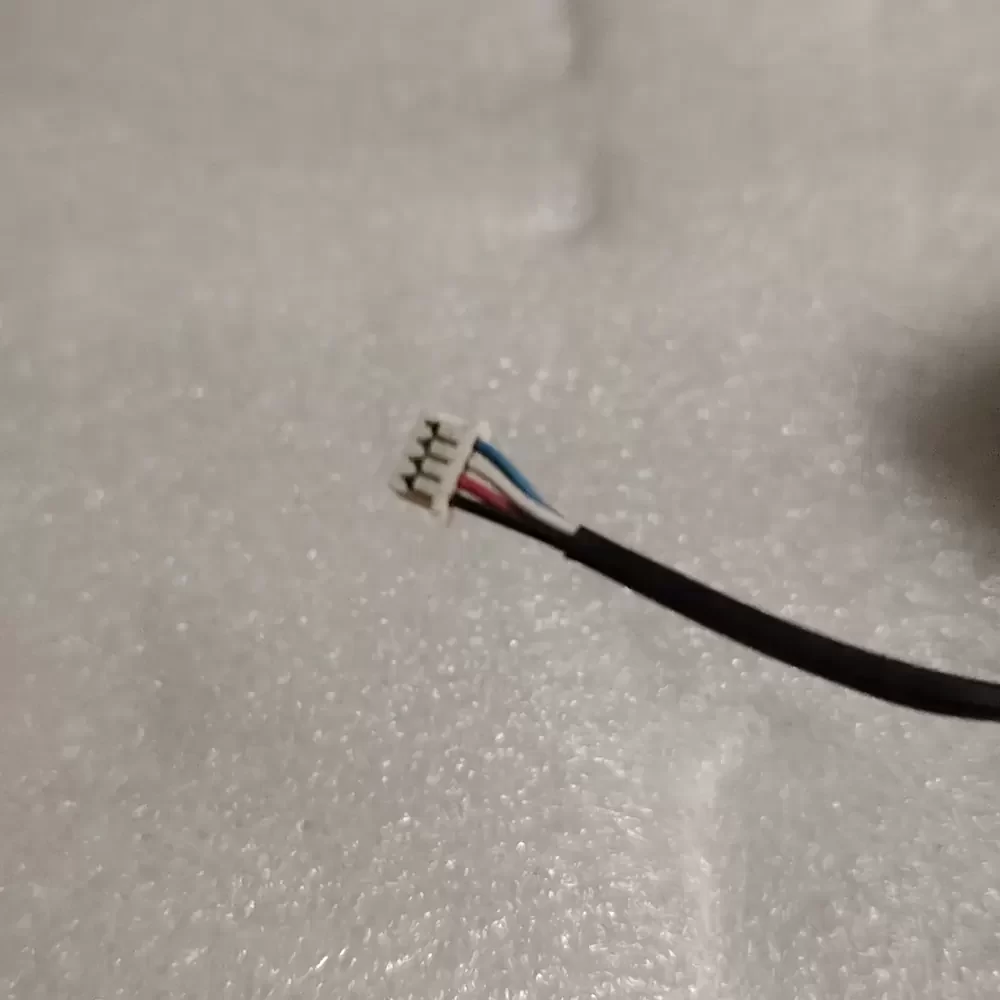

Termination: 4-Lead Wires
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +75C
Protection: Locked Rotor Protection, Reverse Polarity Protection
The DB04028B12U-P162 is primarily utilized in high-density server racks, network switches, and telecommunications infrastructure where space is limited but heat dissipation requirements are extreme. Engineers integrate the DB04028B12U-P162 into 1U server chassis and medical diagnostic equipment to maintain optimal operating temperatures for sensitive internal components.
