Description

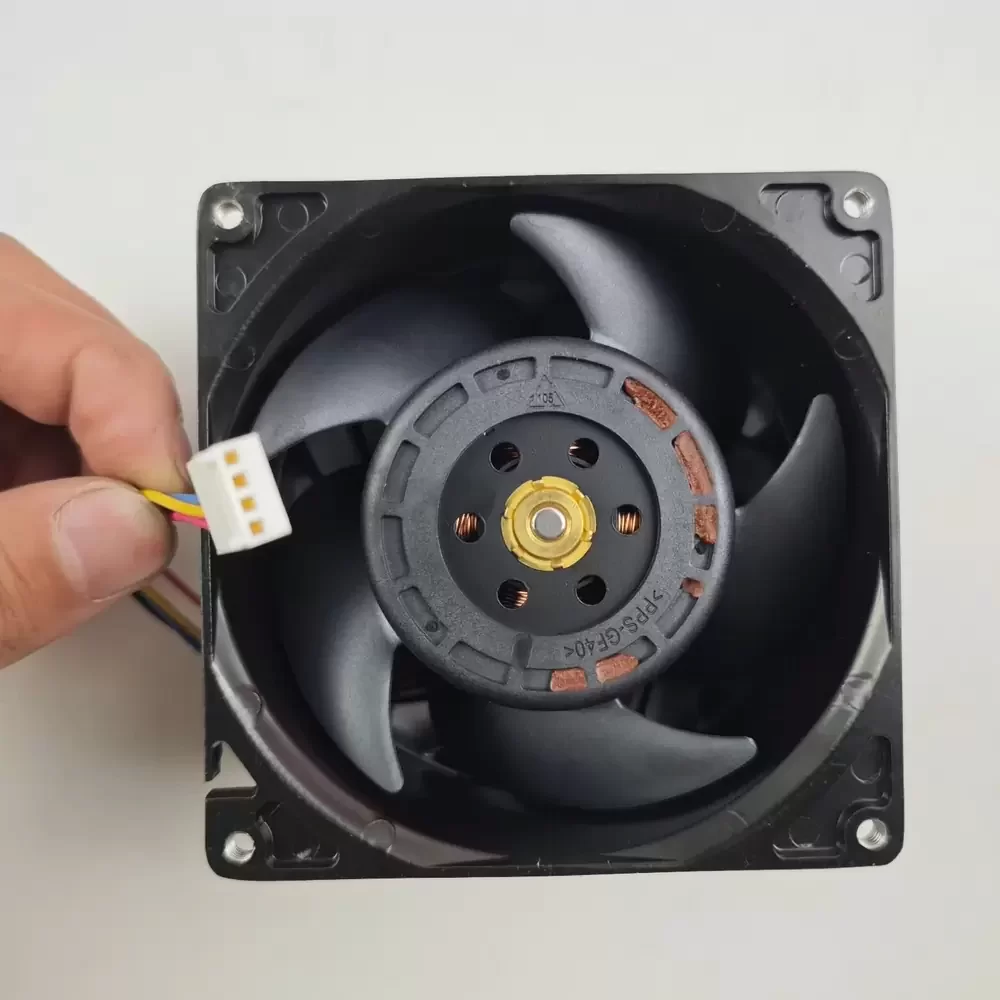

The AVC DBPA0956B8UP003 is a high-performance DC axial fan engineered for extreme industrial cooling applications requiring substantial static pressure and airflow. Encased in a robust die-cast aluminum housing, this unit ensures superior structural rigidity and thermal dissipation under heavy loads. It utilizes a precision dual ball bearing system to maintain stability at high rotational speeds, significantly extending operational lifespan. The 4-wire configuration supports Pulse Width Modulation (PWM) for precise speed control and tachometer output for real-time monitoring. With a power rating of roughly 178W, this fan is designed to overcome high thermal impedance in densely packed electronic enclosures.

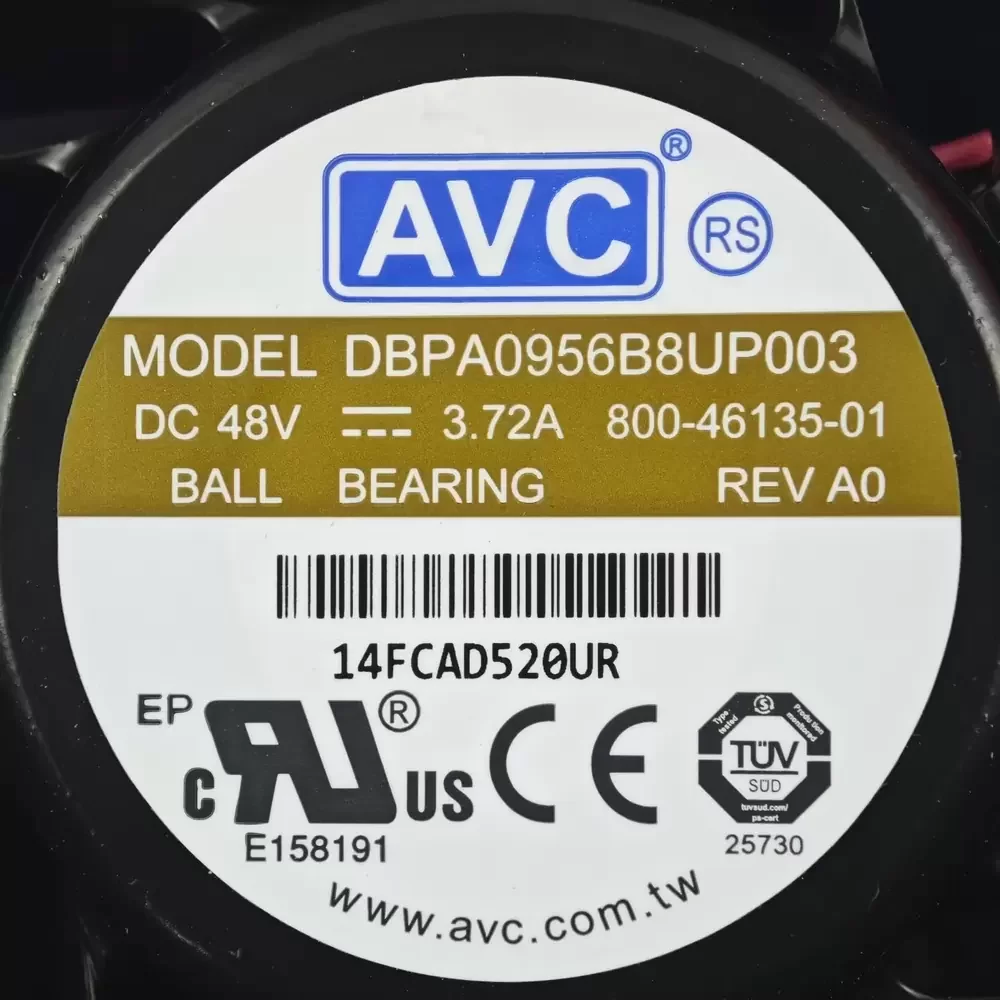

Model Number: DBPA0956B8UP003
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Rated Current: 3.72 A
Power Consumption: 178.56 W

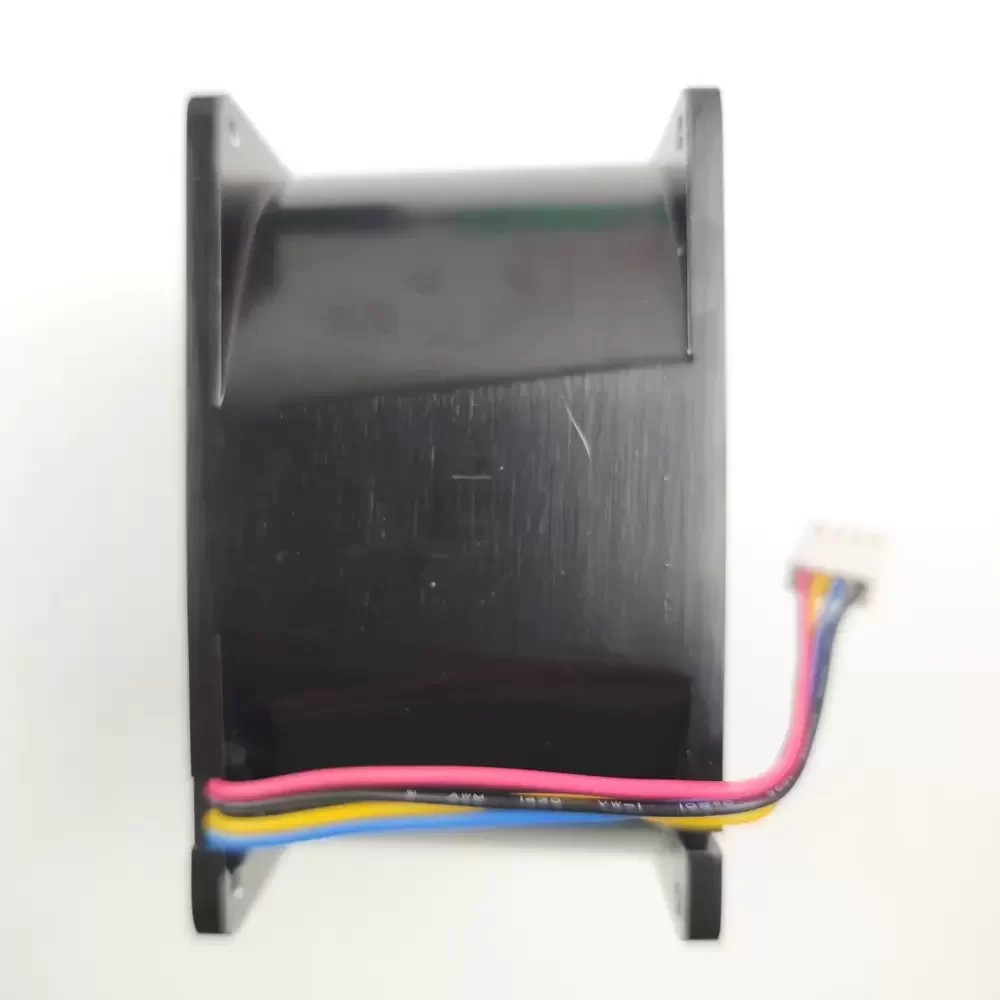

Dimensions: 90mm x 90mm x 56mm
Bearing Type: Dual Ball Bearing
Housing Material: Die-Cast Aluminum
Impeller Material: Reinforced Plastic (UL94V-0)
Termination: 4-Wire Leads
Speed Control: PWM (Pulse Width Modulation)
Signal Output: Tachometer (FG)
Mounting: Flange Mount
Ingress Protection: IP Rating Standard
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
The DBPA0956B8UP003 is specifically deployed in mission-critical environments such as enterprise server racks, telecommunications base stations, and high-density storage arrays where airflow restriction is a significant challenge. Its high static pressure capabilities make the DBPA0956B8UP003 ideal for forcing air through restrictive heat sinks and tightly packed chassis in industrial automation equipment and power supply units.
