Description
The ebm-papst S3G710-AO85-21/F01 is a high-efficiency EC axial fan engineered for demanding industrial ventilation requirements. Integrating the advanced M3G122-IA EC motor technology, this unit offers superior energy efficiency compared to traditional AC counterparts, significantly reducing thermal impedance and operational costs. The aerodynamic design of the 710mm impeller ensures optimized airflow delivery while maintaining structural rigidity under continuous load. Designed with an IP54 ingress protection rating, the S3G710-AO85-21/F01 provides robust resistance against dust and moisture, making it suitable for challenging environments. Its sophisticated electronic commutation allows for precise speed regulation, ensuring the system adapts dynamically to cooling needs while minimizing acoustic noise generation.

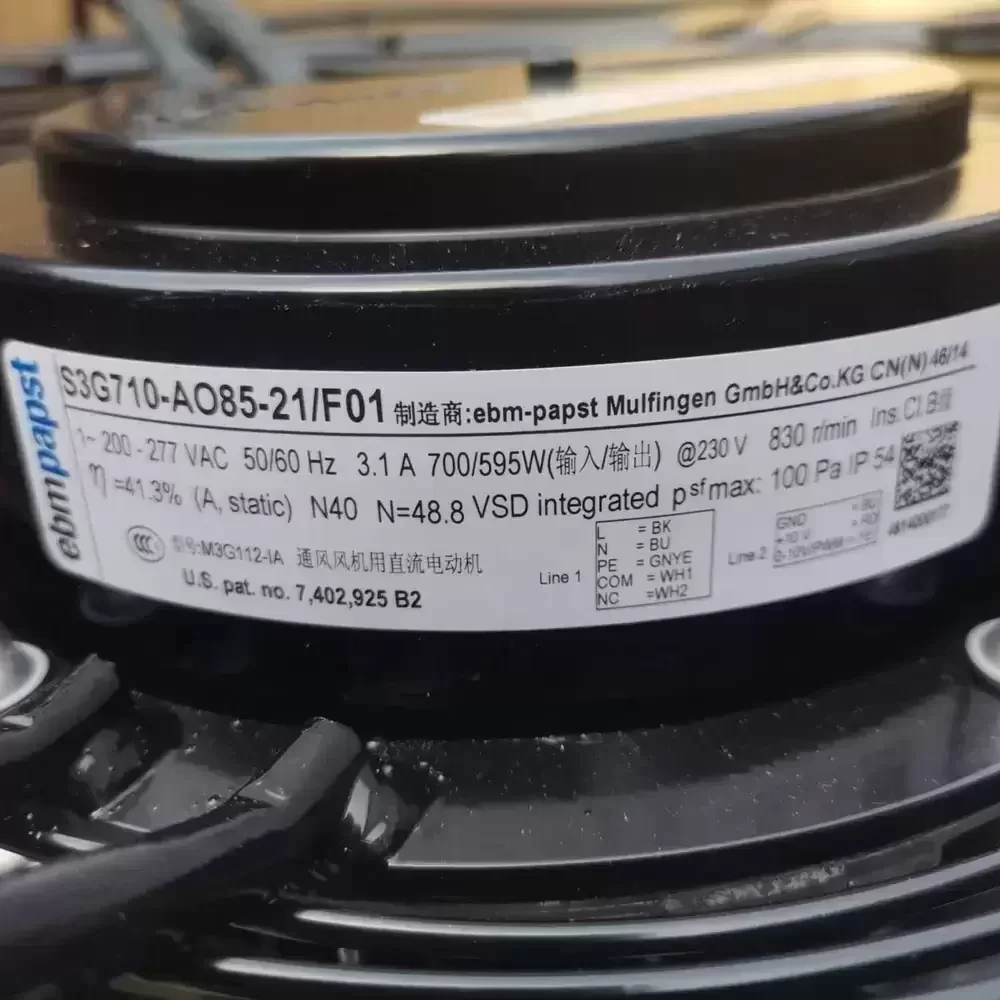

Model Number: S3G710-AO85-21/F01
Brand: ebm-papst
Product Type: EC Axial Fan
Motor Type: M3G122-IA
Rated Voltage: 230 VAC
Voltage Range: 200 – 277 VAC
Frequency: 50/60 Hz
Phase: 1~
Power Input: 700 W
Power Output: 595 W
Rated Current: 3.1 A
Rated Speed: 830 RPM
Blade Diameter: 710 mm
Bearing Type: Ball Bearing
Ingress Protection: IP54
Insulation Class: F
Direction of Rotation: Clockwise (viewed toward rotor)
Number of Blades: 5
Motor Protection: Thermal Overload Protector (TOP)
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: +60 °C
Material (Blades): Sheet steel, coated black
Material (Housing): Die-cast aluminum
Mounting Orientation: Any
Compliance: CE, UL, CSA
This high-capacity ventilation unit is frequently deployed in large-scale industrial cooling systems, including air-cooled condensers and refrigeration units where consistent airflow is critical. The S3G710-AO85-21/F01 excels in agricultural ventilation and facility climate control, providing reliable air exchange in livestock buildings and greenhouses. Additionally, the S3G710-AO85-21/F01 is utilized in heat pump applications and transformer cooling, where its robust IP54 rating ensures longevity despite exposure to environmental elements.
