Description
The AVC DBTA0638B2S is a high-performance axial cooling fan engineered for demanding thermal management applications requiring significant static pressure and airflow density. This unit utilizes advanced DC motor technology coupled with a precision dual ball bearing architecture, ensuring exceptional rotational stability and longevity even under continuous high-speed operation. The aerodynamic design of the impeller blades is optimized to minimize turbulence while maximizing air throughput, effectively reducing thermal impedance in restricted enclosures. Constructed with industrial-grade materials, the fan housing offers superior structural rigidity and resistance to environmental stressors. The DBTA0638B2S integrates sophisticated PWM control circuitry, allowing for dynamic speed modulation based on real-time thermal loads, which optimizes energy efficiency and acoustic performance in critical systems.

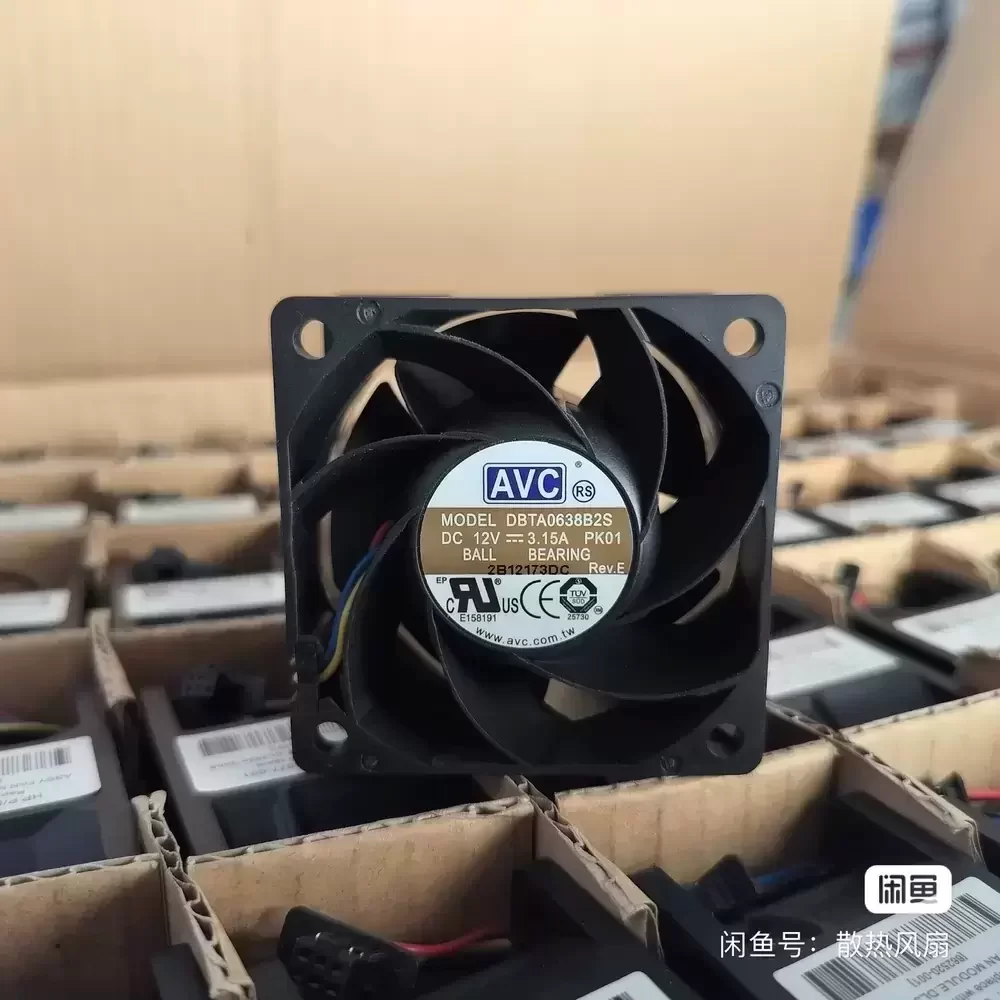

Model Number: DBTA0638B2S
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 3.15 A
Power Consumption: 37.8 W
Rated Speed: 13000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 68.5 CFM (116.3 m³/h / 1.94 m³/min)
Max. Static Pressure: 48.2 mmH₂O (472.6 Pa / 1.90 inH₂O)
Dimensions: 60 x 60 x 38 mm
Weight: 115 g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: 4-Wire PWM
Noise Level: 61.5 dBA
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Termination: 4-Wire Leads with Connector
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP54 (Optional)
Safety Certifications: UL, CUL, TUV, CE
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
The DBTA0638B2S is specifically designed for high-density server environments and telecommunications equipment where space is at a premium but cooling requirements are extreme. Its compact 60mm form factor allows it to fit seamlessly into 1U and 2U server racks, providing the necessary airflow to cool high-TDP processors and power supply units. Additionally, the DBTA0638B2S is frequently utilized in precision medical instrumentation and industrial automation control panels, where reliability is non-negotiable. The robust construction ensures that the DBTA0638B2S maintains peak performance in CNC machinery and network switchgear, effectively preventing thermal throttling and extending the lifespan of sensitive electronic components.
