Description

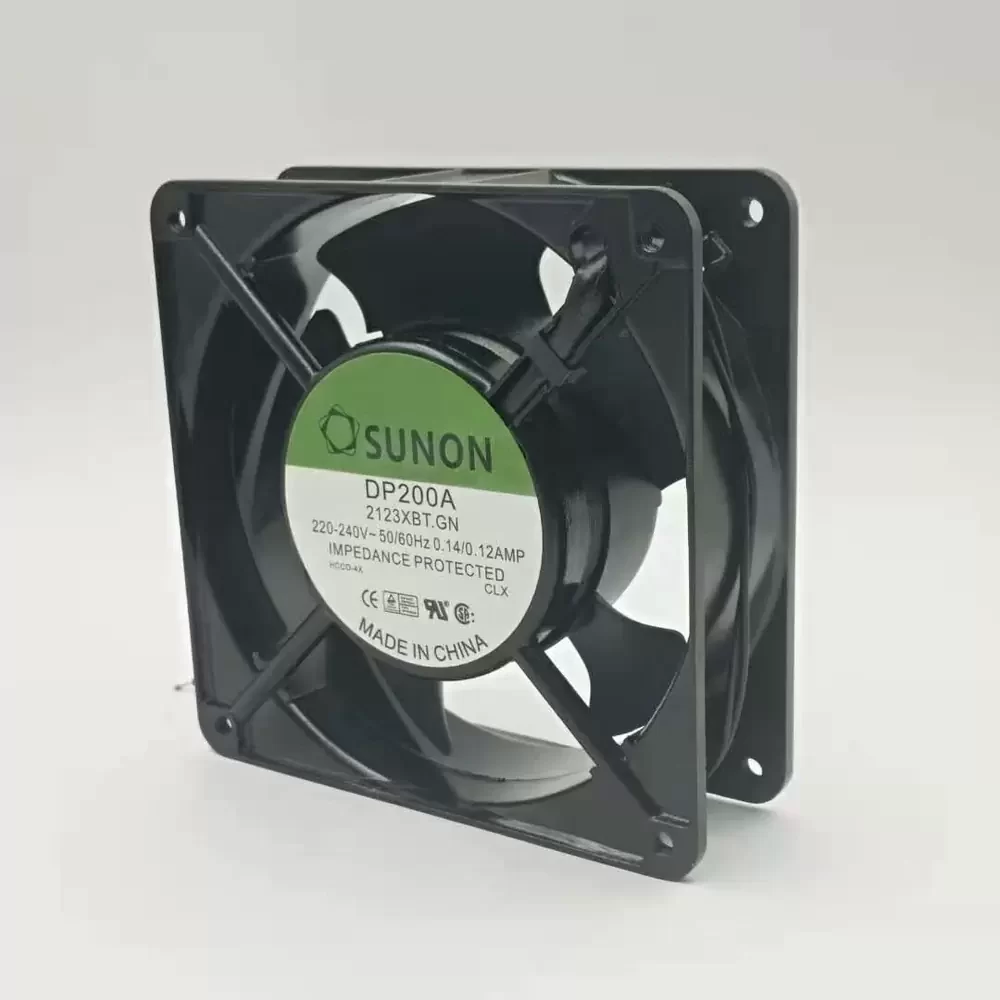

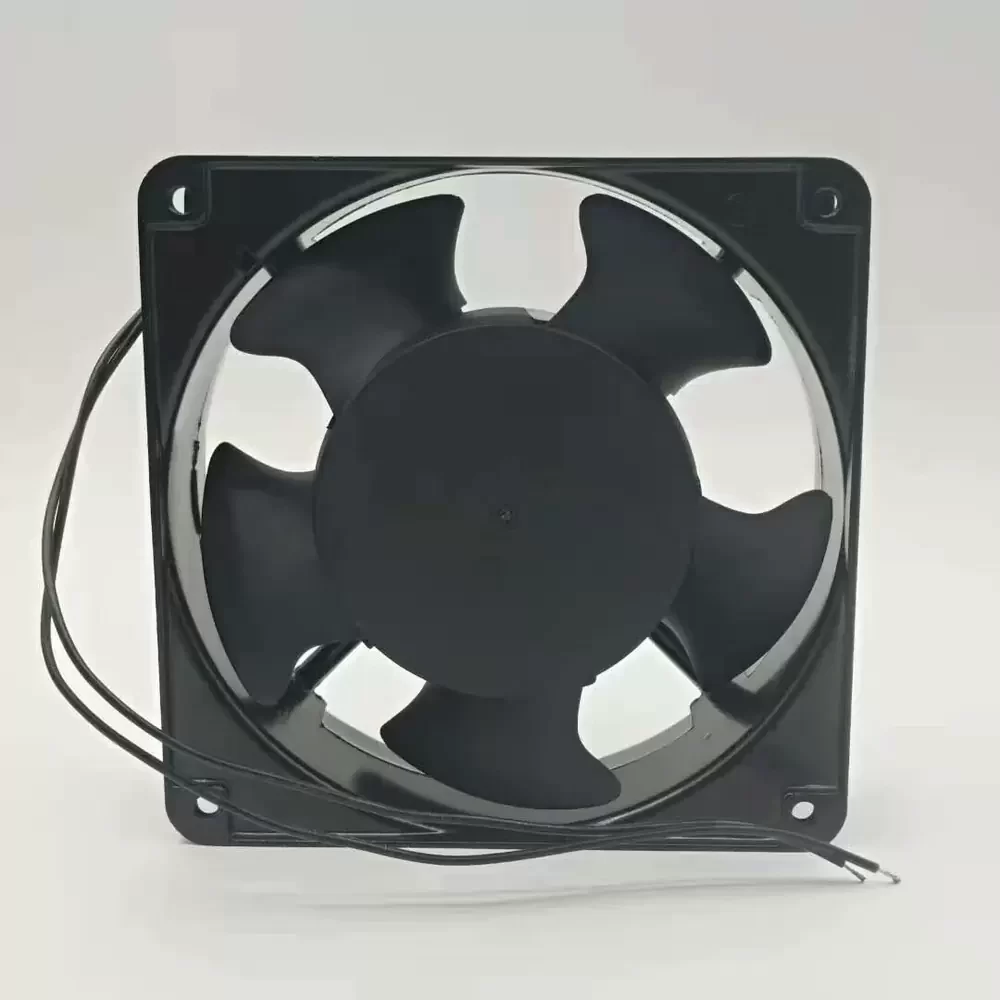

The Sunon DP200A 2123XBT.GN is a robust AC Axial Fan engineered for high-reliability industrial cooling applications. Utilizing advanced shaded-pole motor technology and a precision ball bearing architecture, this unit delivers consistent airflow while maintaining structural rigidity through its die-cast aluminum frame. The aerodynamic design of the thermoplastic PBT impeller optimizes thermal impedance, ensuring efficient heat dissipation in demanding environments. Designed for continuous operation, the fan balances high static pressure with stable acoustic performance, making it suitable for critical thermal management systems requiring durability and longevity.
Model Number: DP200A 2123XBT.GN
Brand: Sunon
Product Type: AC Axial Fan
Rated Voltage: 220-240 VAC
Frequency: 50/60 Hz
Voltage Range: 185 – 245 VAC
Rated Current: 0.14/0.12 A
Power Consumption: 22/21 W
Rated Speed: 2700/3100 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 97/117 CFM (164.8/198.8 m³/h)
Max. Static Pressure: 8.64/9.91 mmH₂O (84.7/97.1 Pa / 0.34/0.39 inH₂O)
Dimensions: 120x120x38 mm
Weight: 550 g
Life Expectancy: 50,000 Hours @ 25°C
Noise Level: 44/49 dB(A)
Frame Material: Aluminum Alloy
Impeller Material: Thermoplastic PBT (UL94V-0)
Termination: Terminals
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Motor Protection: Impedance Protected
Certifications: UL, CUR, TUV, CE
The DP200A 2123XBT.GN is specifically designed for integration into industrial power infrastructure, including frequency inverters, variable frequency drive (VFD) cabinets, and heavy-duty power distribution units. Its robust aluminum construction allows it to withstand the thermal and mechanical stresses common in server racks and CNC machinery control panels. By providing reliable forced convection, the DP200A 2123XBT.GN ensures optimal operating temperatures for sensitive electronic components within automation enclosures and telecommunications equipment.
