Description

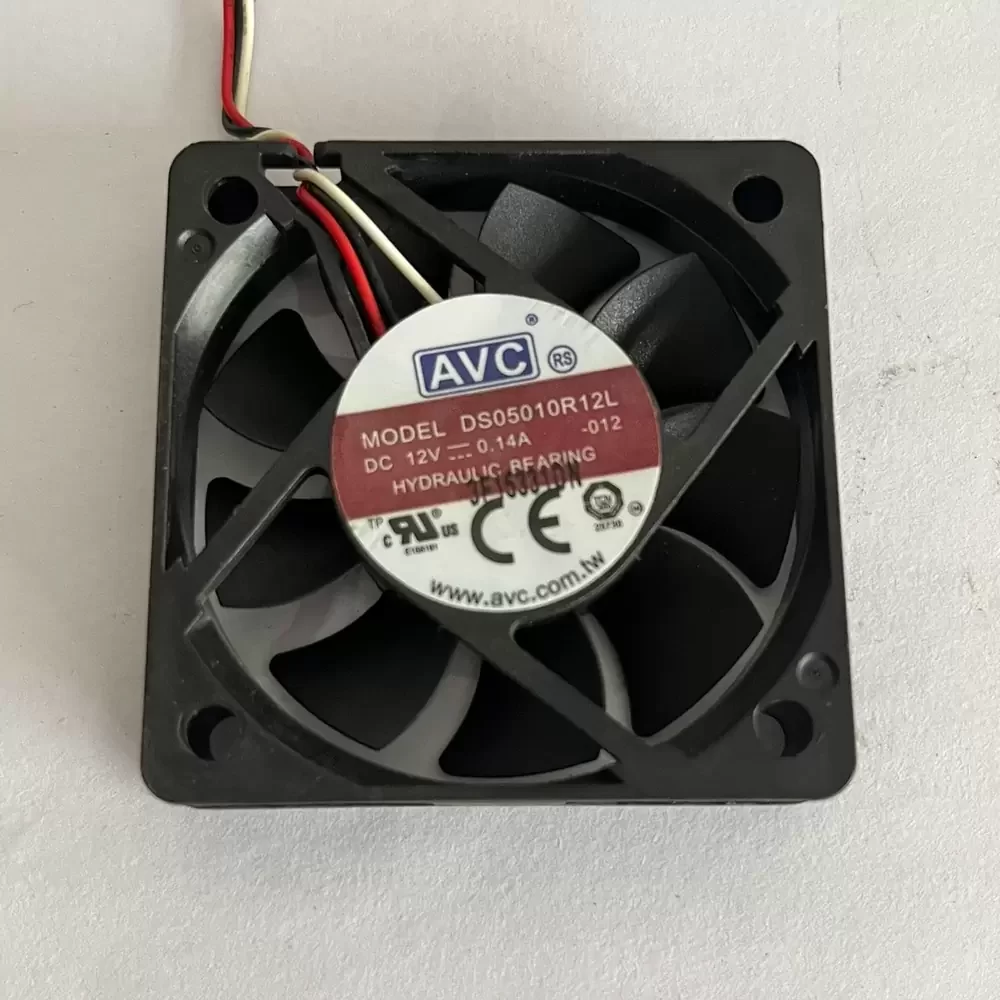

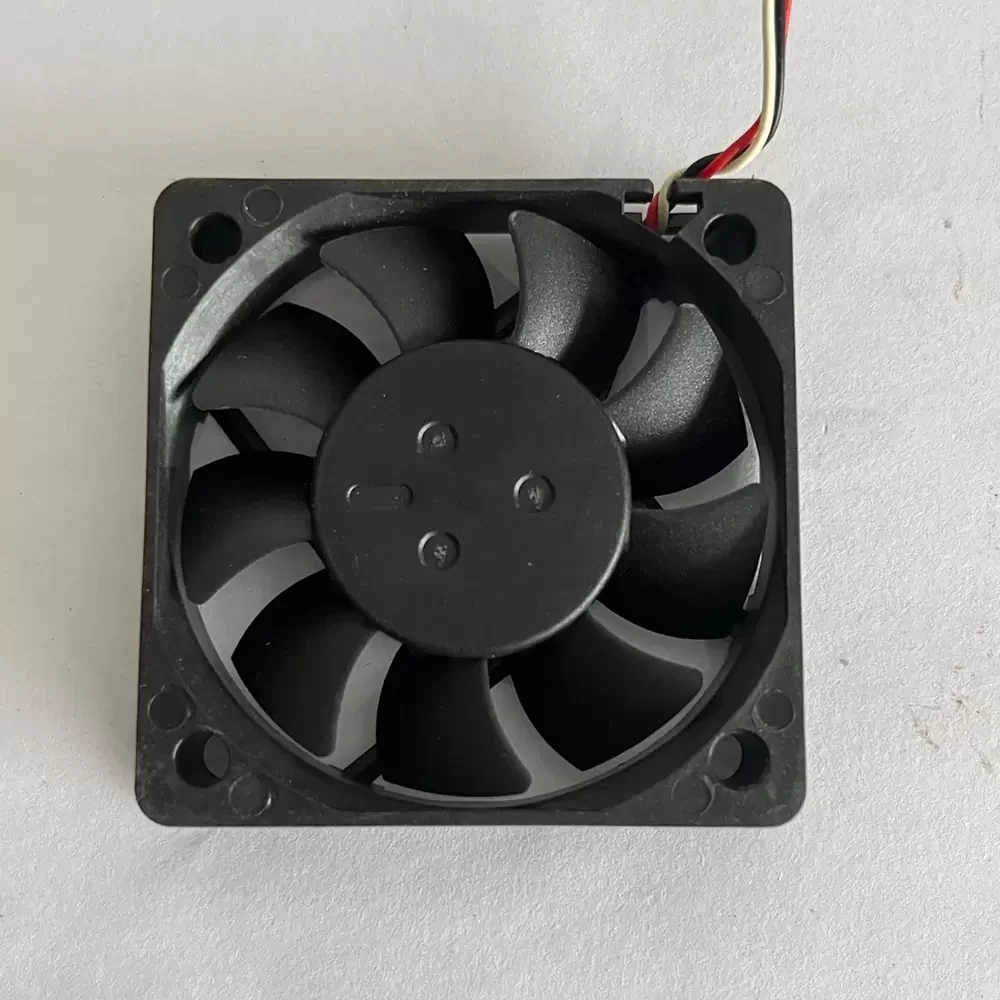

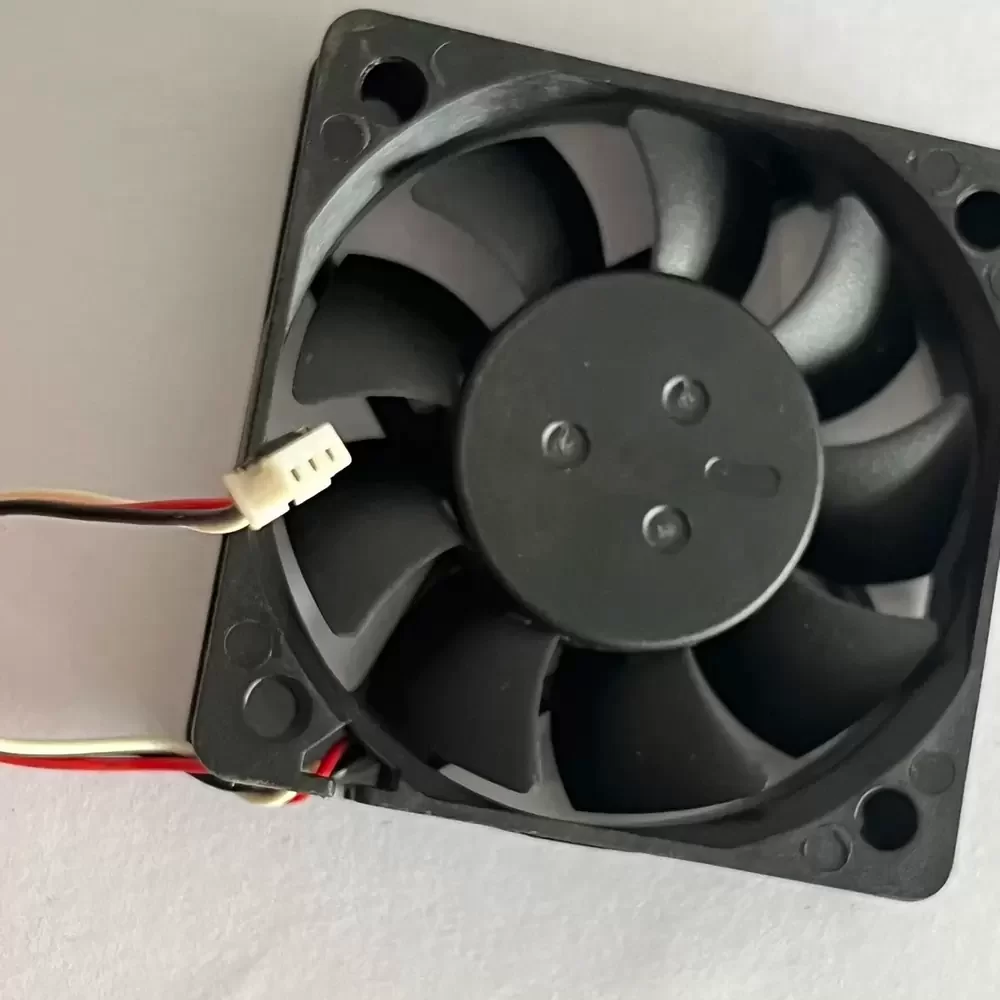

AVC DS05010R12L-012 is a 12VDC 50x50x10mm Axial Fan optimized for low-profile thermal management in space-constrained electronic enclosures. Utilizing advanced hydraulic bearing architecture, this unit minimizes thermal impedance while maintaining structural rigidity in high-cycle environments. The aerodynamic impeller design is engineered for silent operation, drawing only 0.14A at a rated speed of approximately 3500 RPM. This DC axial fan provides a reliable cooling solution for sensitive components, ensuring stable performance by mitigating heat soak in compact PCB layouts.
Model Number: DS05010R12L-012
Brand: AVC
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.14A
Power: 1.68W
Rated Speed: 3500 RPM
Bearing Type: Hydraulic Bearing
Max. Air Flow: 9.5 CFM (16.1 m³/h)
Max. Static Pressure: 2.1 mmH₂O (20.6 Pa)
Dimensions: 50x50x10mm
Weight: 20g
Life Expectancy: 40,000 Hours at 40C
Noise Level: 22.0 dBA
Housing Material: UL94V-0 Plastic
Blade Material: UL94V-0 Plastic
Termination: 3-Pin Lead Wires
Operating Temperature: -10C to +70C
Protection: Auto-Restart, Polarity Protection
DS05010R12L-012 Applications
1. Motherboard Chipset Cooling: Low-profile 10mm depth allows for installation on Northbridge or Southbridge heatsinks without interfering with PCIe expansion cards.
2. 1U Network Appliances: High static pressure relative to size overcomes internal impedance in shallow rackmount switches and firewalls.
3. Embedded Industrial PCs: Low-vibration hydraulic bearings ensure longevity in 24/7 industrial automation controllers where acoustic noise must be minimized.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|---|
| Technical Datasheet | 📄 684757897116 Datasheet |
