Description

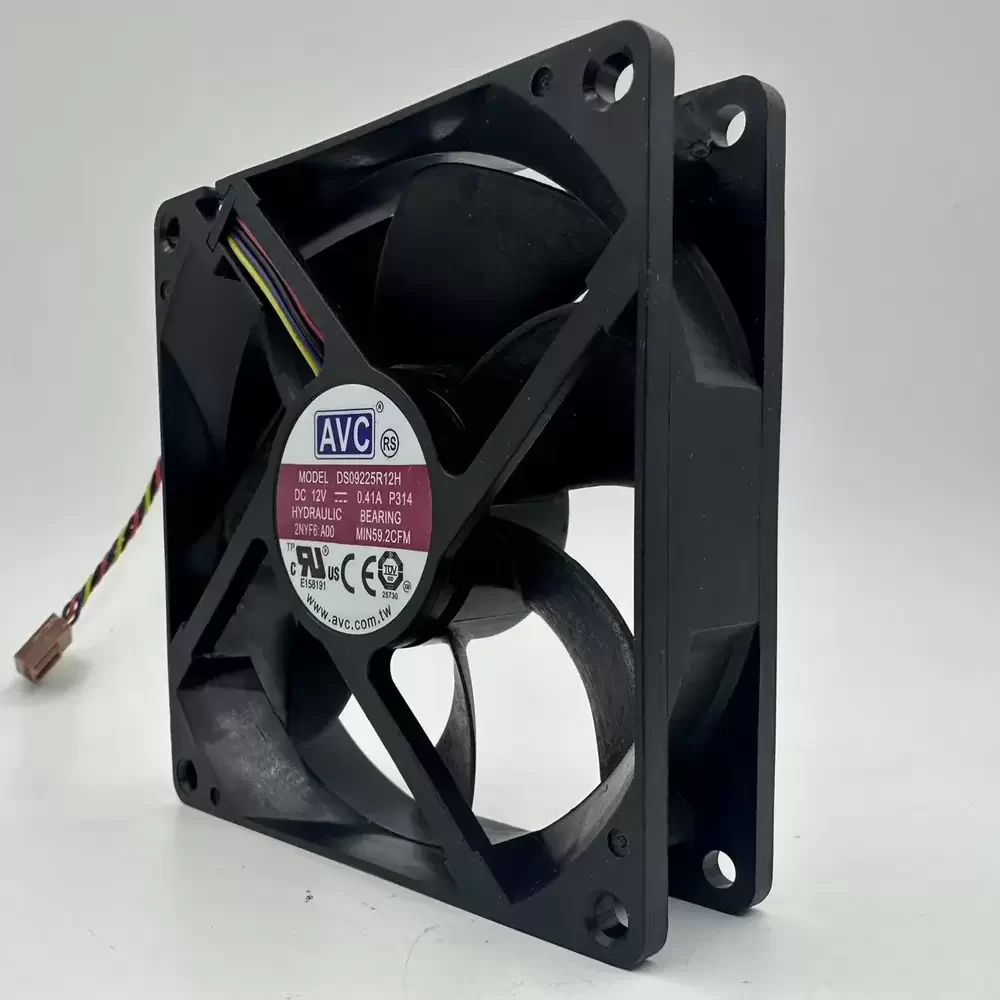

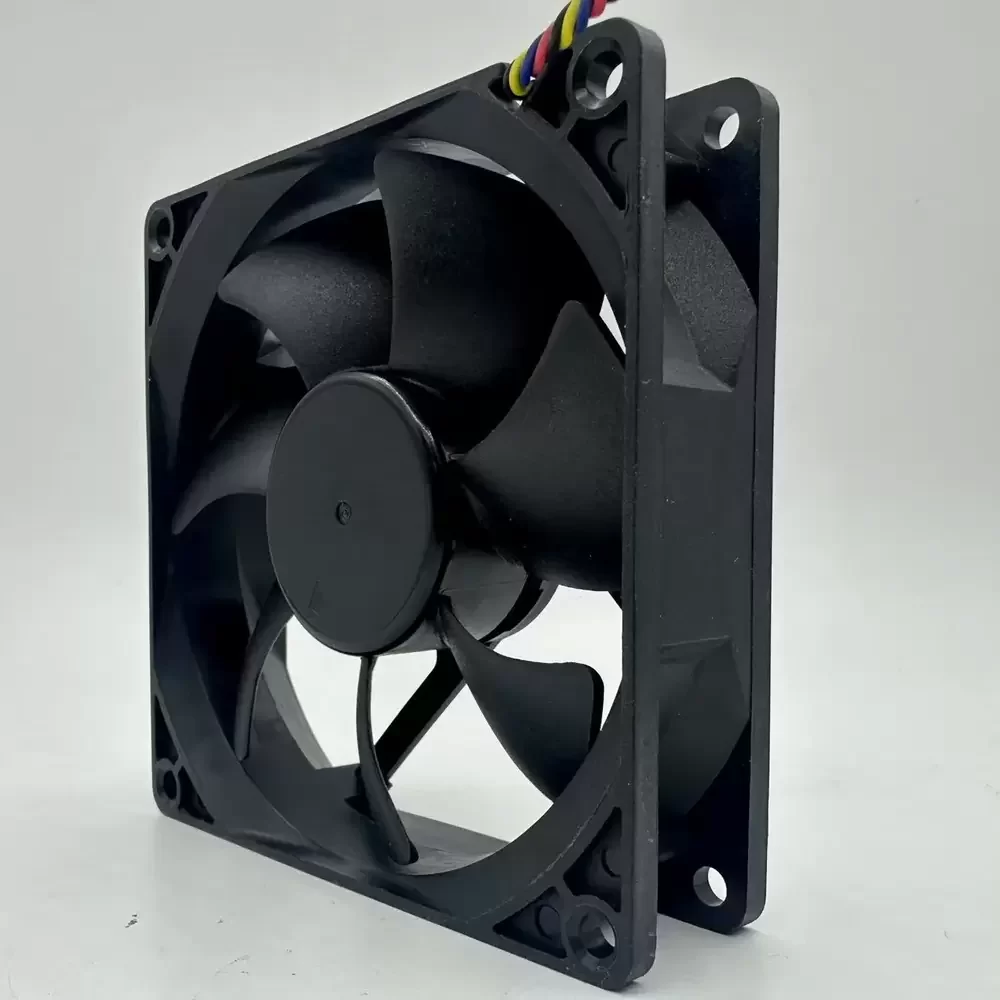

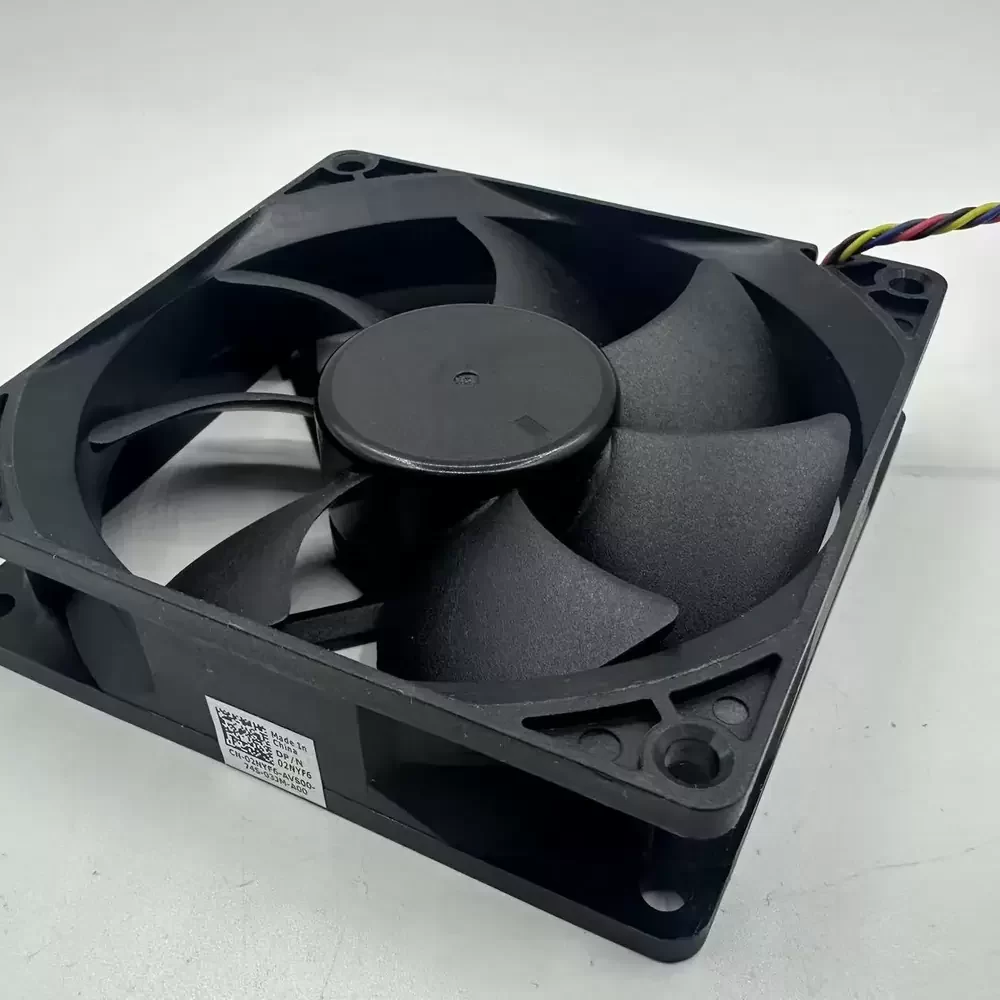

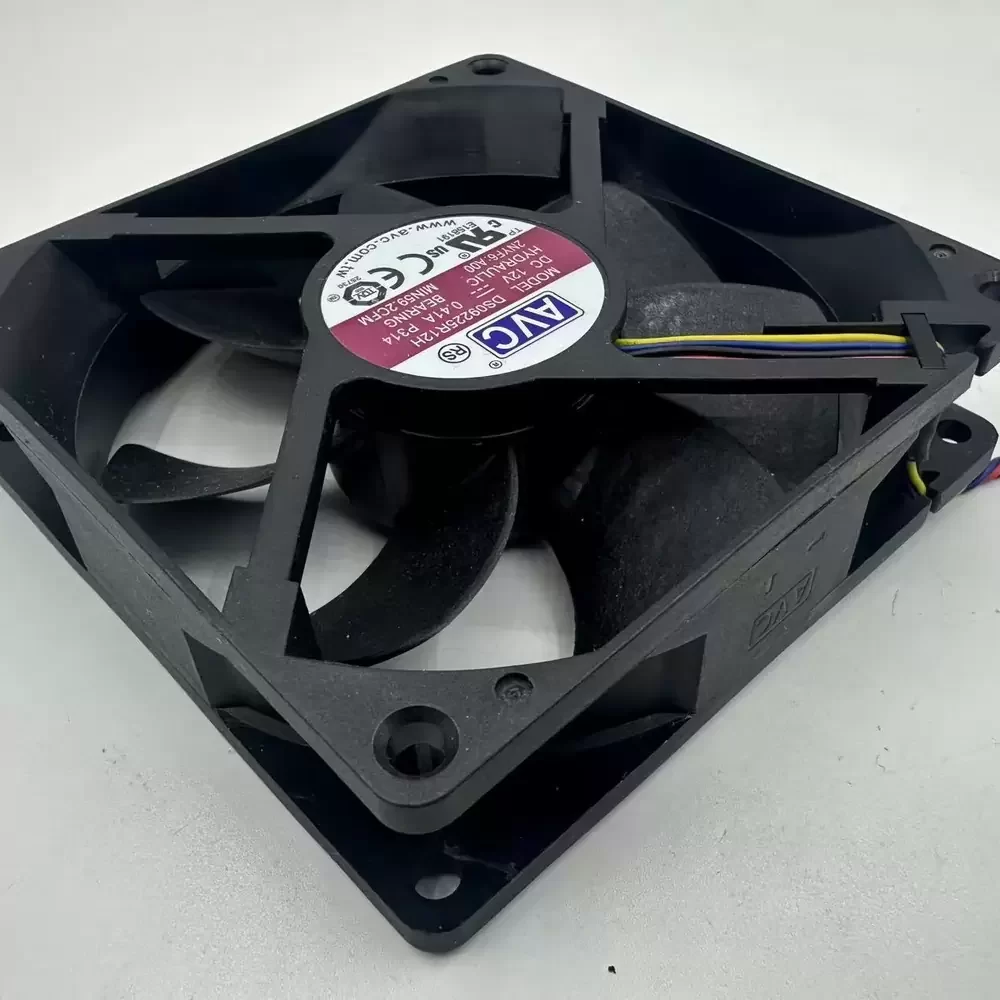

AVC DS09225R12H-P314 92 x 92 x 25 mm 12 VDC 59.2 CFM axial cooling fan. The unit features a hydraulic bearing system designed for a 50000 hour service life and operates with a 4-pin PWM interface for dynamic temperature control. Structural characteristics include a standard square frame with a 16 cm lead wire, delivering a static wind pressure of 0.157 inH2O and operating at speeds between 700 and 3800 RPM.
DS09225R12H-P314 Specifications
Model Number: DS09225R12H-P314
Brand: AVC
Category: Axial Cooling Fan
Dimensions: 92 x 92 x 25 mm
Nominal Voltage: 12 VDC
Rated Current: 0.41 A
Power Consumption: 4.92 W
Maximum Airflow: 59.2 CFM
Static Pressure: 0.157 inH2O
Rotational Speed: 700 to 3800 RPM
Acoustic Noise: 28 dBA
Bearing Type: Hydraulic Bearing
Interface: 4-Pin PWM
Lead Wire Length: 16 cm
Expected Service Life: 50000 hours
DS09225R12H-P314 Applications
Primary applications include integration into desktop computer chassis, server racks, and water dispenser cooling systems. Deployed within industrial control panels and telecom base stations requiring dynamic PWM thermal management.
Additional information
| Shipping Weight | 1 kg |
|---|
