Description

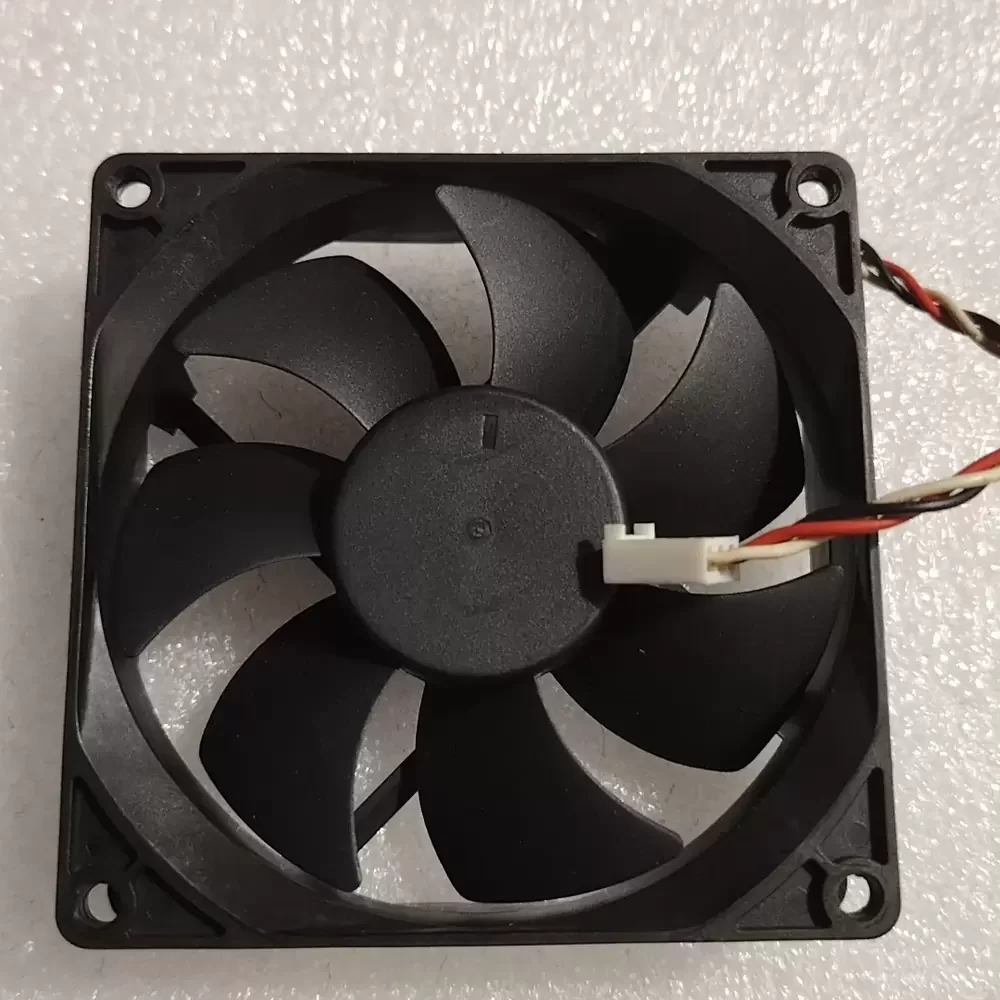

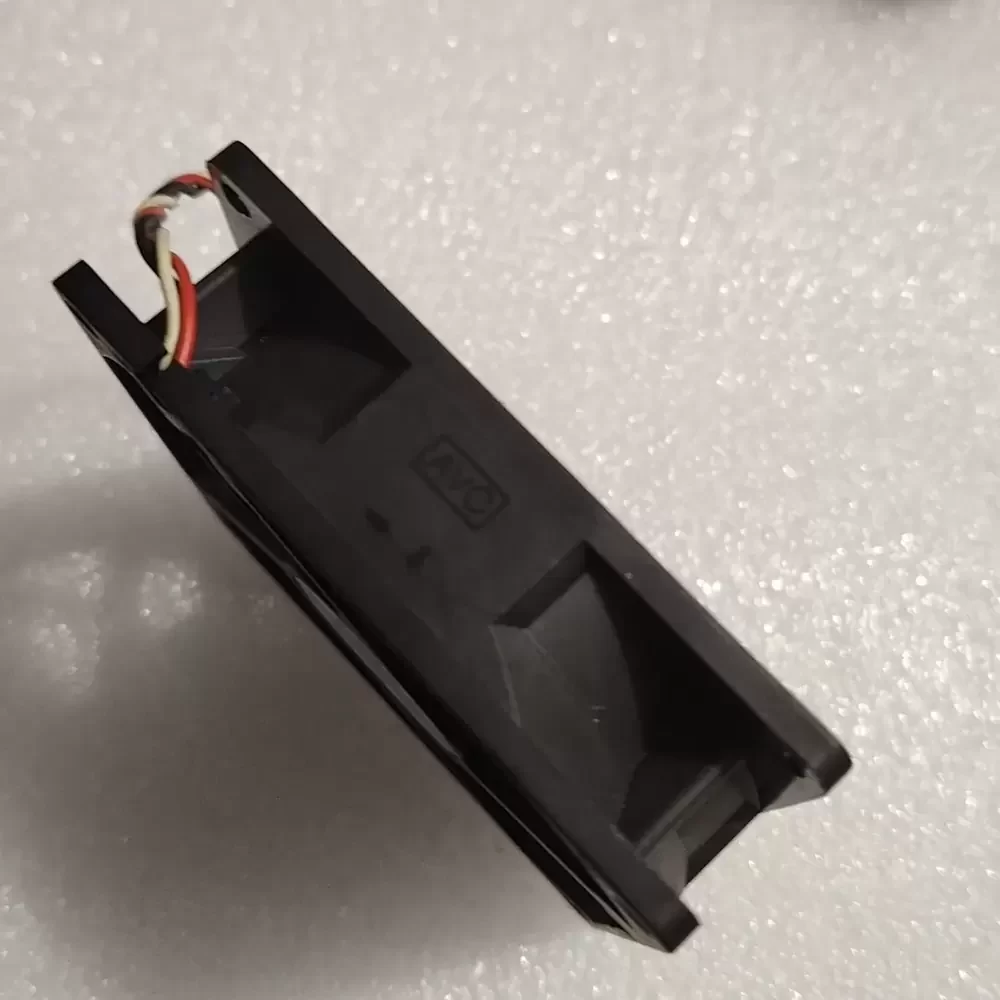

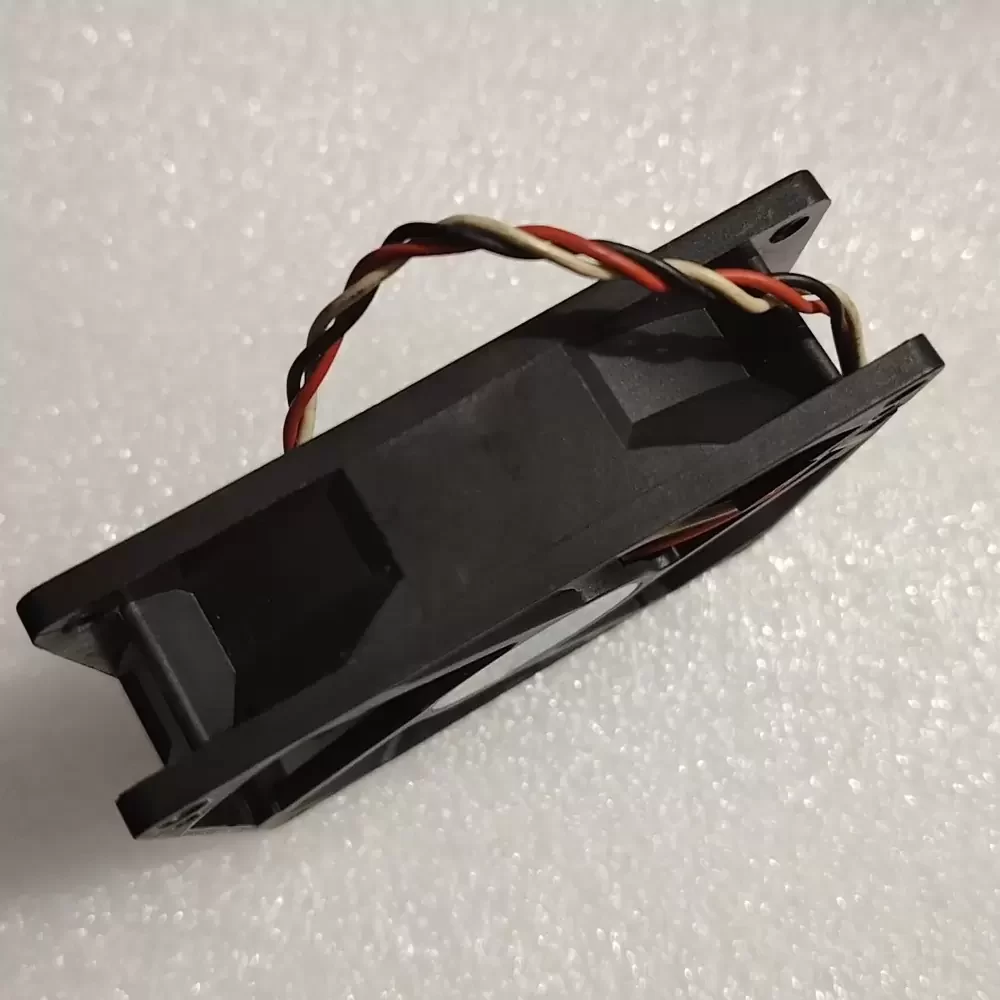

The AVC DS09225S12H-009 is a Axial Fan engineered for precision thermal management in compact electronic enclosures. Utilizing a brushless DC motor architecture, this unit integrates advanced hydraulic bearing technology to minimize friction and extend operational longevity. The aerodynamic impeller design is optimized for low thermal impedance and high structural rigidity, ensuring stable airflow delivery under varying static pressure conditions. Its robust frame construction and specialized blade geometry facilitate superior heat dissipation while maintaining acoustic efficiency in demanding industrial environments.
Model Number: DS09225S12H-009
Brand: AVC
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.41A
Power: 4.92W
Rated Speed: 3800 RPM
Bearing Type: Hydraulic Bearing
Max. Air Flow: 61.50 CFM (104.49 m³/h / 1.74 m³/min)
Max. Static Pressure: 6.35 mmH₂O (62.27 Pa / 0.25 inH₂O)
Dimensions: 92x92x25mm
Weight: 95g
Life Expectancy: 50,000 Hours
Noise Level: 38.5 dBA
Speed Control: Tachometer (FG)
Termination: 3-Lead Wires
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Insulation Class: Class A
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Certifications: CE, TUV, UL
The DS09225S12H-009 is ideally suited for integration into server chassis and telecommunications equipment where reliable active cooling is critical. Its compact form factor allows the DS09225S12H-009 to be deployed in medical diagnostic devices, industrial power supplies, and CNC control cabinets. The unit provides consistent thermal regulation for high-density PCB arrays and workstation workstations, ensuring component longevity through efficient heat extraction.
