Description

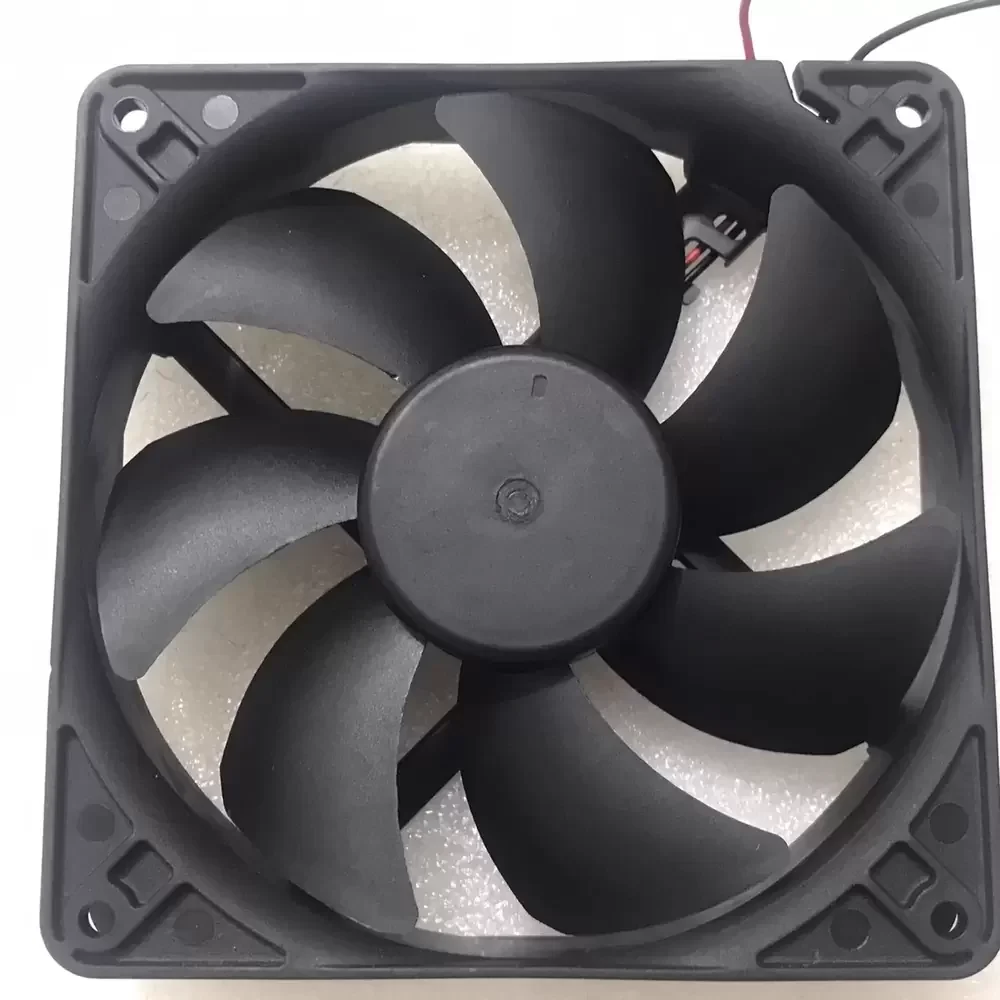

The SUNON EEC0252B1-000C-A99 is a high-efficiency DC Axial Fan engineered for demanding industrial thermal management applications. Utilizing advanced DC brushless motor technology paired with a precision Double Ball Bearing system, this unit ensures exceptional longevity and reduced friction coefficients, significantly lowering thermal impedance during operation. The aerodynamic impeller design optimizes airflow delivery while maintaining structural rigidity under high rotational speeds. Constructed with a durable thermoplastic housing, the fan meets rigorous flammability standards, making it suitable for continuous operation in critical electronic environments requiring reliable heat dissipation and stable static pressure performance.
Model Number: EEC0252B1-000C-A99
Brand: SUNON
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 12.0 – 27.6 VDC
Power Consumption: 5.0W
Rated Current: 0.21 A
Rated Speed: 3100 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 108.0 CFM (183.5 m³/h / 3.06 m³/min)
Max. Static Pressure: 7.11 mmH₂O (69.7 Pa / 0.28 inH₂O)

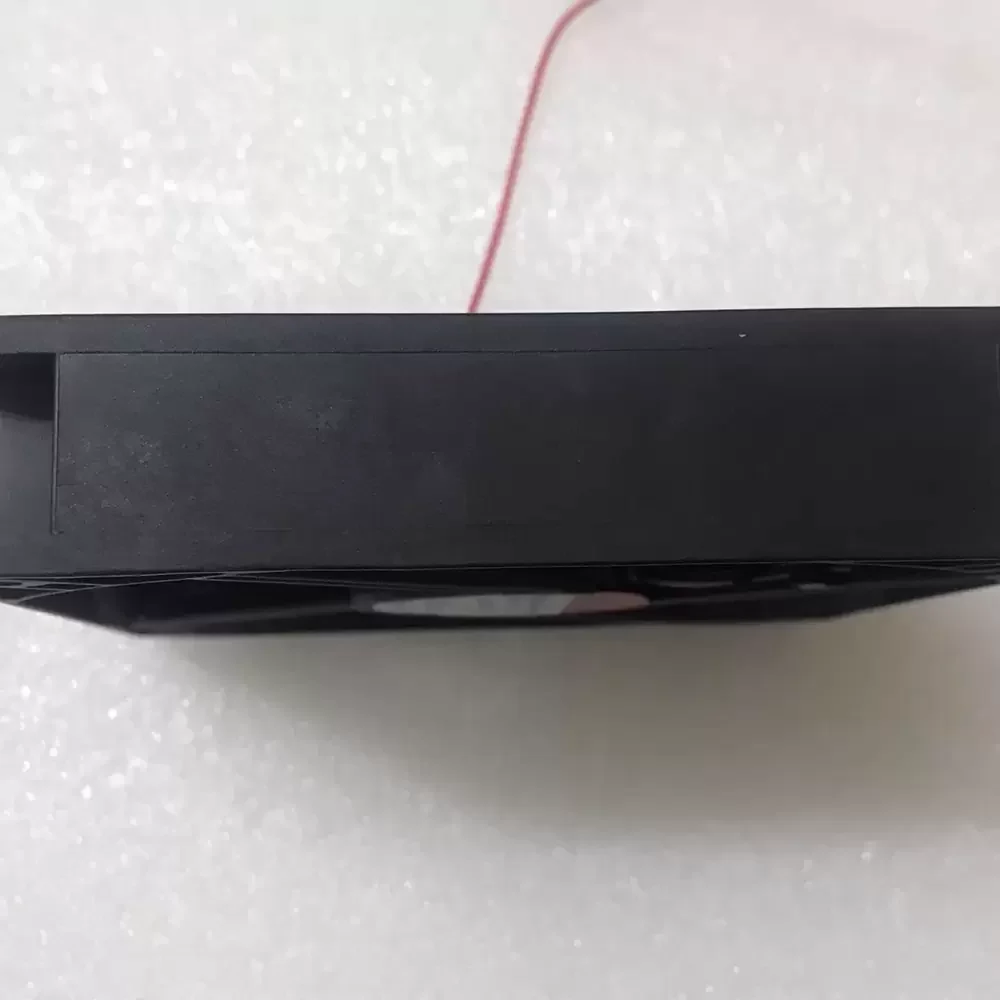

Dimensions: 120 x 120 x 25 mm
Weight: 157 g
Noise Level: 44.5 dB(A)
Life Expectancy: 70,000 Hours at 40°C
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Ingress Protection: IP Class Available upon request
Insulation Class: Class A
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C

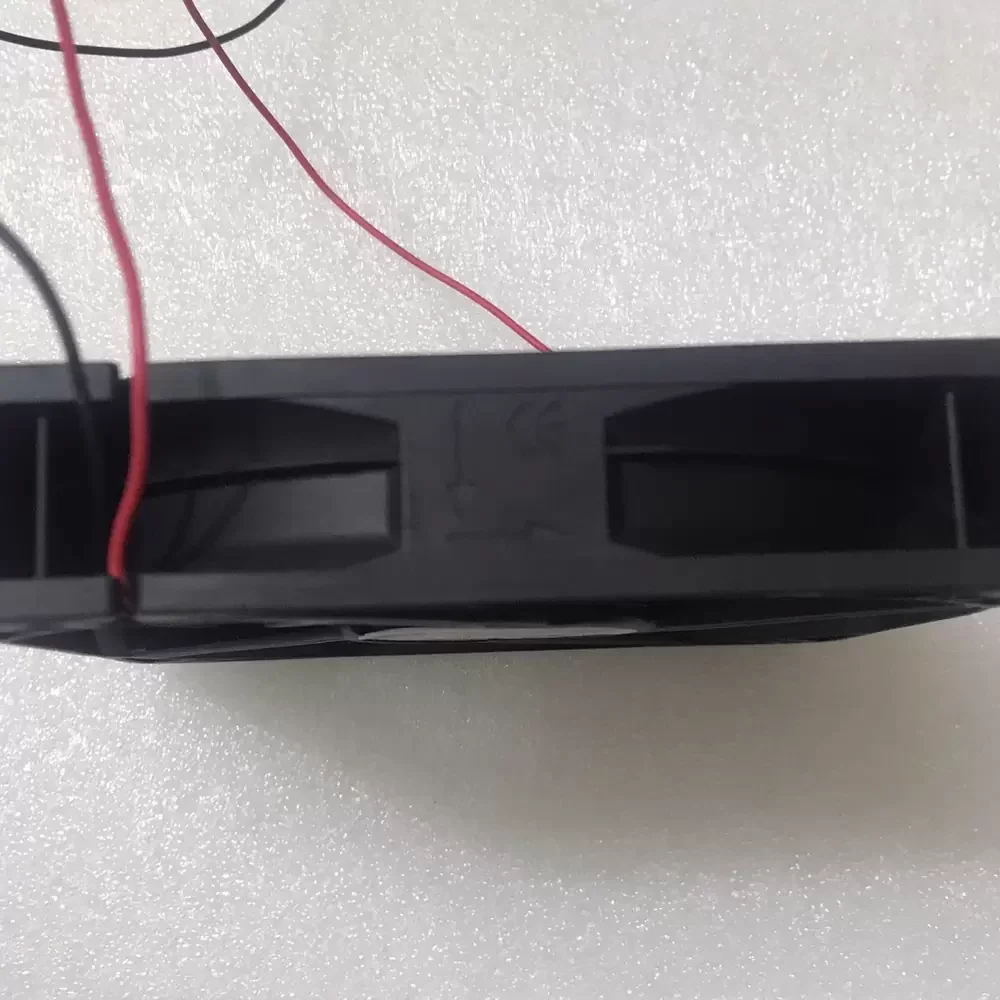

Termination: 2-Wire (Red +, Black -)
Wire Gauge: 24 AWG
Motor Protection: Impedance Protected, Reverse Polarity Protection
Dielectric Strength: 500VAC for 1 Minute
Direction of Rotation: Counter-clockwise viewed from front of fan blade
Mounting Orientation: Any
The EEC0252B1-000C-A99 is specifically designed for integration into high-density electronic enclosures where consistent airflow is paramount. Common applications include server rack cooling systems, industrial automation control panels, and telecommunications power supply units. The robust construction of the EEC0252B1-000C-A99 allows it to function effectively in CNC machinery and medical instrumentation, providing the necessary thermal regulation to prevent component overheating and ensure system reliability in 24/7 operational environments.
