Description

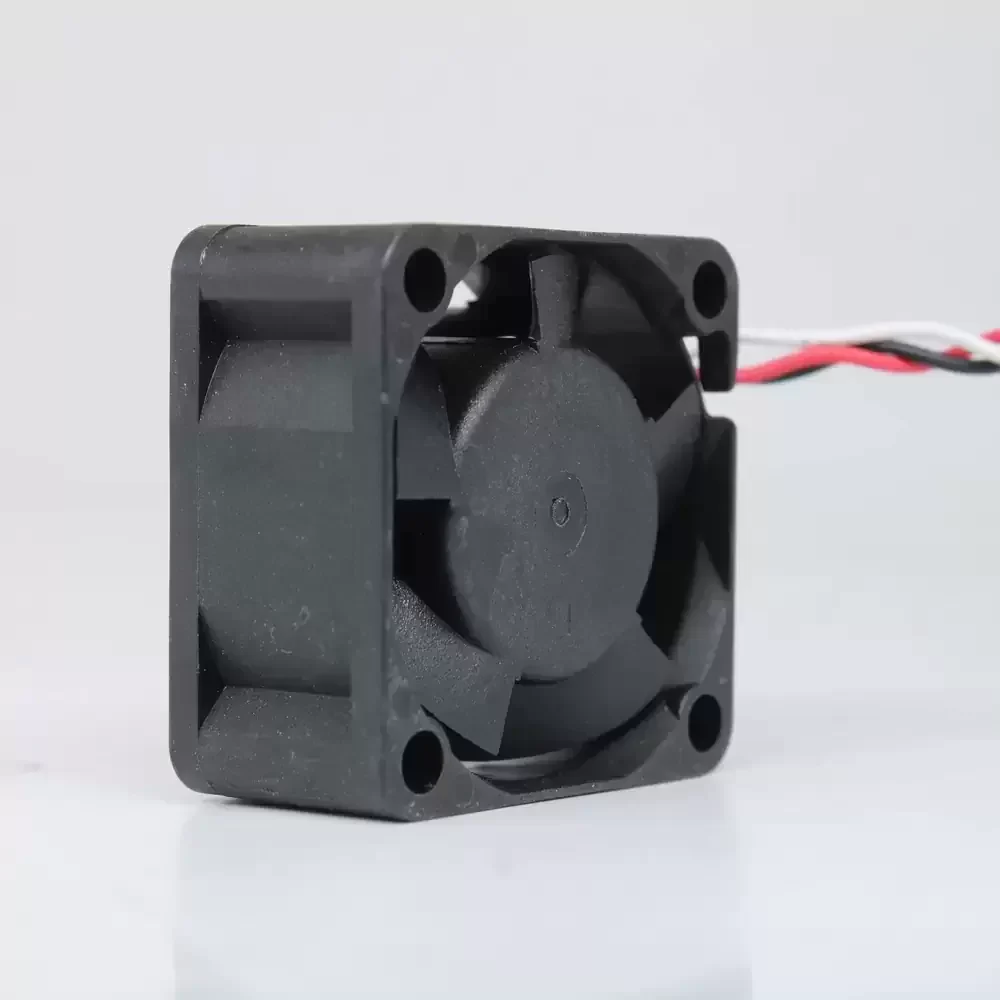

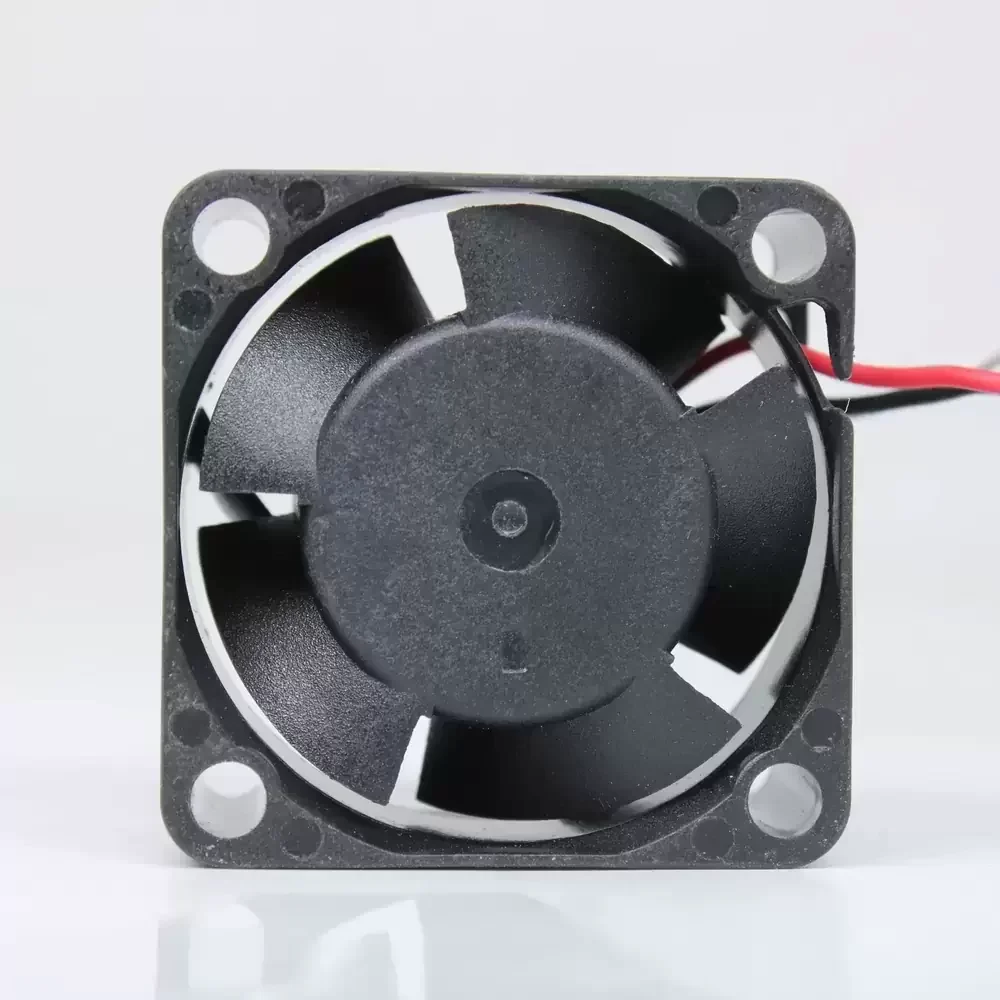

The Sunon EF40201BX-Q18C-F99 is a precision-engineered DC Axial Fan designed for high-density thermal management applications. Utilizing advanced motor technology and a robust bearing architecture, this unit minimizes thermal impedance while maintaining exceptional structural rigidity under continuous operation. The aerodynamic blade design optimizes airflow efficiency, delivering a high static pressure to airflow ratio essential for restricted environments. Engineered for reliability, the EF40201BX-Q18C-F99 ensures consistent cooling performance, making it an ideal solution for critical electronic components requiring stable thermal dissipation.
Model Number: EF40201BX-Q18C-F99
Brand: Sunon
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 6.0 – 13.8 VDC
Rated Current: 0.12 A
Power Consumption: 1.44 W
Rated Speed: 7800 RPM
Bearing Type: 2-Ball Bearing
Max. Air Flow: 10.8 CFM (18.35 m³/h / 0.30 m³/min)
Max. Static Pressure: 0.26 inH₂O (6.60 mmH₂O / 64.72 Pa)
Dimensions: 40x40x20mm
Weight: 31.0 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 28.5 dB(A)
Speed Control: Tachometer Output (F Type)
Termination: 3-Wire Lead
Wire Gauge: 26 AWG
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP5X (Dust Protected)
Safety Certifications: UL, CUR, TUV
Motor Protection: Auto Restart / Polarity Protection
This high-performance cooling solution is specifically calibrated for deployment in network infrastructure hardware, including enterprise switches and server racks. The EF40201BX-Q18C-F99 excels in compact enclosures where efficient heat evacuation is paramount to prevent thermal throttling. Additionally, the EF40201BX-Q18C-F99 is suitable for industrial automation equipment, telecommunications power supplies, and precision medical instrumentation requiring reliable forced-air cooling.
