Description

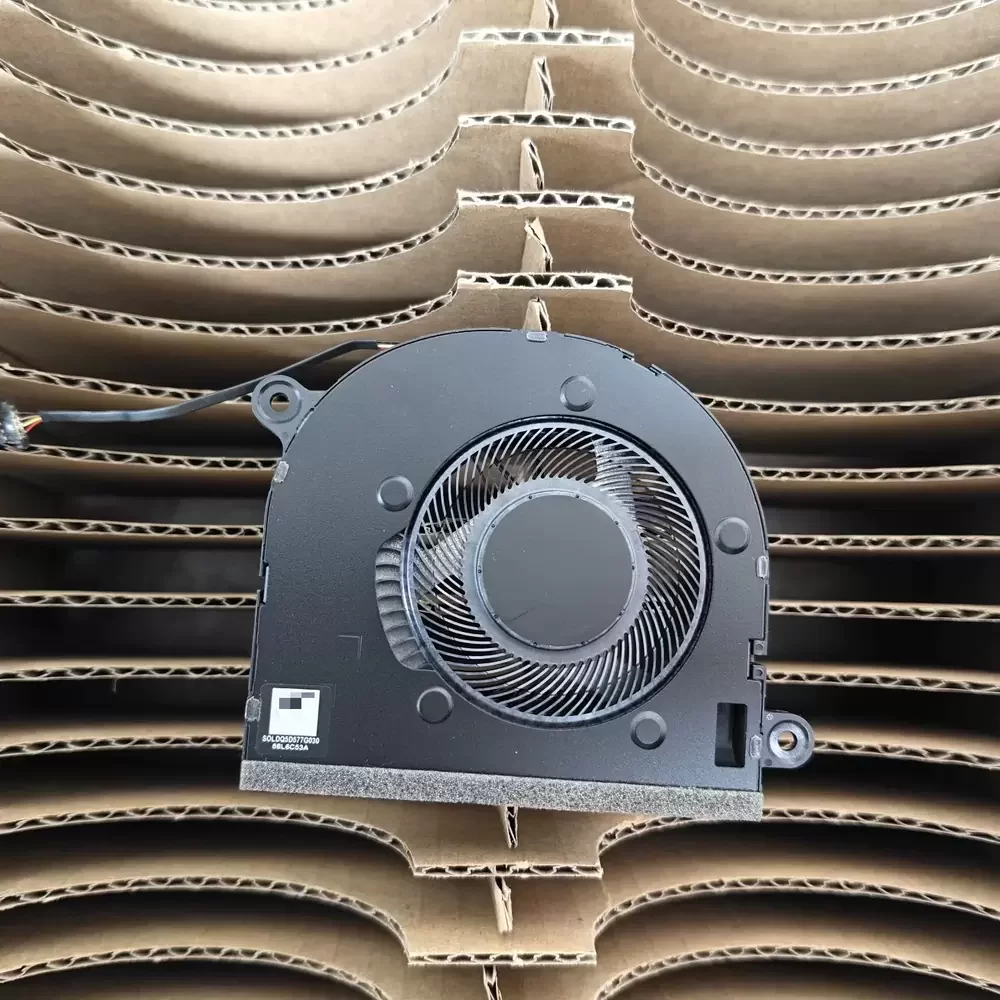

Sunon EG50060S1-1C270-S9C is a 5VDC 50x60x6mm Centrifugal Blower optimized for high-density thermal dissipation in constrained enclosures. The integrated 4-wire PWM control circuit enables precise RPM modulation, ensuring the 2.50W power draw translates into targeted airflow that prevents localized heat soak in mobile computing environments. By maintaining a consistent static pressure profile, this 50x60x6mm 5VDC Centrifugal Blower overcomes the impedance of dense copper heat pipe fins. The specialized impeller geometry of this PWM Centrifugal Blower minimizes acoustic resonance while sustaining the 0.50A current flow required for rapid heat extraction during peak CPU/GPU thermal cycles.
Model Number: EG50060S1-1C270-S9C
Brand: Sunon
Product Type: Centrifugal Blower
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.50A
Power: 2.50W
Rated Speed: 4500 RPM
Bearing Type: MagLev / Vapo Bearing
Max. Air Flow: 4.8 CFM
Max. Static Pressure: 12.4 mmH2O
Dimensions: 50x60x6mm
Weight: 25g
Life Expectancy: 50,000 Hours at 40C
Speed Control: PWM Signal
Feedback: Tachometer / Frequency Generator
Termination: 4-Wire Lead Wires
Connector: Micro-pitch 4-pin
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +70C
Protection: Auto Restart, Locked Rotor Protection
Applications & Industry Use Cases
1. Ultra-thin Laptops: Direct replacement fan for maintaining thermal equilibrium in slim chassis designs.
2. 1U Server Blades: Compact blower profile facilitates lateral heat expulsion in low-clearance environments.
3. Industrial Tablets: Prevents processor throttling by providing penetrating airflow through internal heat sinks.
4. Embedded NUC Systems: High static pressure ensures efficient cooling for micro-form factor industrial PCs.
5. Telecom Edge Routing: Reliable 5VDC cooling for localized hotspots on high-speed networking PCBs.
