Description

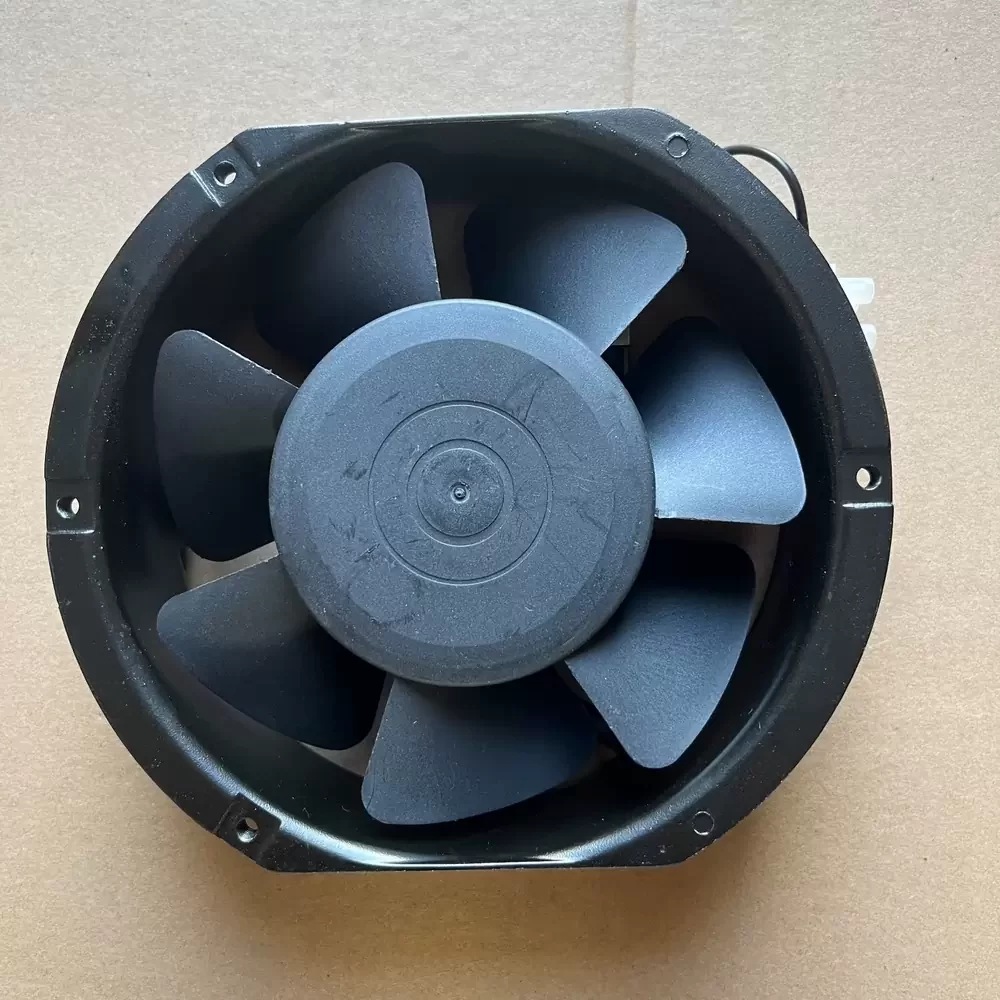

LINKWELL F2E-150S-230 is a 230VAC 150mm Axial Fan optimized for high-density thermal management in industrial enclosures. Engineered with a robust shaded-pole motor and a precision-aligned sleeve bearing architecture, this unit minimizes thermal impedance within congested cabinet environments. The aerodynamic design features a die-cast aluminum housing for superior structural rigidity and heat dissipation. Operating at a rated power of 38W and reaching speeds up to 3000 RPM, it delivers consistent static pressure to overcome airflow resistance. This model is a reliable solution for maintaining optimal operating temperatures in sensitive electronic assemblies and power distribution units.
Model Number: F2E-150S-230
Brand: LINKWELL
Product Type: Axial Fan
Rated Voltage: 230 VAC
Voltage Range: 220 – 240 VAC
Rated Current: 0.22 A
Power: 38 / 36 W
Rated Speed: 2700 / 3000 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 160 CFM (272 m³/h / 4.53 m³/min)
Max. Static Pressure: 12.0 mmH₂O (117.7 Pa / 0.47 inH₂O)
Dimensions: 150 x 150 x 50 mm
Weight: 900 g
Life Expectancy: 30,000 Hours
Noise Level: 50 dB(A)
Housing Material: Die-cast Aluminum
Blade Material: Thermoplastic UL94V-0

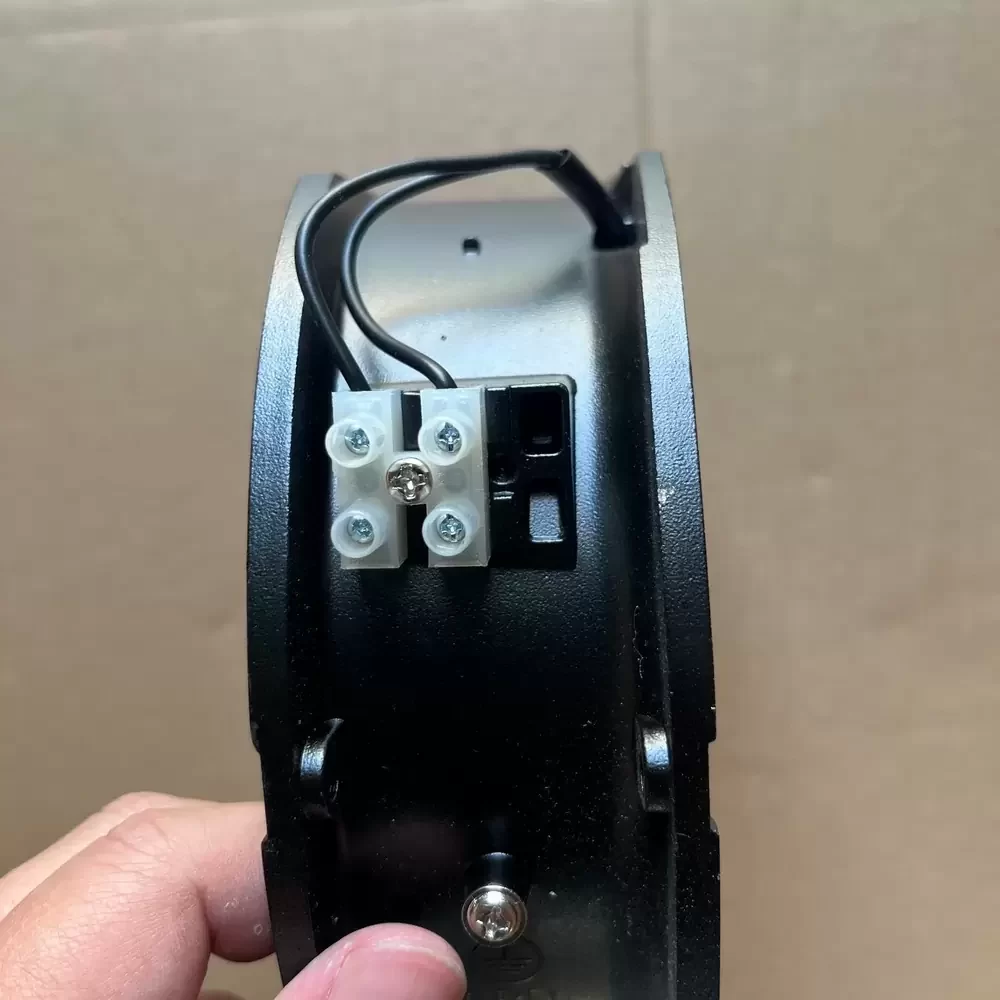

Termination: Lead Wires
Operating Temperature: -10 to +70 C
Insulation Class: B
Protection: Impedance Protected
F2E-150S-230 Applications
1. Industrial Control Cabinets: High static pressure allows for efficient heat extraction in densely packed VFD and PLC enclosures, serving as a critical replacement fan for maintaining system uptime.
2. Power Distribution Units: The robust metal frame and high-wattage motor provide the necessary durability for continuous cooling in heavy-duty electrical switchgear.
