Description

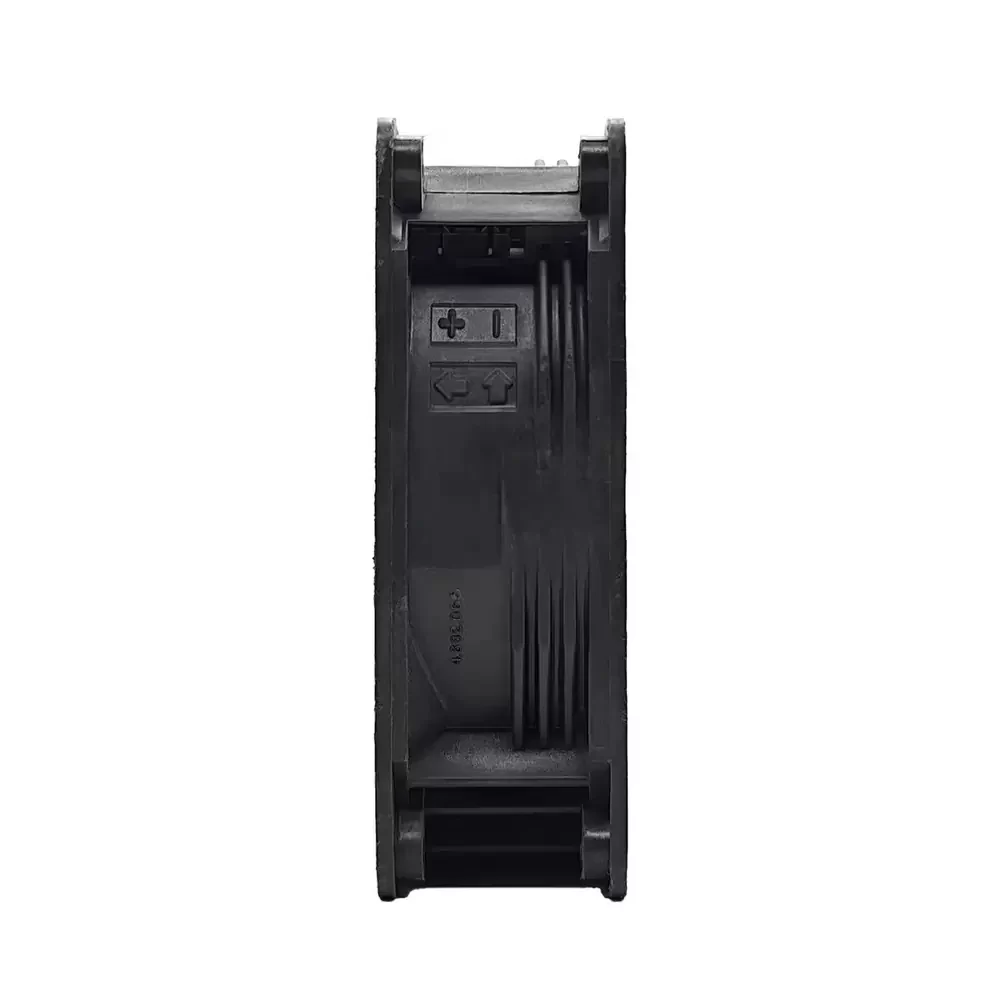

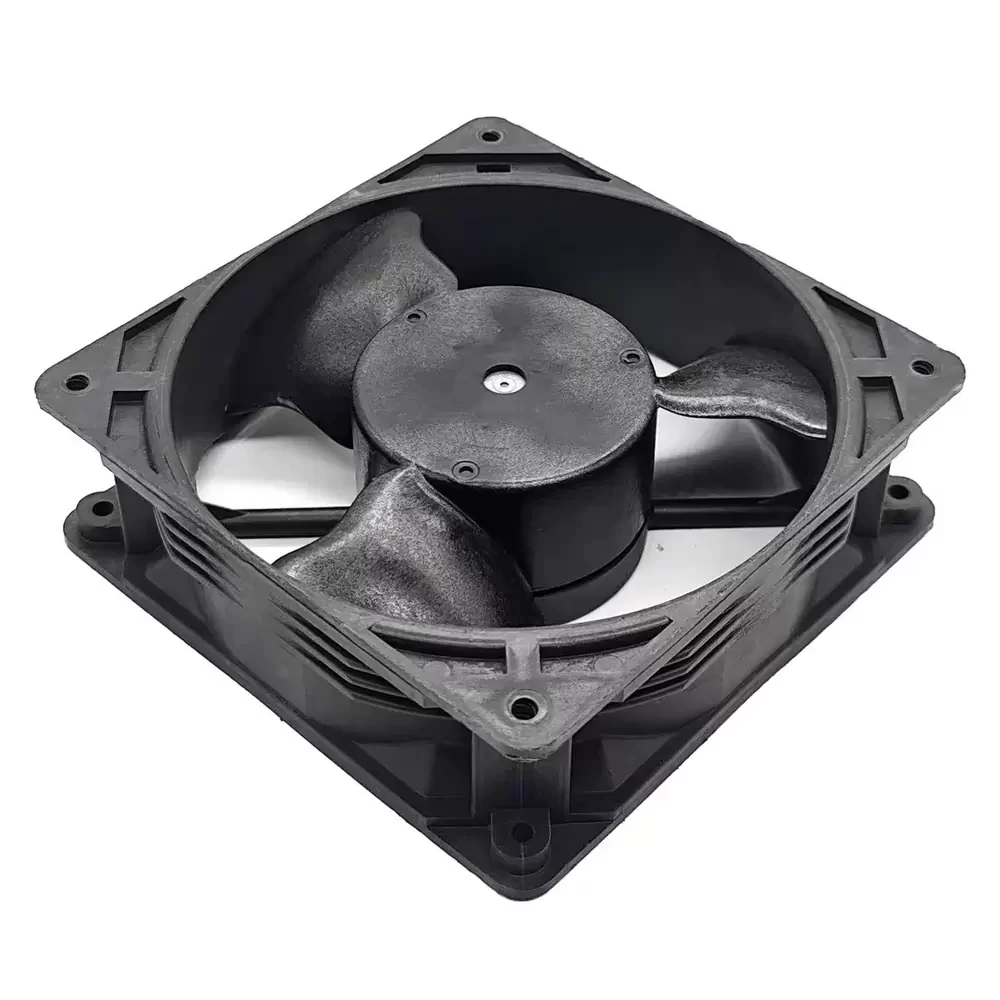

Nidec TA450DC B33534-55ALC1 is a 24VDC 120x120x38mm Axial Fan optimized for high-density thermal management in industrial enclosures. This BetaV series component utilizes a sophisticated dual ball bearing architecture to minimize thermal impedance and ensure long-term structural rigidity under continuous operation. Engineered with a high-efficiency DC motor, it draws 0.45A while delivering significant static pressure to overcome internal system resistance. The aerodynamic blade profile is specifically tuned to balance high-volume airflow with acoustic precision, making it a reliable solution for mission-critical cooling. This unit provides a robust 10.8W power rating, ensuring stable thermal regulation for sensitive electronic components.
Model Number: TA450DC B33534-55ALC1
Brand: Nidec
Product Type: Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.45 A
Power: 10.8 W
Rated Speed: 3200 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 105.0 CFM (178.4 m³/h)
Max. Static Pressure: 8.6 mmH₂O (84.3 Pa)
Dimensions: 120 x 120 x 38 mm
Weight: 270 g
Life Expectancy: 70,000 hours at 40°C
Noise Level: 48.0 dB(A)
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 2 Lead Wires
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
TA450DC Applications
1. Industrial Control Cabinets: The 38mm depth and high static pressure make it an ideal replacement fan for overcoming the high impedance of densely packed VFD and PLC enclosures.
2. Server and Storage Arrays: Optimized for 120mm mounting points in 4U rackmount chassis where consistent airflow is required to prevent HDD thermal throttling.
3. Power Supply Cooling: High-reliability dual ball bearings provide the necessary longevity for integration into heavy-duty industrial power converters and UPS systems.
