Description

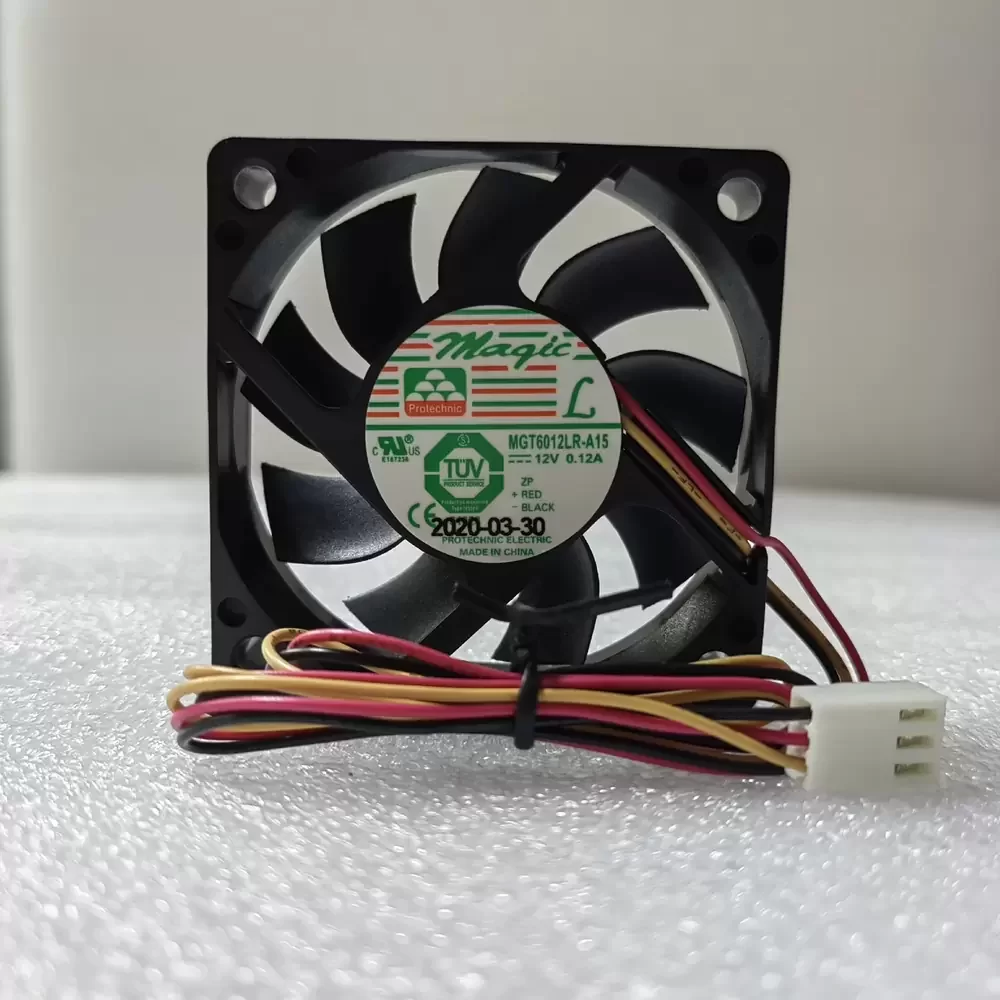

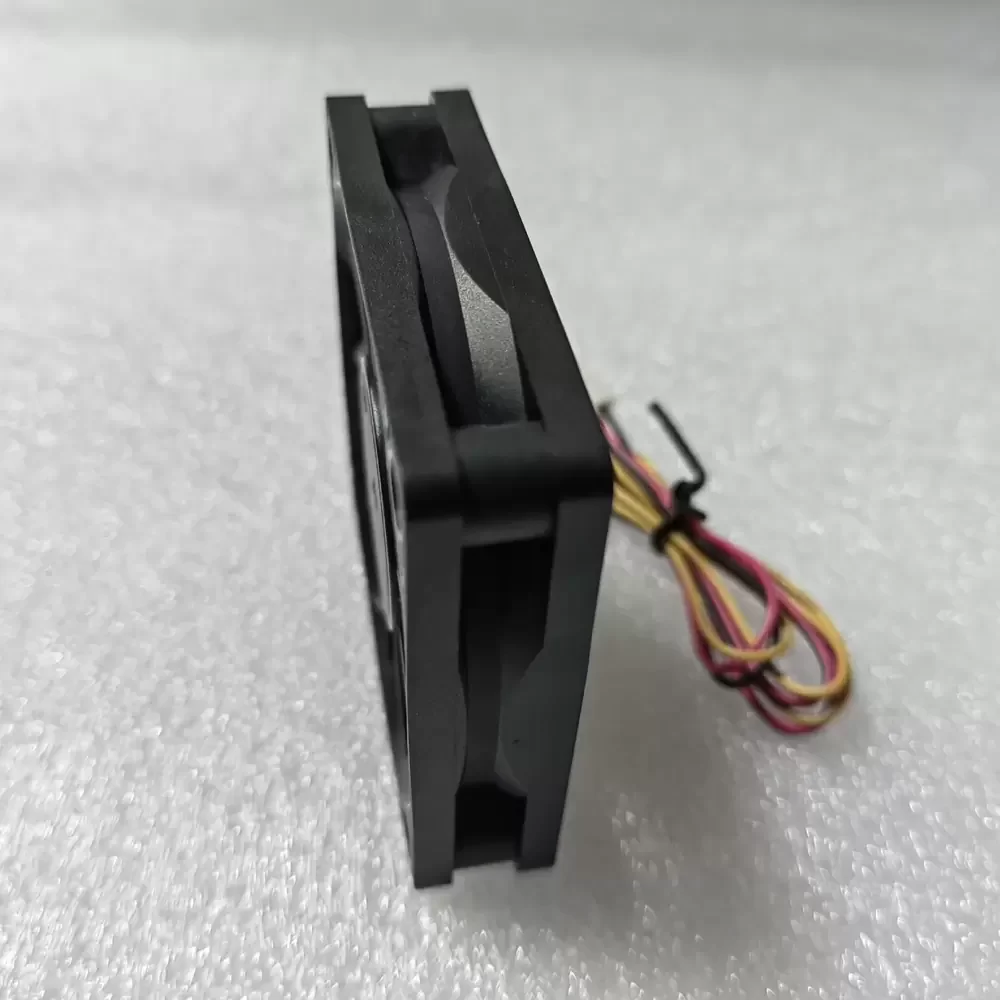

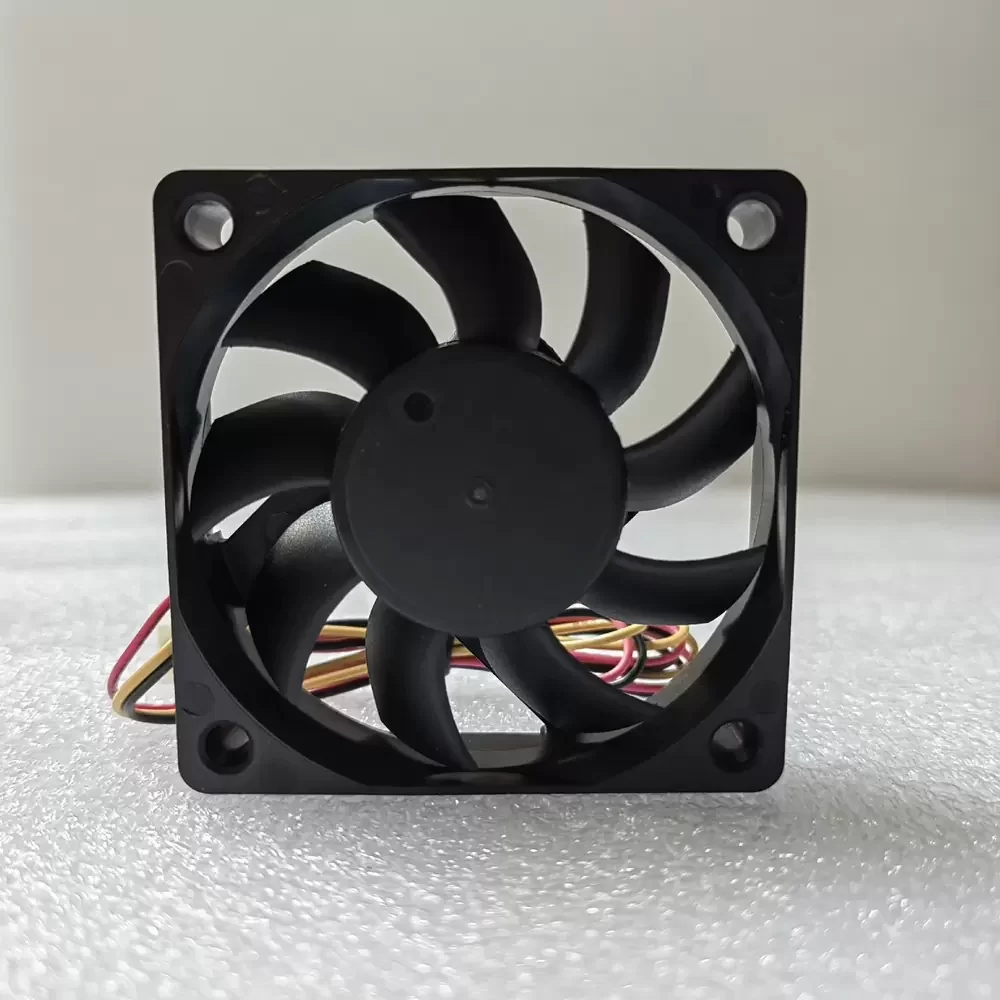

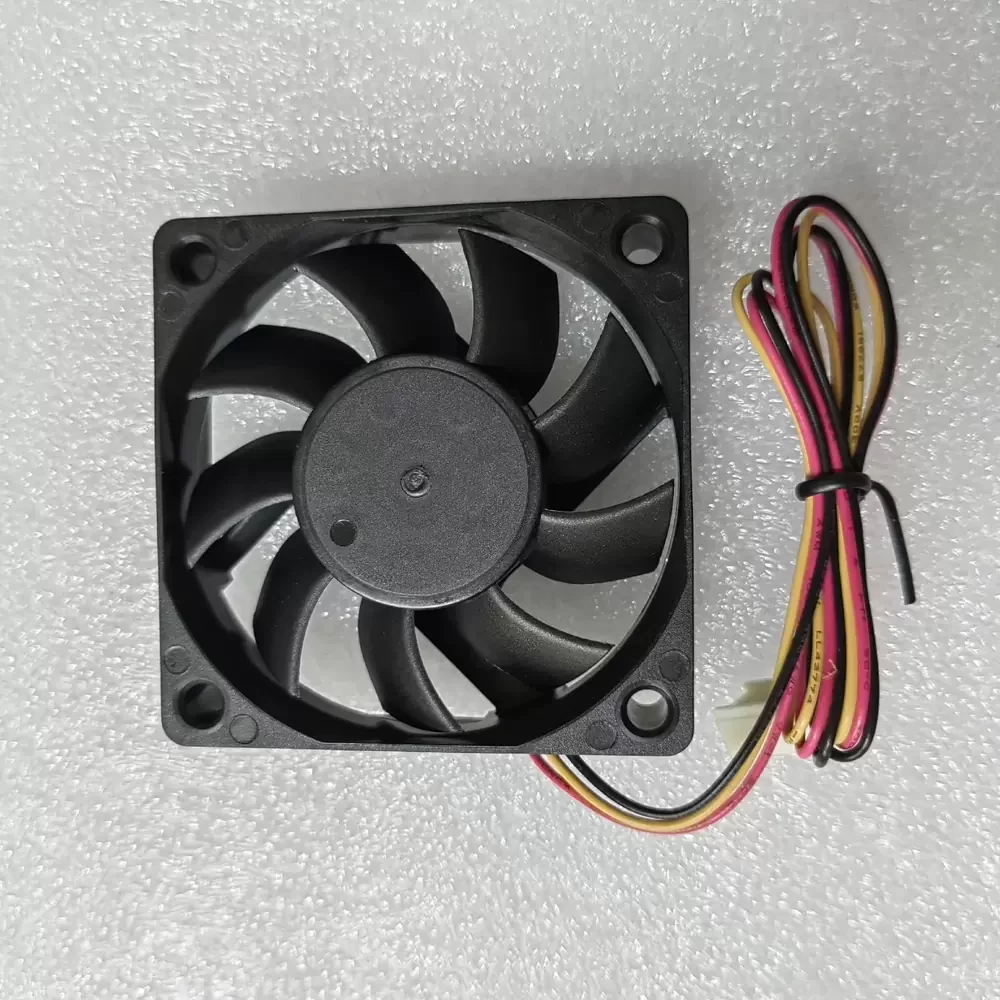

The Magic MGT6012LR-A15 is a compact DC axial fan designed for reliable thermal management in electronic enclosures. With a 60mm footprint and a slim 15mm profile, it delivers consistent airflow while maintaining low power consumption. This unit operates at 12VDC and utilizes a durable bearing system to ensure longevity in continuous operation environments, making it an excellent choice for replacing OEM fans in various industrial and consumer electronics.
Manufacturer: Magic (Protechnic Electric)
Model Number: MGT6012LR-A15
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Operating Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.12 A
Power Consumption: 1.44 W
Dimensions: 60 x 60 x 15 mm
Bearing Type: Rifle / Sleeve Bearing
Nominal Speed: 3500 RPM
Max. Air Flow: 16.5 CFM (28.0 m³/h / 0.47 m³/min)
Max. Static Pressure: 2.8 mmH₂O (27.4 Pa / 0.11 inH₂O)
Noise Level: 26.0 dBA
Termination: 3-Wire Leads
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10 to +70 °C
Weight: 45 g
The MGT6012LR-A15 is specifically engineered for space-constrained electronic applications requiring reliable heat dissipation. It is widely utilized in server chassis, network cabinets, and industrial automation control panels where maintaining optimal operating temperatures is critical. Additionally, this cooling fan serves as an effective replacement component for power supply units, small form factor PC cases, and telecommunications equipment, ensuring stable performance by preventing thermal throttling in sensitive circuitry.
