Description

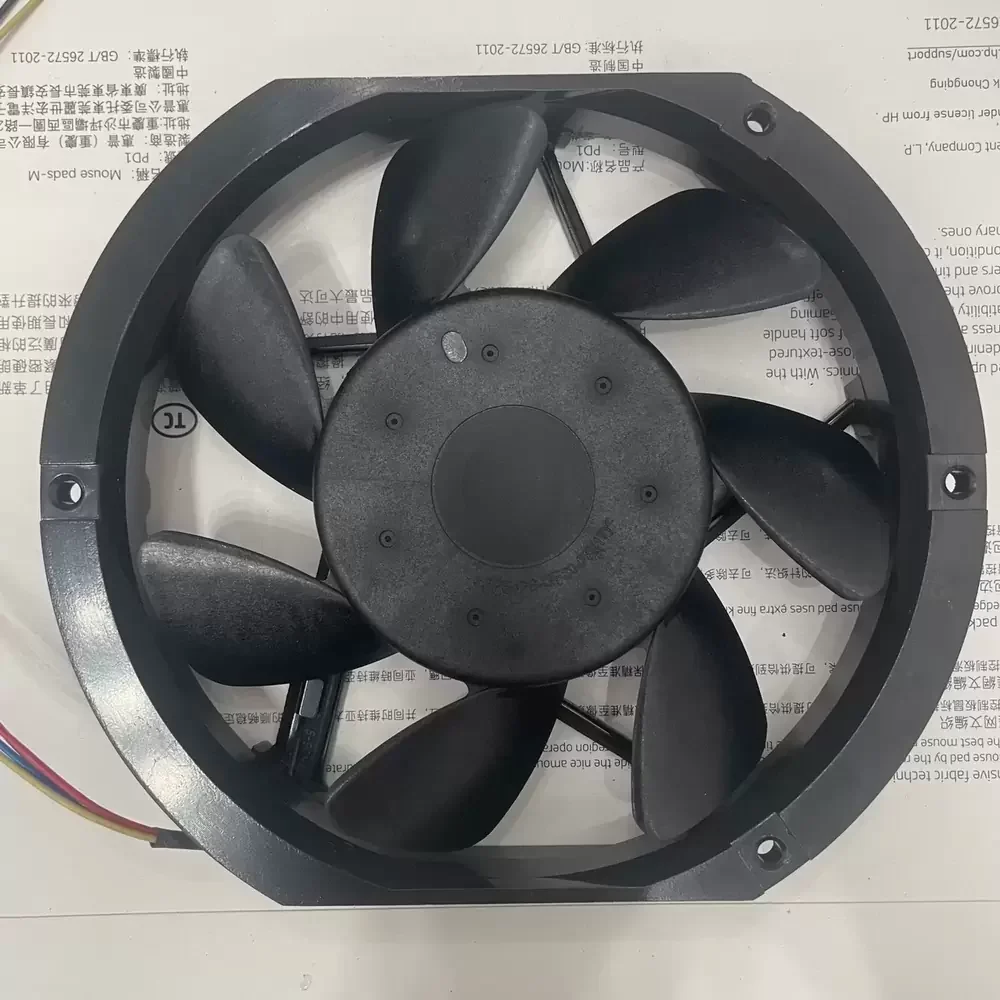

The Delta FB1548VH-C-C7U is a precision-engineered DC Axial Fan designed for high-demand industrial thermal management applications. Utilizing advanced motor technology and a robust bearing architecture, this unit operates efficiently at 48VDC to deliver superior airflow while minimizing thermal impedance. The fan features a specialized aerodynamic blade design that enhances static pressure capabilities, ensuring effective cooling even in densely packed enclosures. Constructed with structural rigidity in mind, the FB1548VH-C-C7U maintains stability under continuous high-speed operation. Its 4-wire interface allows for precise PWM speed control and tachometer signal monitoring, making it a critical component for systems requiring dynamic thermal regulation and high reliability.
Model Number: FB1548VH-C-C7U
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 28.0 – 56.0 VDC
Rated Current: 0.90 A
Power: 43.2 W
Rated Speed: 3800 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 235.0 CFM (399.2 m³/h / 6.65 m³/min)
Max. Static Pressure: 18.5 mmH₂O (181.4 Pa / 0.73 inH₂O)
Dimensions: 172 x 150 x 25.4 mm
Weight: 380 g
Life Expectancy: 70,000 Hours at 40°C
Termination: 4-Wire Leads (PWM/Tach)
Housing Material: Die-cast Aluminum / Thermoplastic
Impeller Material: Plastic UL94V-0
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Ingress Protection: IP55 (Optional)
Origin: Thailand
This industrial-grade cooling solution is specifically engineered for mission-critical environments such as industrial control chassis, server racks, and telecommunications infrastructure. The FB1548VH-C-C7U is particularly effective in scenarios requiring high volumetric airflow to dissipate heat from power-dense components. By integrating the FB1548VH-C-C7U into automation equipment and power supply units, operators can ensure sustained system performance and longevity, leveraging its robust design to withstand the rigors of continuous industrial operation.
