Description

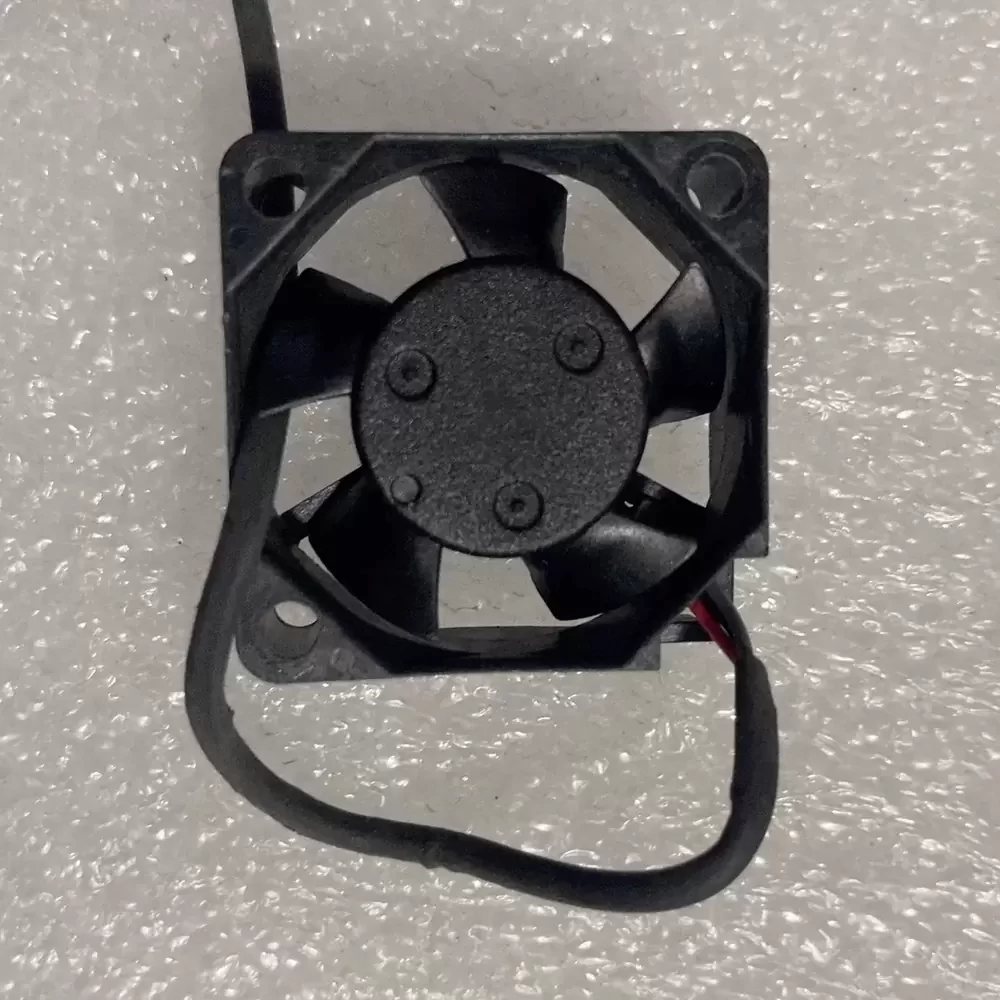

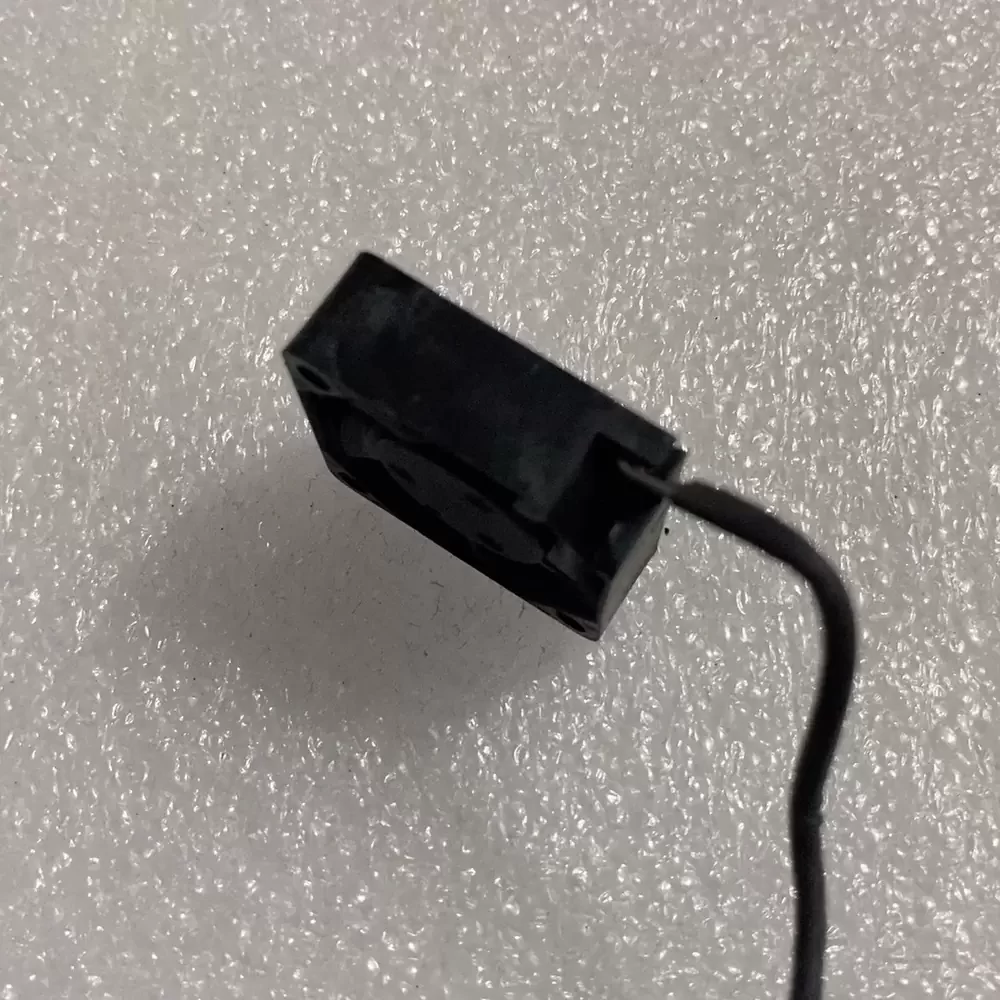

The ICFAN F3010AN-12VSV is a compact DC axial fan engineered for high-density thermal management applications requiring a balance between airflow performance and acoustic discretion. Designed with an advanced motor structure, this unit operates on a 12VDC platform, drawing 0.16A to generate significant static pressure relative to its 30mm frame size. The fan features a robust thermoplastic housing and an optimized impeller geometry that reduces turbulence-induced noise while maintaining consistent volumetric flow. Its industrial-grade construction ensures structural rigidity and reliable operation, making it an ideal solution for mitigating thermal impedance in restricted electronic enclosures where standard cooling solutions may fail.
Model Number: F3010AN-12VSV
Brand: ICFAN
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Rated Current: 0.16 A
Power Consumption: 1.92 W
Dimensions: 30x30x10mm
Frame Size: 30mm
Frame Thickness: 10mm
Termination: 2-Wire Lead
Connector Type: Stripped Leads / Standard 2-Pin
Bearing Type: Precision Bearing System
Noise Profile: Low Acoustic Noise
Housing Material: Thermoplastic (UL94V-0)
Blade Material: Thermoplastic (UL94V-0)
Mounting Orientation: Any
Application: Industrial / Electronic Cooling
The F3010AN-12VSV is specifically calibrated for integration into compact electronic assemblies such as 3D printer nozzle cooling systems, where precise airflow is required to prevent filament jamming. Additionally, the F3010AN-12VSV is widely utilized in external hard drive enclosures and compact audio host units, providing essential heat dissipation to protect sensitive components from thermal degradation during continuous operation.
