Description

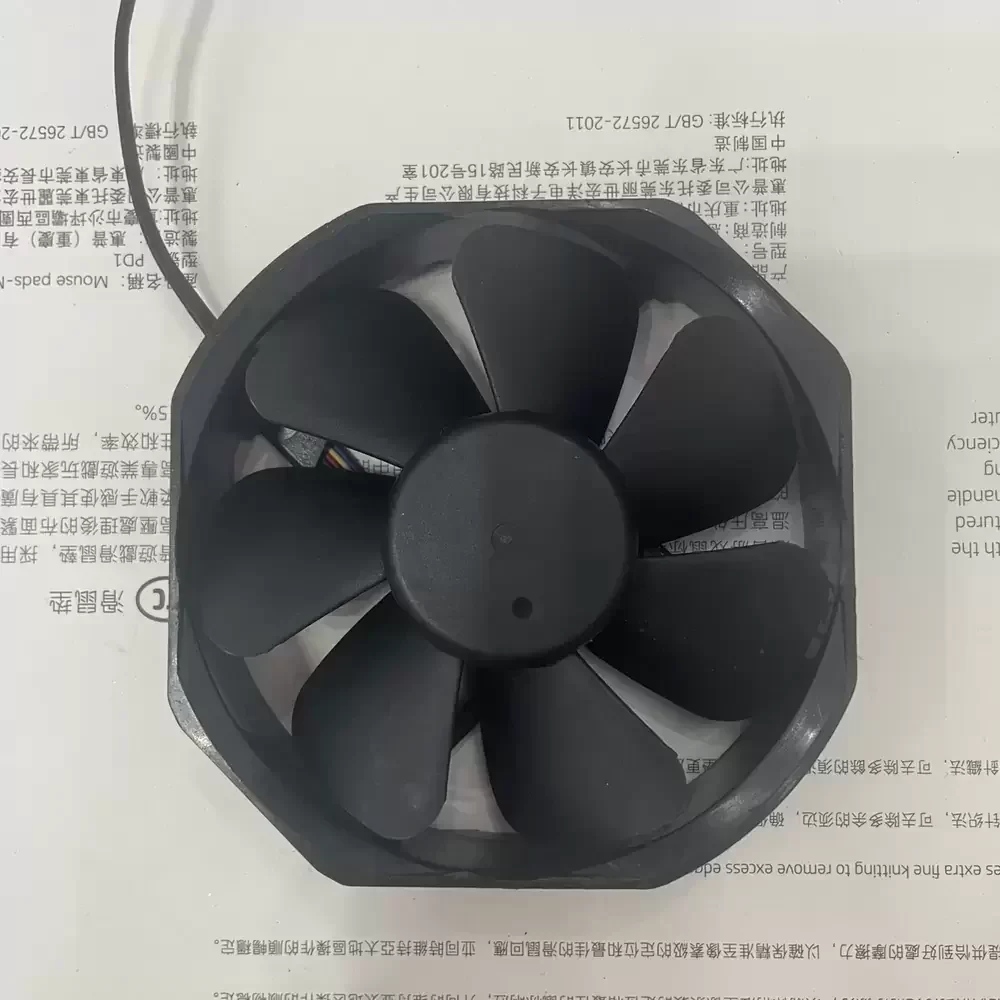

The Cooler Master FA09225M12LPF is a precision-engineered Axial Fan designed for optimal thermal management in high-density electronic enclosures. Utilizing advanced DC motor technology coupled with a specialized bearing architecture, this unit ensures sustained rotational stability and reduced frictional coefficients during operation. The aerodynamic impeller design minimizes turbulence-induced noise while maximizing volumetric airflow, resulting in a superior thermal impedance profile. Constructed with high-grade thermoplastic materials, the frame offers exceptional structural rigidity, making it suitable for continuous operation in demanding environments requiring precise Pulse Width Modulation (PWM) speed regulation.
Model Number: FA09225M12LPF
Brand: Cooler Master
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.45 A
Power: 5.40 W
Rated Speed: 3200 RPM
Bearing Type: Rifle Bearing
Max. Air Flow: 58.4 CFM (99.2 m³/h / 1.65 m³/min)
Max. Static Pressure: 4.10 mmH₂O (40.2 Pa / 0.16 inH₂O)
Dimensions: 92 x 92 x 25 mm
Weight: 105 g
Life Expectancy: 40,000 Hours @ 40°C
Speed Control: 4-Wire PWM
Ingress Protection: IP40
Insulation Class: Class A
Noise Level: 36.5 dB(A)
Housing Material: PBT Plastic (UL94V-0)
Blade Material: PBT Plastic (UL94V-0)
Termination: 4-Pin Connector with Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Protection: Locked Rotor Protection, Polarity Protection
This cooling solution is engineered for critical heat dissipation in compact computing environments and industrial machinery. The FA09225M12LPF is frequently integrated into mid-tower server chassis, workstation CPU cooling arrays, and telecommunications equipment racks where space is constrained but airflow requirements are stringent. Additionally, the FA09225M12LPF serves as a reliable component in CNC control cabinets and medical instrumentation, ensuring sensitive electronics remain within safe operating temperature ranges through its efficient PWM-controlled airflow delivery.
