FFB1212SH-S79V Delta 12VDC 1.24A 120mm Axial Cooling Fan

Description

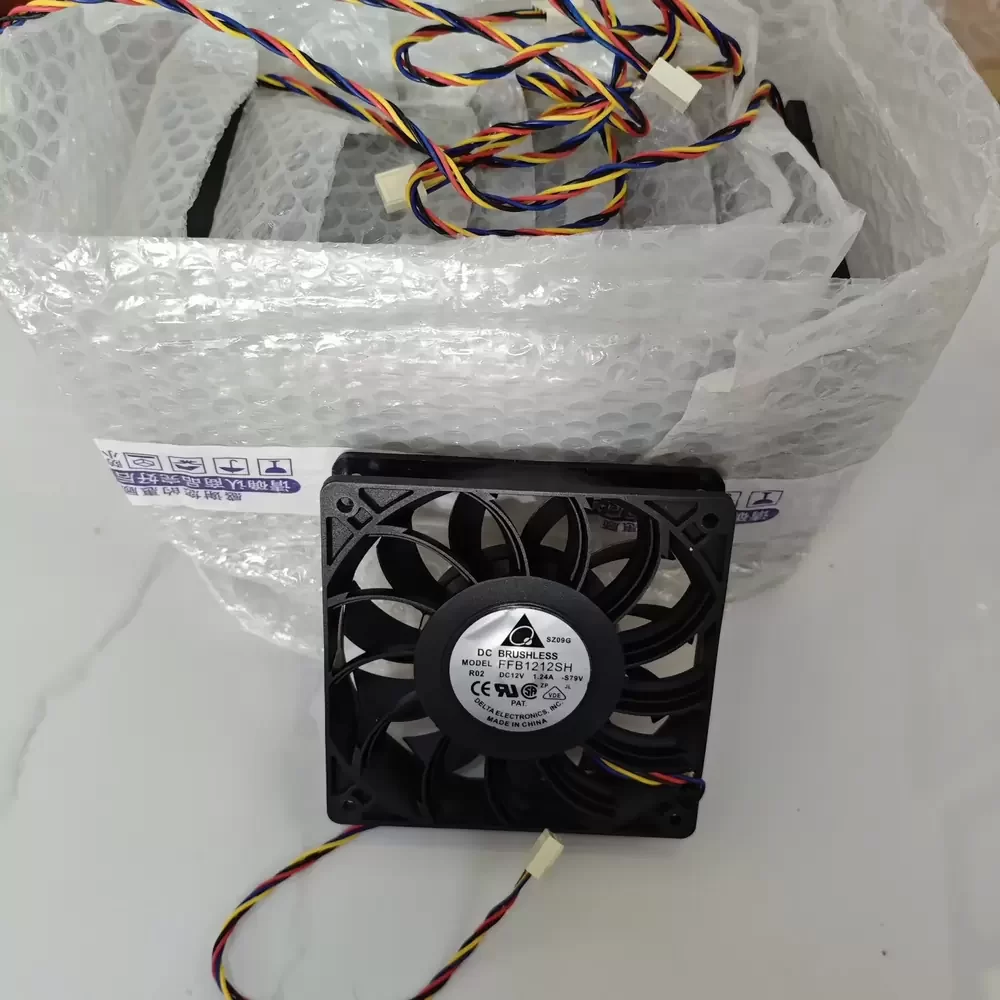

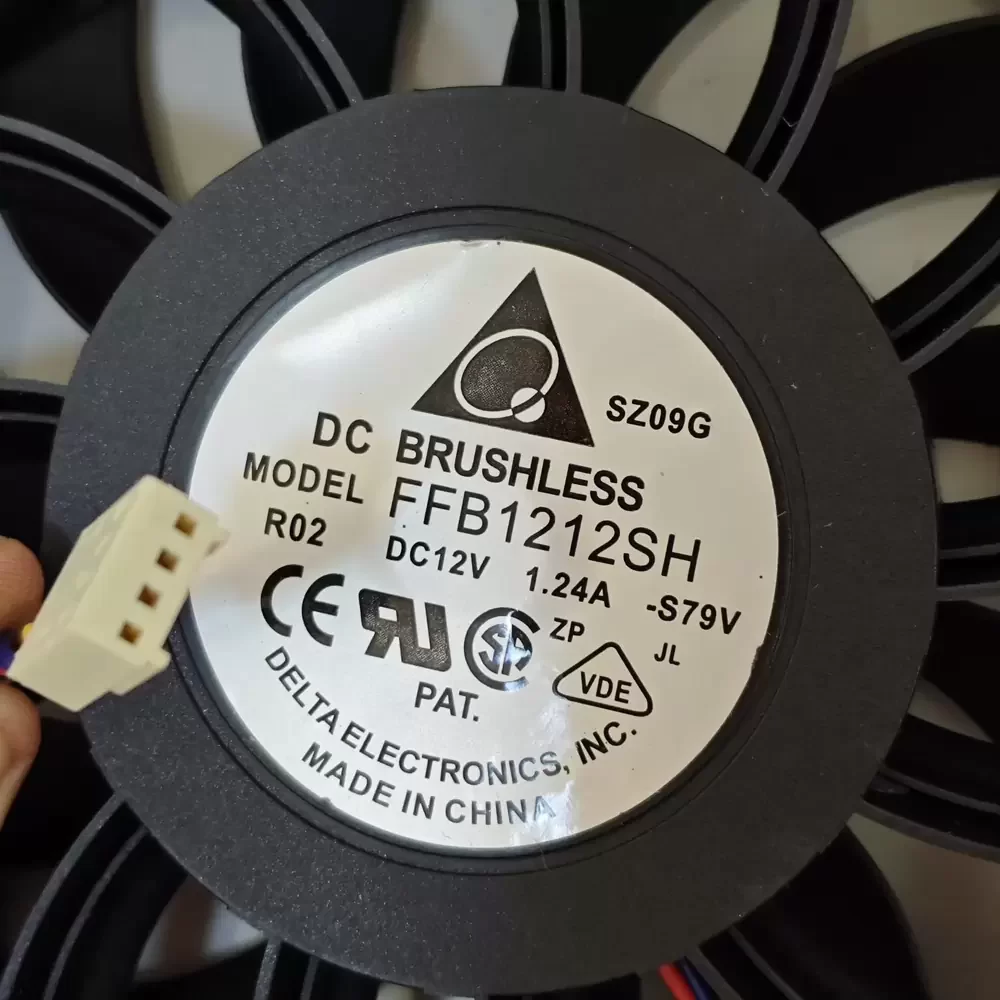

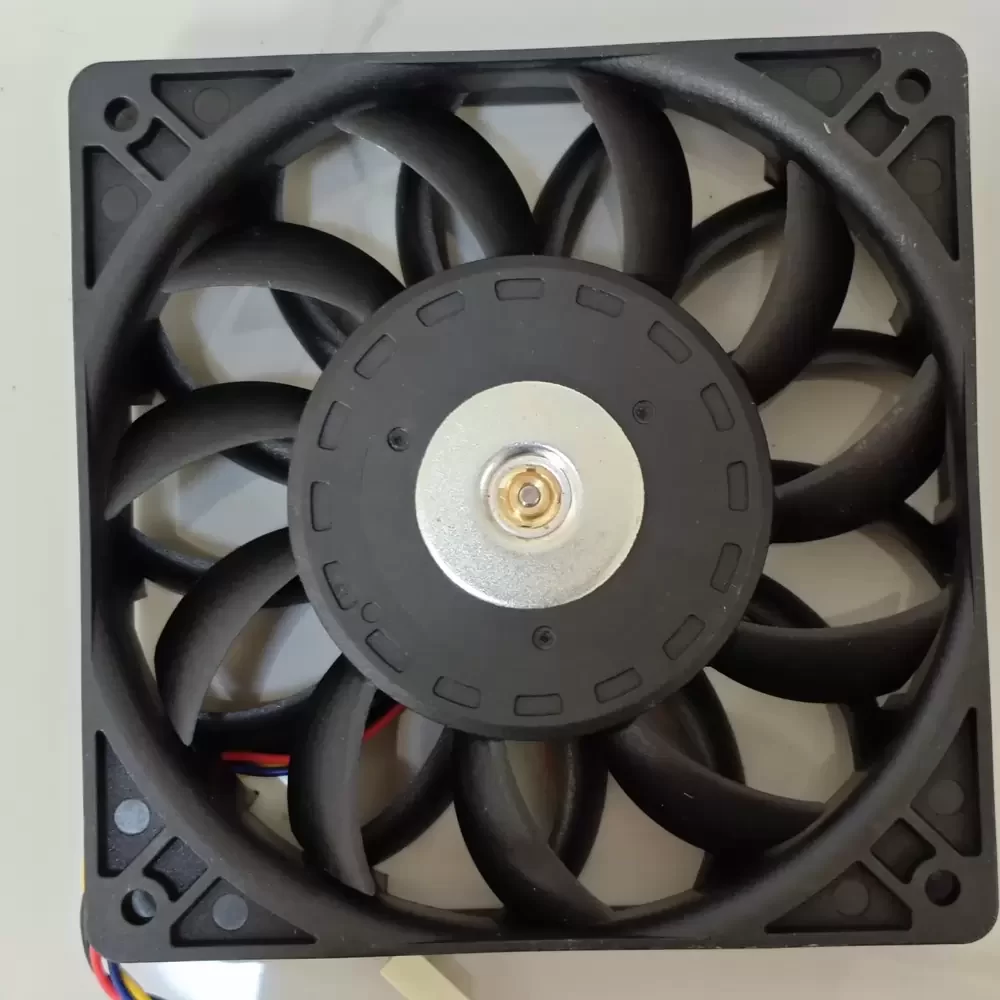

Delta FFB1212SH-S79V 120 x 120 x 25.4 mm 12 VDC 140.16 CFM axial cooling fan. Constructed with a rigid plastic housing and an 11-blade impeller, this unit utilizes a dual ball bearing mechanism to sustain a rotational speed of 3700 RPM. The 4-wire interface provides power and locked rotor sensor feedback, drawing a maximum of 1.24 A and 12.36 W of power. It generates a static pressure of 10.64 mmH2O and operates at a noise level of 54.3 dB(A), weighing 205 g.

FFB1212SH-S79V Specifications
Model Number: FFB1212SH-S79V
Base Model: FFB1212SH
Brand: Delta Electronics
Product Category: DC Brushless Tubeaxial Fan
Nominal Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.2 VDC
Nominal Current: 1.03 A
Maximum Current: 1.24 A
Input Power: 12.36 W
Rotational Speed: 3700 RPM
Maximum Airflow: 140.16 CFM
Maximum Static Pressure: 10.64 mmH2O
Acoustic Noise: 54.3 dB(A)
Dimensions: 120 x 120 x 25.4 mm
Weight: 205 g
Bearing System: Dual Ball Bearing
Impeller Design: 11 Blades
Termination: 4-Wire Lead Wires
Sensor Type: Locked Rotor Sensor

FFB1212SH-S79V Applications
Primary applications include integration into high-density server racks, telecommunications base stations, and industrial CNC spindle cooling systems. Deployed within automated projection robots and heavy-duty power supply enclosures, this component provides forced convection for critical thermal management.
