Description

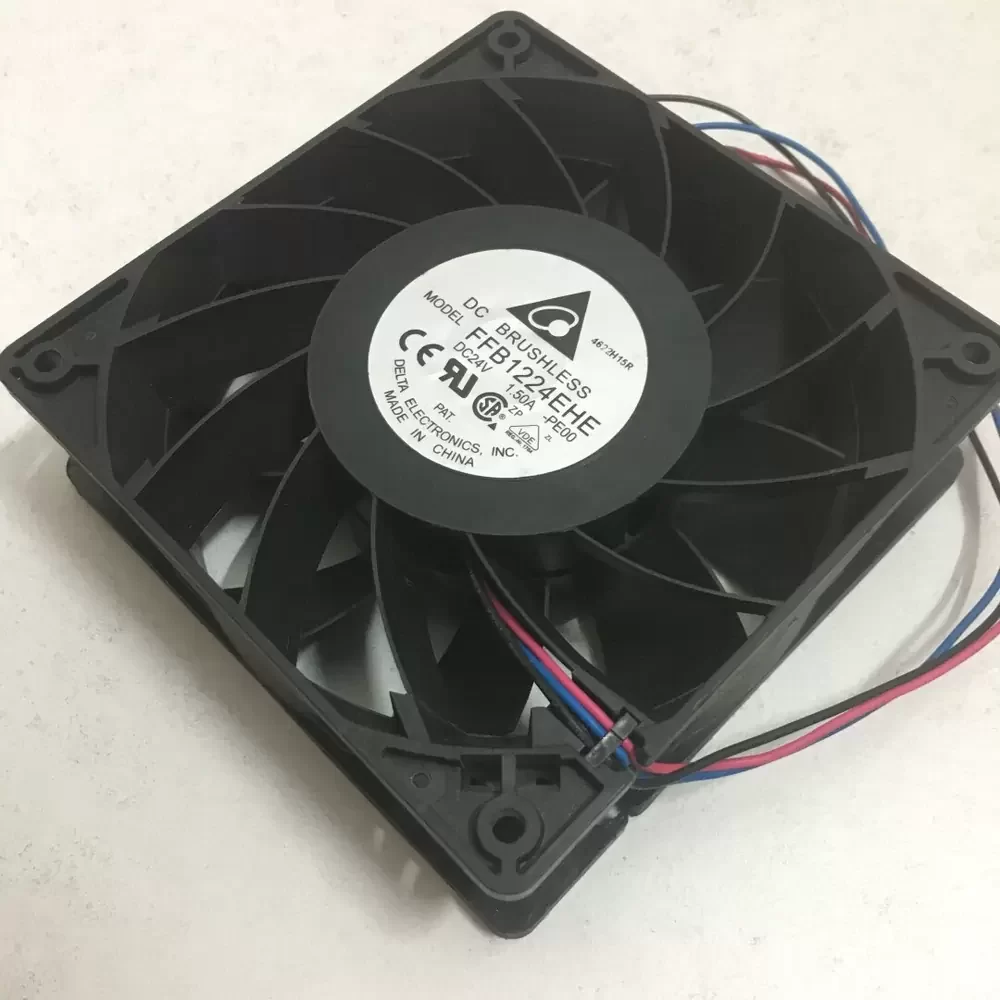

The Delta FFB1224EHE-PE00 is a high-performance Axial Fan engineered for demanding industrial thermal management. Utilizing a brushless DC motor architecture, this unit is designed to minimize thermal impedance in high-density enclosures. The structural rigidity of the 120mm frame ensures stability during high-velocity operation, while the precision dual ball bearing system provides a robust mechanical interface for extended service life. Its aerodynamic impeller design is optimized to deliver significant static pressure and volumetric airflow, making it an essential component for systems requiring rapid heat dissipation and consistent cooling under varying load conditions.
Model Number: FFB1224EHE-PE00
Brand: Delta Electronics
Product Type: Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 26.4 VDC
Rated Current: 1.50A
Power: 36W
Rated Speed: High Speed
Bearing Type: Dual Ball Bearing
Max. Air Flow: 200 CFM (5.7 m³/min)
Dimensions: 120x120x38mm
Termination: 3-Wire Lead
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Mounting Orientation: Any
This industrial cooling solution is primarily deployed in high-density server racks, telecommunications enclosures, and heavy-duty power supply units where the FFB1224EHE-PE00 can effectively mitigate heat soak. The FFB1224EHE-PE00 is also frequently integrated into CNC machinery and industrial automation cabinets to protect sensitive electronic components from thermal failure in rigorous 24/7 operating environments.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
